Home > Transmission & Actuator > Shaft Coupling > Jaw Coupling

Send Inquiry

Flexible Jaw Coupling, 30 x 35mm

$167.89

Plum jaw coupling for CNC machine, bore 8mm to 19mm, diameter 30mm, length 35mm, shaft sleeve made of stainless steel, good c

SKU: CHN-SC-GFCG-3035

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Flexible plum coupling size 30mm x 35mm, bore 6mm to 16mm, jaw coupling has the performance of compensating the relative offset of the two axes, shock absorption, wear resistance and buffering.

Specification

Model: CHN-SC-GFCG-3035
Rated Torque: 9.8 Nm
Eccentricity Allowed: 0.02mm
Bore: 6 to 16mm
Allowable Declination: 1∠°
Allowable Axial Deviation: ±0.60mm
Allowable Speed: 12000rpm
Static Torsional Stiffness: 72 Nm/rad
Moment of Inertia: 6.2 x 10^-6Nm
Bushing Material: 304 Stainless steel
Rubber Block Material: Polyurethane imported from Germany
Surface Treatment: Polished
Weight: 114g
Certificate: ISO9001, REACH, RoHS
Warranty: 12 Months

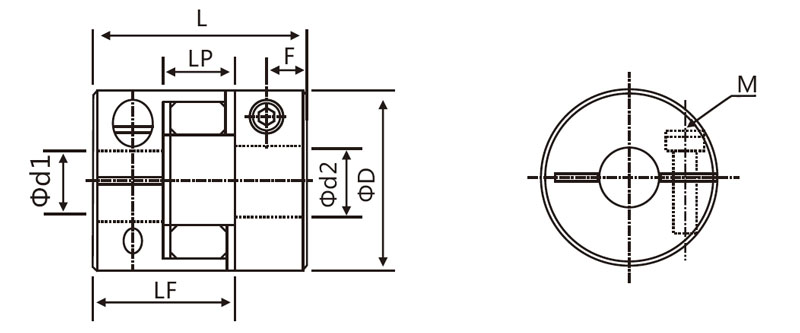

Plum Flexible Shaft Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size: 5-6-6.35-7-8-9-10-11-12-12.7-14-15-16
ΦD: 30
L: 35
LF: 22.5
LP: 10.9
F: 5.9
M: M4
Tightening Torque: 3.5 Nm

Tips: What is plum coupling?

Plum coupling is a widely used coupling, also known as claw coupling, which consists of two metal claw discs and an elastic body. The two metal claw discs are usually 45 steel, but aluminum alloys are also useful where load sensitivity is required. Its elastomer is usually composed of engineering plastics or rubber. The life of the elastomer is the life of the coupling. The life of the elastomer is 10 years. Since elastomers have the function of buffering and reducing vibrations, they are widely used in the case of strong vibrations. The ultimate temperature of the elastomer determines the operating temperature of the coupling, usually -35 to +80 degrees.
