Home > Transmission & Actuator > Shaft Coupling > Jaw Coupling

Send Inquiry

Flexible Jaw Coupling, 20 x 30mm

$89.98

Flexible jaw coupling for CNC machine tools, Φd20mm, length 30mm, bore 4mm to 10mm, plum-blossom coupling with simple structu

SKU: CHN-SC-GFCG-2030

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Plum coupling is made of high quality 304 stainless steel, Φd20mm, L 30mm, jaw coupling has good vibration damping, buffering and electrical insulation properties, widely used to connect CNC machine tools, engraving machines, servo motors and encoders.

Specification

Model: CHN-SC-GFCG-2030
Rated Torque: 4.2 Nm
Eccentricity Allowed: 0.02mm
Bore: 4 to 10mm
Allowable Declination: 1∠°
Allowable Axial Deviation: ±0.60mm
Allowable Speed: 17000rpm
Static Torsional Stiffness: 55 Nm/rad
Moment of Inertia: 1.1 x 10^-6Nm
Bushing Material: 304 Stainless steel
Rubber Block Material: Polyurethane imported from Germany
Surface Treatment: Polished
Weight: 43g
Certificate: ISO9001, REACH, RoHS
Warranty: 12 Months

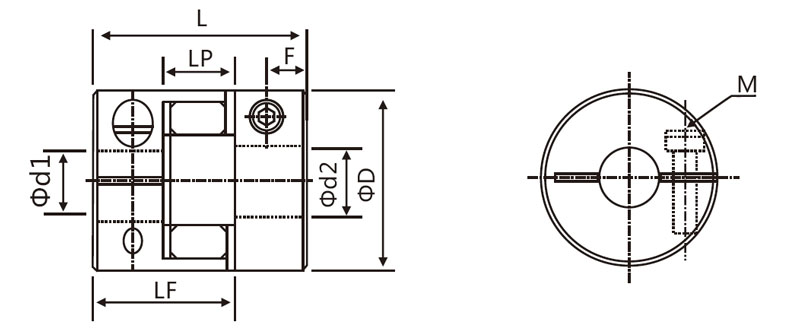

Plum Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size: 3-4-5-6-6.35-7-8-9-10
ΦD: 20
L: 30
LF: 19.1
LP: 8.6
F: 5.4
M: M3
Tightening Torque: 1.5 Nm

Tips: Advantages of plum blossom coupling
