Pneumatic Double Solenoid Valve, 5 Way, 12V/24V/110V/220V

5/2(3)-way double solenoid pneumatic valve is used to control the flow of the compressed air with supply voltage 12V DC, 24V DC, 110V AC and 220V AC, and widely applied in the industrial fields like chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles etc.

Specification

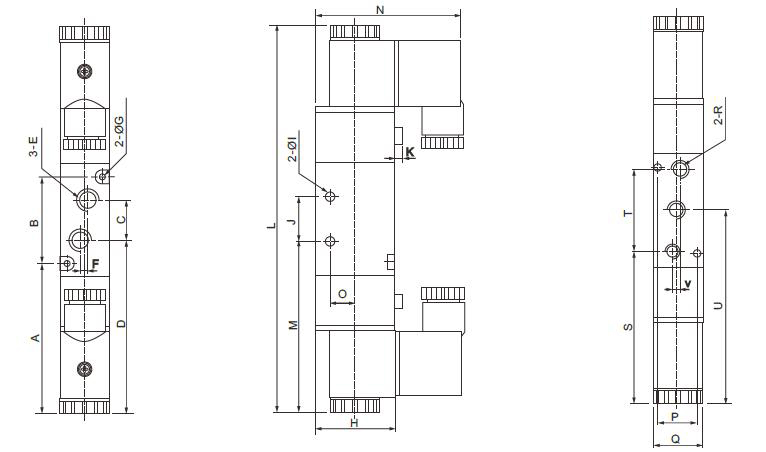

Dimensions
(body length unit = mm, port size unit = inch)

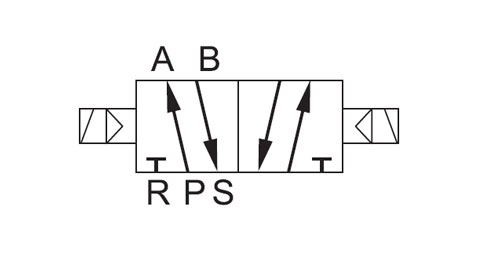

5/2-Way Double Solenoid Valve Symbol (Flow Diagram)
Tips: How does a direct-acting solenoid valve work?

The following is brief introduction of direct-acting solenoid valve.

• Working principle
  When the power is on, the solenoid coil generates the electromagnetic force to lift the closure member from the valve seat to open the valve. When the power is cut off, the electromagnetic force disappears and the spring presses the closure member on the valve seat to close the valve.
• Characteristics
  It can work normally in the vacuum, negative pressure and zero pressure. However, the diameter normally doesn’t exceed 25mm.
