With working voltage of DC 12 volt, DC 24 volt, AC 110 volt or AC 220 volt, Pneumatic solenoid valve features five-way two-position, single solenoid acting, fast and safe switching, and it is widely applied for air control in the chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles and other industrial areas.

Specification

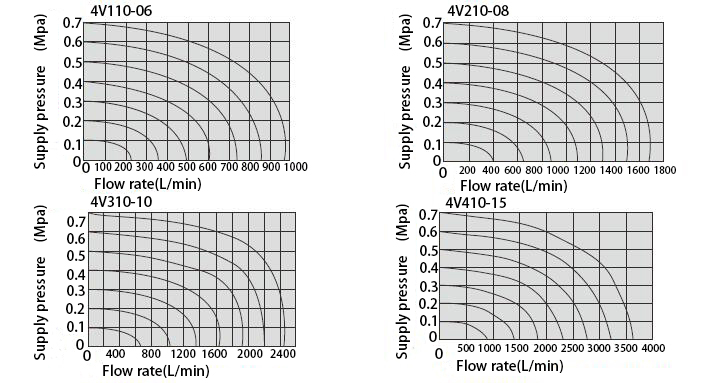

Flow Characteristics

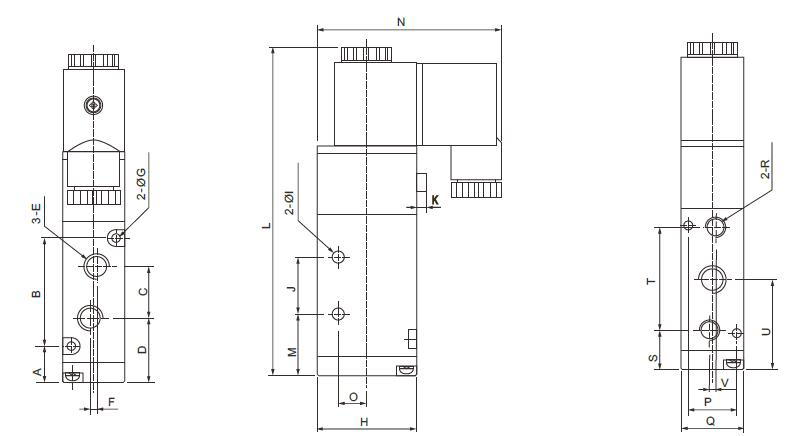

Dimensions
(body length unit = mm, port size unit = inch)

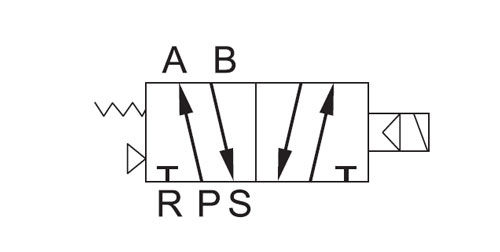

5/2-Way Single Solenoid Valve Symbol (Flow Diagram)

Tips: How does a solenoid valve work?

The solenoid valve has an enclosed chamber inside and ventilated holes in different positions. Every hole is connected with different oil pipes. The chamber has a piston in the middle. The two sides are two pieces of electromagnets. The electrifying magnetic coil will attract the valve body to its side, so that different oil outlets will be opened or closed through controlling the movement of the valve body. However, the oil inlet is constantly open. The hydraulic oil will enter into different draw-off pipes. The oil pressure will be used to drive the piston of the oil cylinder, which will drive the piston rod and then the mechanical device. In this way, through controlling the current of the solenoid valve, the mechanical movement will be controlled.
