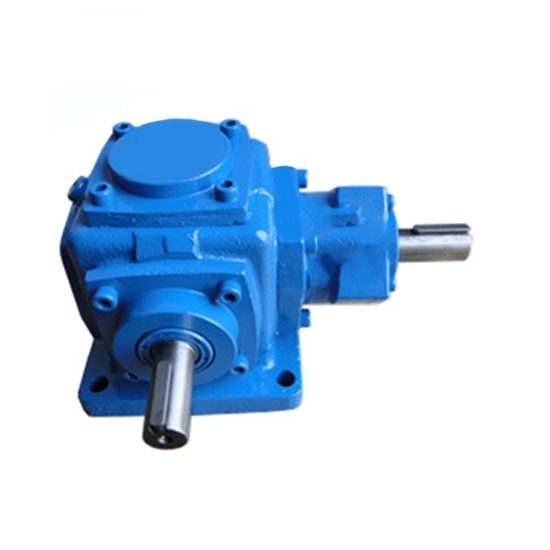

Right angle gearbox with spiral bevel gear drives. Gear ratio 1:1 or 2:1 for selection, maximum speed 1450 rpm, input horsepower 0.03~5 hp, 1/2/3/4 ways shafts with optional directions. The right angle gearbox reducer is for 90° steering and reduction. If you need a higher torque, please select a lower rpm.

Features

• The right angle gearbox uses spiral bevel gears inside. Gears are installed vertically to change the transmission direction at 90°.
• Spiral bevel gear is made of alloy steel, which has been carburized and hardened, and has high rigidity and wear resistance.
• The spiral bevel right angle gear box can change the transmission direction and steering in all directions, which can be used in any mechanical structure and application.
• Compared with the traditional worm gear reducer, the spiral bevel right angle gearbox can provide smoother running ability and larger transmission torque.

Basic Specification

Transmission Specification

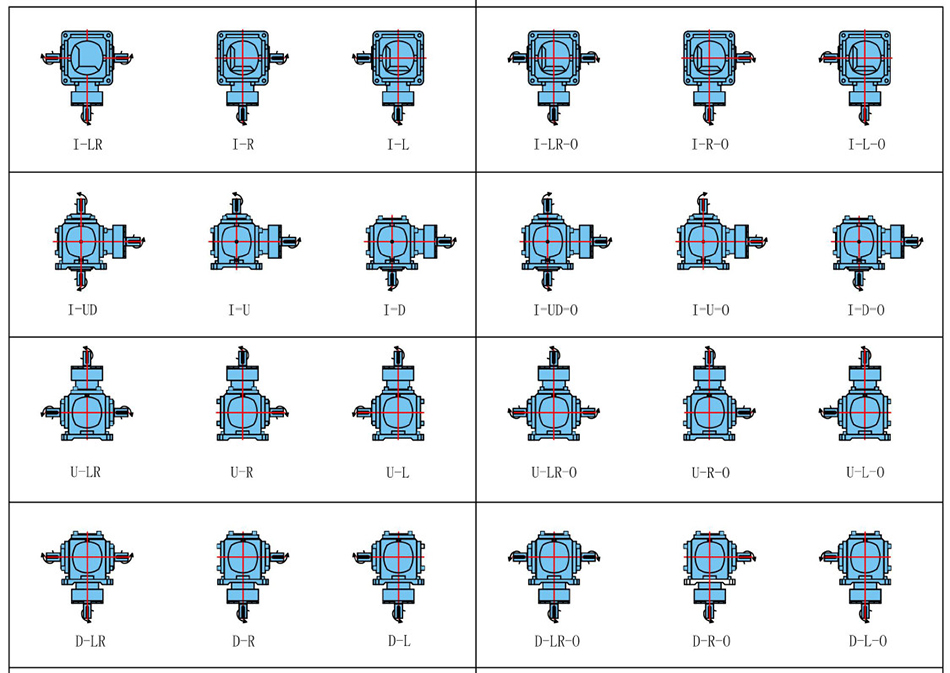

Spiral Bevel Right Angle Gearbox Shafts Directions

Tips: How to lubricate the 5 hp spiral bevel right angle gearbox?

When the 5 hp spiral bevel right angle gearbox is installed horizontally, the bearings may be partially immersed in the lubricating oil. After installation, remove the dipstick and check whether the oil level is correct. If there is no dipstick, other appropriate methods should be used to determine the oil level. When installed horizontally, the oil level should be about half the depth of the 5 hp spiral bevel right angle gearbox (to the parting line).

Before operation, please make sure that the 5 hp spiral bevel right angle gearbox contains enough oil. If the oil is not filled enough or the oil is filled too much, it may damage the gear transmission mechanism or cause personal injury.

For the 5 hp spiral bevel right angle gearbox operating at an ambient temperature of -20℃ ~ + 85℃, liquid gear oil can be used.
