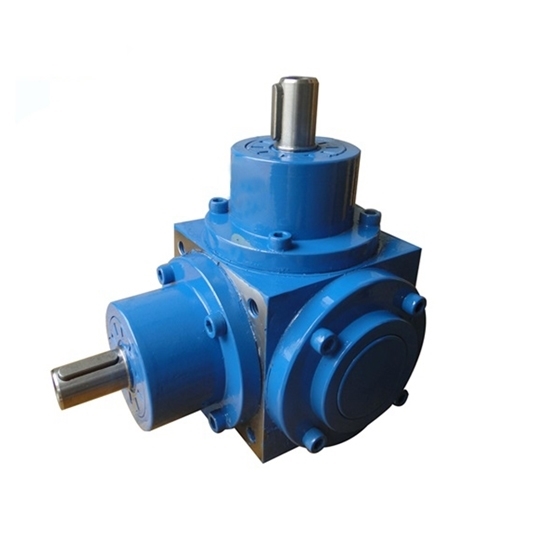

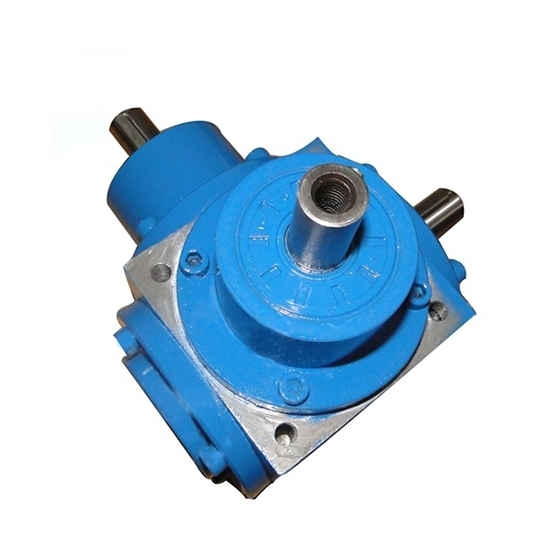

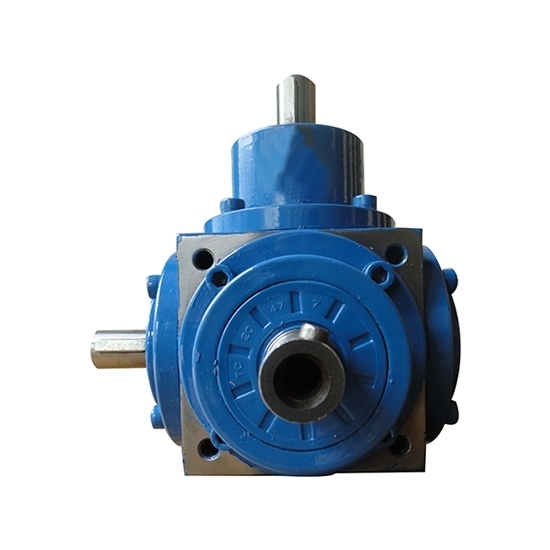

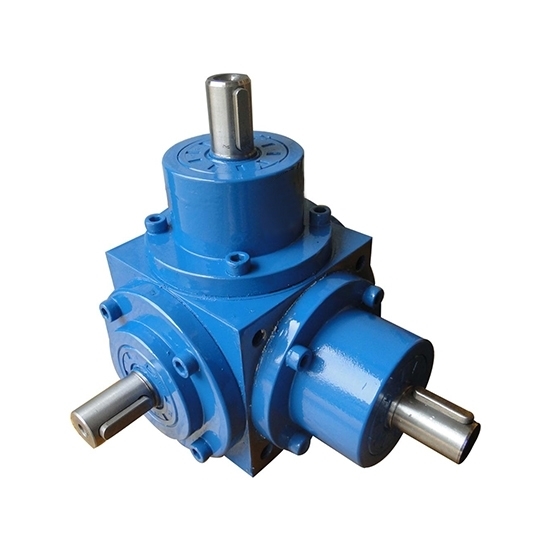

Buy spiral bevel right angle gearbox at low price. Gear ratio 1:1 or 2:1 for selection, maximum input power 18 hp, speed 50~1500 rpm, optional 1/2/3/4 ways, matching various input and output shafts directions. Compact right angle gear reducer for 90 degree steering and reduction.

Features

• Spiral bevel gears, bearings, gear box, input shaft, output shaft and other components consist the right angle gearbox.
• The spiral bevel right angle gearbox is also a steering gear box, which 90° changes the transmission direction. Small mounting size, high torque, high speed.
• Spiral bevel gears are made of alloy steel, which is hardened by carburizing, and has high rigidity and wear resistance. The bearing is a tapered roller bearing, which can withstand greater torque.
• The gear box material is cast iron. The input shaft and output shaft are made of #45 steel, which has been carburized and heat treated.
• Spiral bevel 90 degree gearbox are used in textile industry, food processing machinery, conveying machinery, packaging machinery, automation machinery, etc.

Basic Specification

Transmission Specification

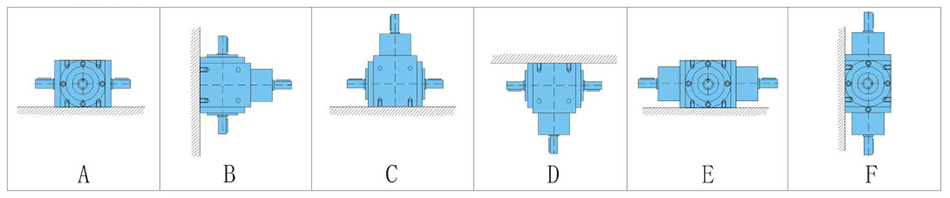

Spiral Bevel Right Angle Gearbox Installation Methods

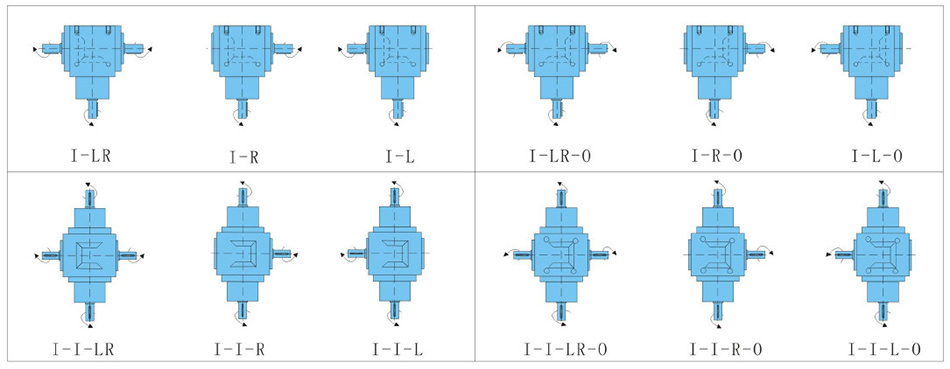

Spiral Bevel Right Angle Gearbox Shafts Directions

Tips: How to install 18 hp spiral bevel right angle gearbox correctly?

1. The 18 hp spiral bevel right angle gearbox must be installed on a firm, flat bottom plate. It is recommended that the flatness be within 0.254mm. Make sure that the mounting pads of right angle gearbox are evenly placed on the bottom plate. It is best to use gaskets to avoid damage to housing, otherwise it may change the gear mesh or cause premature damage and deformation of the bearing.
2. 18 hp spiral bevel right angle gearbox can be driven by direct coupling, flexible coupling or V-belt drive. The coupling can be installed with less force. The transmission system must be accurately aligned in accordance with the manufacturer's regulations to limit the operating load and minimize the thrust load on the gear drive shaft.
3. The V-belt drive must be installed close to the bearing seat to minimize excessive overhanging load and avoid premature bearing damage.
4. The pulley must be installed correctly. Overtightening may cause the shaft to deviate from its normal position and cause internal damage. When installing the 18 hp spiral bevel right angle gearbox, excessive vibration may be caused, which may cause damage or breakage of the shaft.
