2 hp 1500 rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

$413.23

Right angle gearbox driven by spiral bevel gear. Ratio 1 to 1 or 2 to 1 for selection, maximum input power 2 hp, speed 50~150

SKU: CHN-RAGB-21500

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Cheap spiral bevel right angle gearbox for sale. Gear ratio 1:1 or 2:1, max input horsepower 2 hp, max speed 1500 rpm, various input and output shafts configurations of 1/2/3/4 ways. High speed high torque 90 degree gear reducer, small size, compact structure, good price.

Features

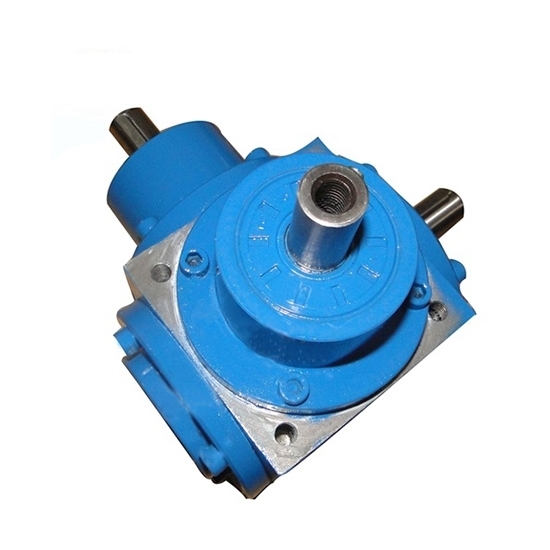

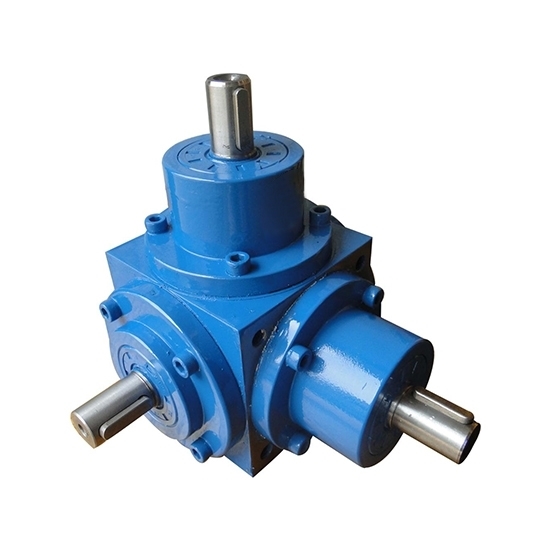

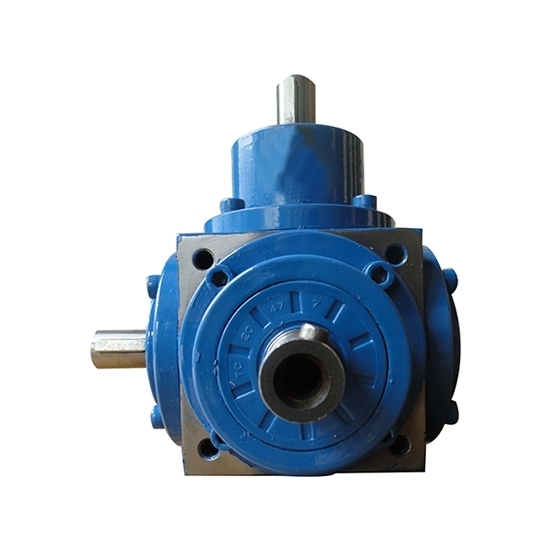

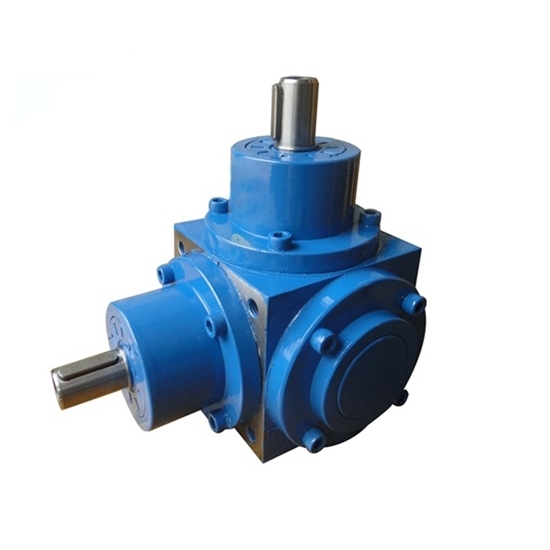

Spiral bevel gears, bearings, gear box, input shaft, output shaft and other components consist the right angle gearbox.
The spiral bevel right angle gearbox is also a steering gear box, which 90° changes the transmission direction. Small mounting size, high torque, high speed.
Spiral bevel gears are made of alloy steel, which is hardened by carburizing, and has high rigidity and wear resistance. The bearing is a tapered roller bearing, which can withstand greater torque.
The gear box material is cast iron. The input shaft and output shaft are made of #45 steel, which has been carburized and heat treated.
Spiral bevel 90 degree gearbox are used in textile industry, food processing machinery, conveying machinery, packaging machinery, automation machinery, etc.

Basic Specification

Model	CHN-RNV-065
Gear Ratio	1:1, 2:1
Max. Horsepower	2 hp
Max. Speed	1500 rpm
Transmission Efficiency	95%
Gear Oil	HD320~680
Ambient Temperature	-20℃ ~ +80℃
Noise	＜ 80dB
Weight	2.3 kg

Transmission Specification

Input Speed 1500 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	2	11.6
2:1	1.2	5.8
Input Speed 1000 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	1.76	12.61
2:1	0.88	6.30
Input Speed 750 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	1.43	13.66
2:1	0.72	6.88
Input Speed 500 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	1.1	15.76
2:1	0.54	7.73
Input Speed 250 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	0.63	18.5
2:1	0.31	8.88
Input Speed 50 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	0.13	18.62
2:1	0.06	8.59

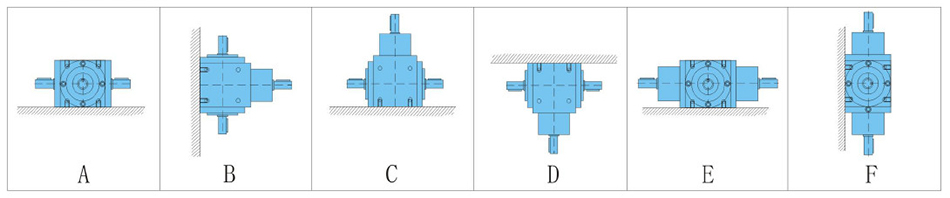

Spiral Bevel Right Angle Gearbox Installation Methods

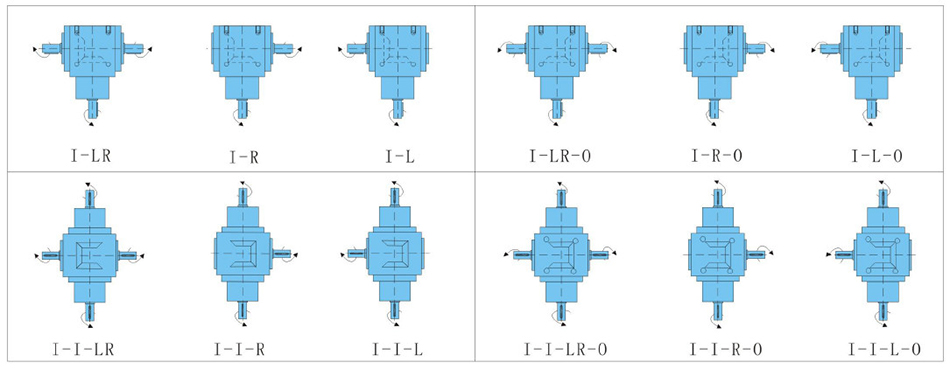

Spiral Bevel Right Angle Gearbox Shafts Directions

Direction Code	Definition
I-LR	1 input shaft + 1 left output shaft + 1 right output shaft
I-R	1 input shaft + 1 right output shaft
I-L	1 input shaft + 1 left output shaft
I-LR-O	1 input shaft + 1 left output shaft + 1 right output shaft, opposite direction
I-R-O	1 input shaft + 1 right output shaft, opposite direction
I-L-O	1 input shaft + 1 left output shaft, opposite direction
I-I-LR	2 input shafts + 1 left output shaft + 1 right output shaft
I-I-R	2 input shafts + 1 right output shaft
I-I-L	2 input shafts + 1 left output shaft
I-I-LR-O	2 input shafts + 1 left output shaft + 1 right output shaft, opposite direction
I-I-R-O	2 input shafts + 1 right output shaft, opposite direction
I-I-L-O	2 input shafts + 1 left output shaft, opposite direction

Tips: Preparations before using 2 hp spiral bevel right angle gearbox.

Please read the product manual completely before using the 2 hp spiral bevel right angle gearbox. Incorrect installation, operation and maintenance will cause the 2 hp spiral bevel right angle gearbox to malfunction or cause injury to operators.
Determine whether the purchased 2 hp spiral bevel right angle gearbox is suitable for the applied equipment in terms of mechanical parameters, and check whether the load exceeds the capacity specified in manual.
When installing 2 hp spiral bevel right angle gearbox, avoid obstacles caused by cooling air flow. In addition, the accumulation of any external debris should also be considered, which may reduce the cooling airflow over the entire equipment during operation.
