30mm Linear Steel Ball Bushing Bearing SDM30GA


$54.77

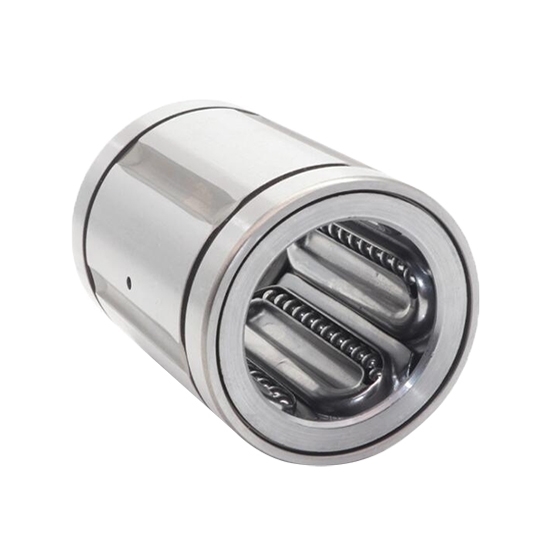

30mm linear ball bushing comprises a hardened steel outer housing, resin cage, along with the raceway segments and steel bal
SKU: CHN-LBB-SDM30
Free Shipping Worldwide
Delivery date: 6-12 days

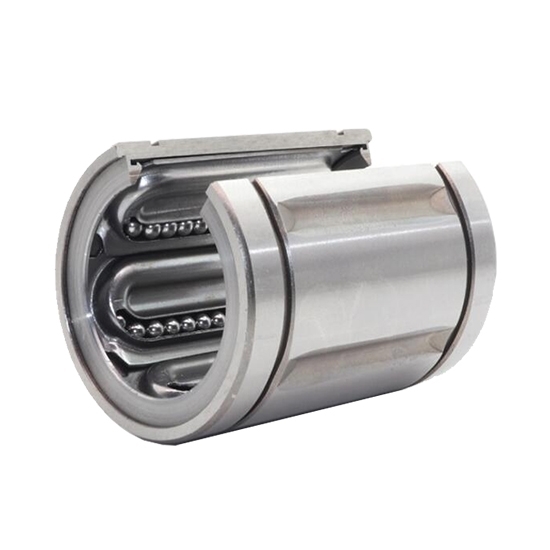

Good-quality linear motion ball bearings are sold at favorable prices. The shaft size is 30mm, inter diameter 45mm and length 64mm. Easy for mounting, maintenance and replacement. Open types are also available for your selection.

Specifications

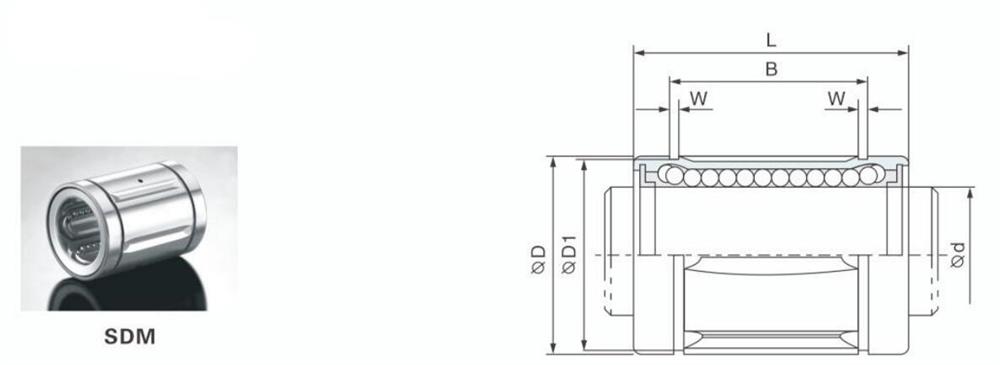

dimensions of sdm linear bearings

Nominal shaft diameterResin retainerMajor dimensions and tolerance
SDMBall circuitWeightSDM...AJBall circuitWeightSDM...OPBall circuitWeightdrTolerance
PrecisionHigh
16mmSDM16GM476gLM16UU-AJ475gSDM16OP358g16mm0
-6μm
0
-9μm
20mmSDM20GM5100gLM20UU-AJ598gSDM20OP479g20mm0
-7μm
0
-10μm
25mmSDM25GM6240gLM25UU-AJ6237gSDM25OP5203g25mm
30mmSDM30GM6270gLM30UU-AJ6262gSDM30OP5228g30mm
35mmSDM35GM6425gLM35UU-AJ6420gSDM35OP5355g35mm0
-8μm
0
-12μm
40mmSDM40GM6654gLM40UU-AJ6640gSDM40OP5546g40mm
50mmSDM50GM61700gLM50UU-AJ61680gSDM50OP51420g50mm
60mmSDM60GM62000gLM60UU-AJ61980gSDM60OP51650g60mm0
-9μm
0
-15μm
80mmSDM80GM64520gLM80UU-AJ64400gSDM80OP53750g80mm
100mmSDM100GM68600gLM100UU-AJ68540gSDM100OP57200g100mm0
-10μm
0
-20μm



Major dimensions and toleranceEccentricityRadial clearance (Max)Basic load rating
DLBWD1hh1θ
mmTolerancemmTolerancemmTolerancePrecisionHighDynamic Static
280
-13μm
370
-200μm
26.50
-200μm
1.6mm27mm1.5mm11mm80°8μm12μm-6μm774c N1180co N
320
-16μm
4230.51.6mm30.5mm1.5mm11mm60°10μm15μm882cN1370co N
40590
-300μm
410
-300μm
1.85mm38mm2mm12mm50°980c N1570co N
456444.51.85mm43mm2.5mm15mm50°-8μm1570c N2740co N
520
-19μm
7049.52.1mm49mm2.5mm17mm50°12μm20μm1670c N3140co N
608060.52.1mm57mm3mm20mm50°-10μm2160c N4020co N
80100742.6mm76.5mm3mm25mm50°-13μm3820c N7940co N
900
-22μm
110853.15mm86.5mm3mm30mm50°17μm25μm4700c N10000co N
1201400
-400μm
105.50
-400μm
4.15mm116mm3mm40mm50°-20μm7350c N16000co N
1500
-25μm
175125.54.15mm145mm3mm50mm50°20μm30μm14100c N34800co N

 Tips: Things to Consider before Choosing a Linear Bearing

You should consider the factors below when you choose a particular bearing for specific applications:

  • Dimensions
    Bearings with incorrect sizes will not deliver the best performance so you have to choose the right bearing of matched dimensions according to your requirement.
  • Load Capacity
    Load-bearing capacity varies depending on different types of linear bearings. Applying proper load on the bearing as prescribed helps extend its lifespan.
  • Temperature
    The bearing that you're supposed to choose should be able to withstand the temperature ups and lows during the performance. Operating temperature is a significant parameter worth considering since the neglect of it can be hazardous for health and durability of the bearing.
  • Speed
    The operating temperature of the bearing plays a major part in the conditioning of speed.
  • Lifespan
    The lifespan of an ideal bearing should convince you to invest in it.

If you're looking for a reliable distributor of industrial bearings, let us know, and we'll get you the best in the market.
