Home > Transmission & Actuator > Linear Ball Bearings

Send Inquiry

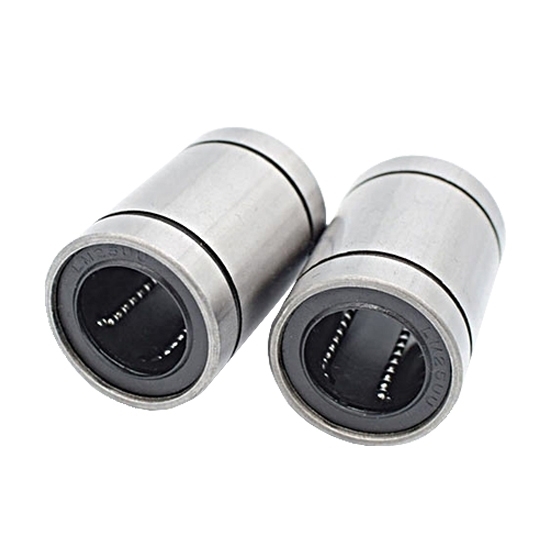

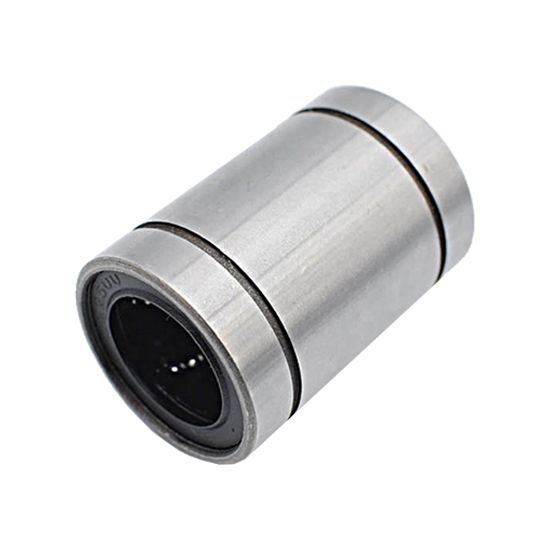

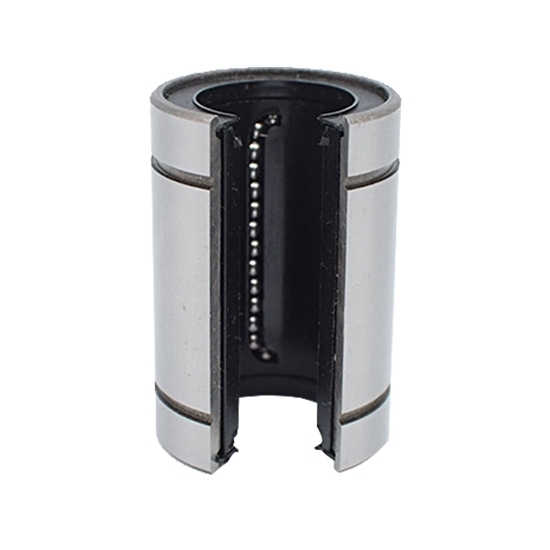

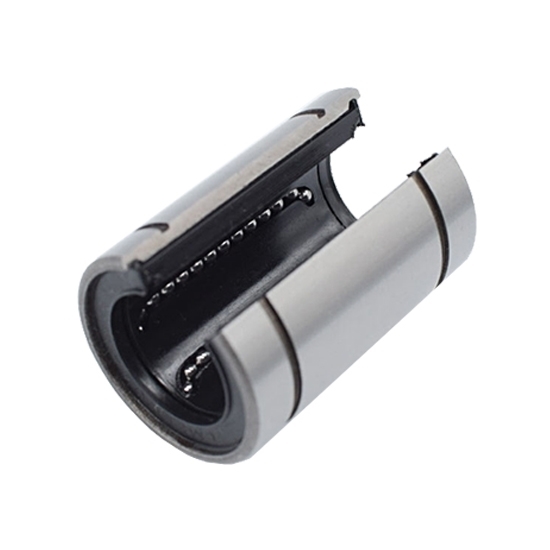

LM16UU Metric Linear Ball Bearings with Rubber Seals

$11.23

LM16UU linear ball bearings, nominal shaft diameter 16mm, outsider diameter 28mm, length 37mm, with rubber seals on both side

SKU: CHN-LBB-LM16

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

LM Series Elastomer Sealed Linear Ball Bushings are for sale. Inner diameter is 16mm, chrome/stainless steel housing and ball bearing, good abrasion resistance, high precision and good resistance. Rubber seals prevent moisture and dirt ingress for long service life, a cost-effective solution for componets' straight-line movement.

Specifications

Nominal shaft diameter

Resin retainer

LM…UU

Ball circuit

Weight

LM…UU-AJ

Ball circuit

Weight

LM…UU-OP

Ball circuit

Weight

Tolerance

Precision

High

8mm

LM8UU

15g

LM8UU-AJ

14.7g

0
-6μm

0
-9μm

10mm

LM10UU

29.5g

LM10UU-AJ

29g

LM10UU-OP

23g

12mm

LM12UU

31.5g

LM12UU-AJ

31g

LM12UU-OP

25g

16mm

LM16UU

69g

LM16UU-AJ

68g

LM16UU-OP

52g

20mm

LM20UU

87g

LM20UU-AJ

85g

LM20UU-OP

69g

0
-7μm

0
-10μm

25mm

LM25UU

220g

LM25UU-AJ

216g

LM25UU-OP

188g

30mm

LM30UU

250g

LM30UU-AJ

245g

LM30UU-OP

210g

35mm

LM35UU

390g

LM35UU-AJ

384g

LM35UU-OP

335g

0
-8μm

0
-12μm

40mm

LM40UU

585g

LM40UU-AJ

579g

LM40UU-OP

500g

50mm

LM50UU

1580g

LM50UU-AJ

1560g

LM50UU-OP

1340g

60mm

LM60UU

1860g

LM60UU-AJ

1820g

LM60UU-OP

1610g

0
-9μm

0
-15μm

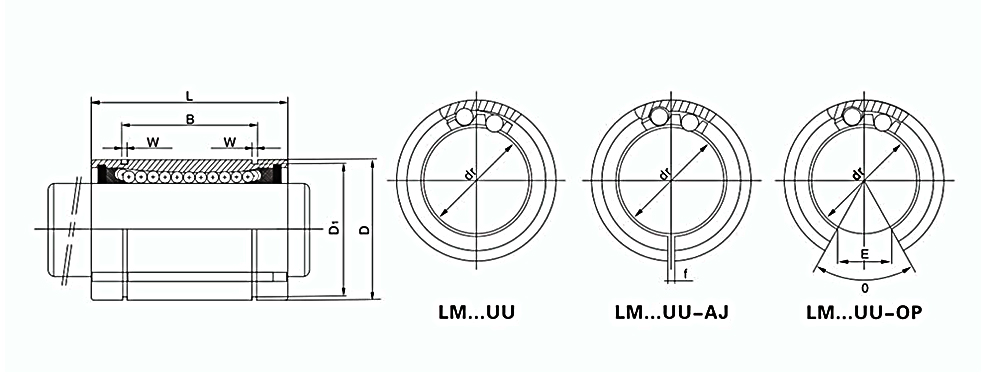

Major dimensions and tolerance

Eccentricity

Radial clearance (Max)

Basic load rating

Tolerance

Precision

High

Dynamic

Static

0
-11μm

0
-200μm

17.5

0
-200μm

1.1mm

14.3mm

1mm

8μm

12μm

-3μm

274c N

392co N

0
-13μm

1.3mm

18mm

1mm

6.8mm

80°

-4μm

372c N

549co N

1.3mm

20mm

1.5mm

8mm

80°

510c N

784co N

26.5

1.6mm

27mm

1.5mm

11mm

80°

-6μm

774c N

1180co N

0
-16μm

30.5

1.6mm

30.5mm

1.5mm

11mm

60°

10μm

15μm

882c N

1370co N

0
-300μm

1.85mm

38mm

2mm

12mm

50°

980c N

1570co N

44.5

1.85mm

43mm

2.5mm

15mm

50°

-8μm

1570c N

2740co N

0
-19μm

49.5

2.1mm

49mm

2.5mm

17mm

50°

12μm

20μm

1670c N

3140co N

60.5

2.1mm

57mm

3mm

20mm

50°

-10μm

2160c N

4020co N

100

2.6mm

76.5mm

3mm

25mm

50°

-13μm

3820c N

7940co N

0
-22μm

110

3.15mm

86.5mm

3mm

30mm

50°

17μm

25μm

4700c N

10000co N

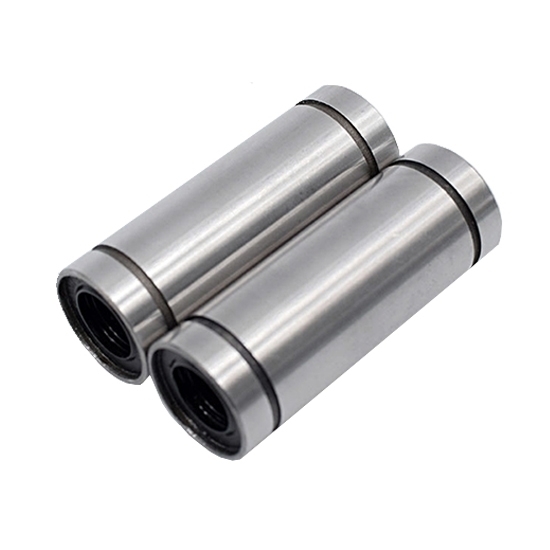

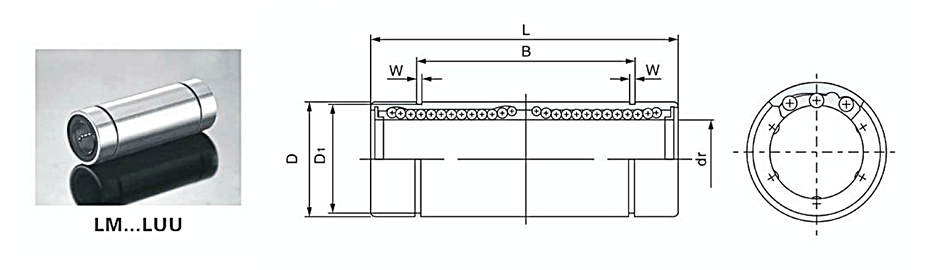

Nominal shaft diameter	LN…LUU	Ball circuit	Major dimensions and tolerance
			dr		D		L		B		W	D1
			mm	Tolerance	mm	Tolerance	mm	Tolerance	mm	Tolerance	W	D1
8mm	LM8LUU	4	8	0 -10μm	15	-13μm	45	0 -300μm	35	0 -300μm	1.1mm	14.3mm
10mm	LM10LUU	4	10		19	-16μm	55		44		1.3mm	18mm
12mm	LM12LUU	4	12		21		57		46		1.3mm	20mm
16mm	LM16LUU	5	16		28		70		53		1.6mm	27mm
20mm	LM20LUU	5	20	0 -12μm	32	-19μm	80		61		1.6mm	30.5mm
25mm	LM25LUU	6	25		40		112	0 -400μm	82	0 -400μm	1.85mm	38mm
30mm	LM30LUU	6	30		45		123		89		1.85mm	43mm
35mm	LM35LUU	6	35	0 -15μm	52	-22μm	135		99		2.1mm	49mm
40mm	LM40LUU	6	40		60		151		121		2.1mm	57mm
50mm	LM50LUU	6	50		80		192		148		2.6mm	76.5mm
60mm	LM60LUU	6	60	0 -20μm	90	-25μm	209		170		3.15mm	86.5mm

Tips: Applications of ATO High-quality Linear Ball Bearings

Linear bearing is a high-precision linear motion system with low friction resistance. The linear bearing is used in combination with the guide shaft, and delivers linear motion through constant rolling of steel balls. Since the bearing ball is in point contact with the bearing, the use load is small. The steel ball rotates with minimal frictional resistance, so that high-precision and smooth motion can be obtained. Linear bearings are more and more widely used in precision equipment such as 3D printer, numerical control equipment, engraving machine, linear module, automobiles, textile, medical, food and packaging machinery, etc.

CCHN Industry

Motor

Motor Controls

Power Supplies

Passive Components

Sensors

Test & Measurement

Transmission & Actuator

Pumps

CCHN Industry

Motor

Motor Controls

Power Supplies

Passive Components

Sensors

Test & Measurement

Transmission & Actuator

Pumps

LM16UU Metric Linear Ball Bearings with Rubber Seals
