Model		CHN-U10
Voltage		12V DC, 24V DC, 36V DC, 48V DC (Optional)
Max. Load		20000N
Max. Static Load		40000N
No-Load Speed		2.8mm/s
Full-Load Speed		2mm/s
Rated Speed		1800RPM
Stroke		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, can be customized)
Continuous Current		8A
Duty Cycle		10%
IP Grade		IP65
Ambient Temperature		-25℃ ~ +65℃
Position Feedback		Hall sensor
Noise		<60db
Front-Rear End Dimension		Hole Φ30mm

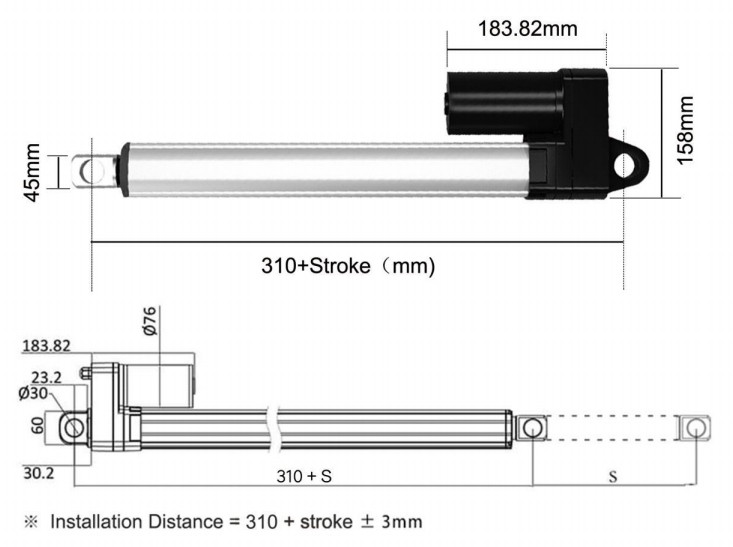

Installation Dimension		Stroke + 310mm
Connector		Tinned leads
Length of Cable		1m
Weight		15kg
Applications		Solar PV industry such as solar tracker, and heavy load industry application

Code	Rated Load (N)		Rated Current (A)	Rated Speed (mm/s)
Code	Push	Pull	Rated Current (A)	No Load (24V DC)	Full Load (24V DC)
A	20000	20000	7	2.8	2
B	15000	15000	6	4.2	2.5
C	12000	12000	5	4.6	2.8
D	10000	10000	5	10	6

Stroke±3 (mm), Mounting Dimension±3 (mm)
Stroke	50	100	150	200	250	300	350	400	450
Size	360	410	460	510	560	610	660	710	760
