The provided industrial linear actuator is a very powerful actuator, due to its 12000N large load capacity, compact design, and IP66 rated protection, is ideal for various applications such as agricultural machinery, construction machinery, and industrial machinery.

Heavy Duty Linear Actuator Specifications

Linear Actuator Load and Speed Selection

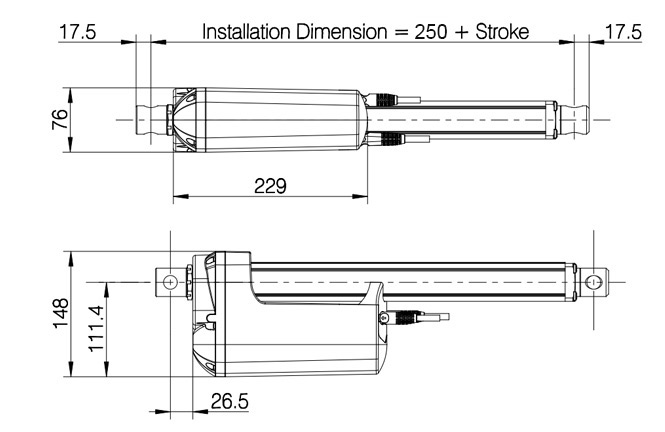

Linear Actuator Standard Dimension (mm)

S: Stroke, L: Retracted Length=Stroke+250mm (Stroke<300mm) / Stroke+260mm (Stroke>300mm)

Linear Actuator Stroke and Size Selection

Tips: Linear actuator has superior performance and wide application

We can regard linear actuator as a kind of power driven equipment with the superior performance, because it can convert the rotation movement of the motor into the straight reciprocating motion of the linear actuator. So far, it is mainly used as the executive machine for various or complicated, or simple technological process, so as to realize the remote distance control, concentrated control or automatic control.

In the operation process, the main working principle of the linear actuator can be summarized as: The motor will drive a pair of feed screw nuts after the speed reduction of the gear. This means to transform the rotation movement of the motor into the linear motion. It completes the pushrod movement relying on the motor forward and reversal rotations.

In practical applications, aimed at different travel requirements, we can achieve the purpose by using the length of the arm of the adjustment lever. At present, the stroke control device of the linear actuator mainly includes two forms, one is the worm gear transmission form, and the other is the gear transmission form. In addition, during the user's operation process, the operator can choose to match with the appropriate potentiometer as needed.
