Electric Linear Actuator, 12V/24V, 3500N, 400mm Stroke

The provided electric linear actuator is high efficiency, relatively high load at 3,500 N, with 12 volt DC voltage, 24 volt is available. This miniature linear actuator is typically used for industrial, agricultural machinery, clean sweeping vehicles, vessels, cargo and other automatic control windows applications.

Electric Linear Actuator Specifications

Linear Actuator Load and Speed Selection

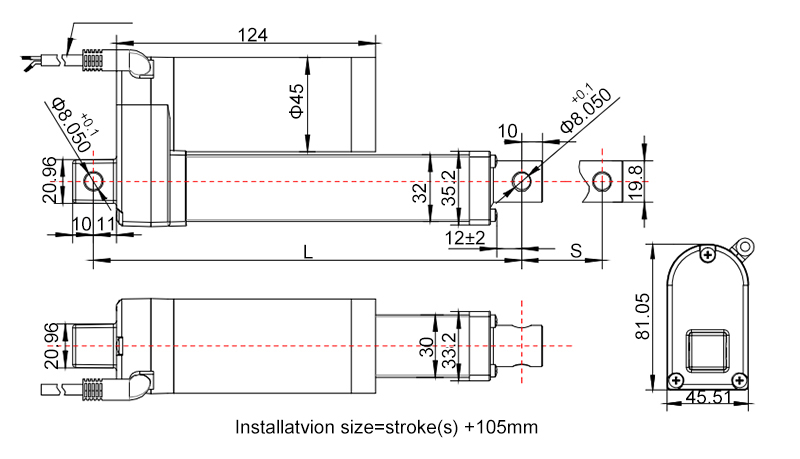

Linear Actuator Standard Dimension (mm)

S: Stroke, L: Retracted Length=Stroke+105mm (Stroke<300mm) / Stroke+120mm (Stroke>300mm)

Stroke and Retracted Length Selection

Tips: Why doesn't linear actuator rotate?

Linear actuator has a wide application in our life. It is used in both medical and industrial fields. However, we might encounter the problem of non-rotation of the linear actuator in using. Why is this?

1. The motor does not rotate at a constant speed. Although the revolving speed of the motor is theoretically constant, it is mostly caused by the condition that the pushed object of the linear actuator is not fixed in case of a non-constant speed of the rotation.
2. The motor rotates at a rather slow speed. We have to firstly check if the pushed object of the linear actuator is overloaded. If yes, it will certainly result in the slow speed of the rotation. Another possible reason of such a phenomenon is that the motor has rustiness or insufficient lubrication degree because the motor hasn't been used for years.
3. The motor doesn't rotate. In case of such a problem, we have to check if the pushed object is overloaded or if the operation circuit is obstructed so as not to be moved, and then check if the power supply circuit is normal or not. If none of the above circumstances occurs, we have to check if the insurance control switch near the motor rest switch is closed or not.
