Miniature Linear Actuator, 12V/24V, 1000N, 200mm Stroke

Linear actuators are electric actuators which create motion in a straight line. The provided actuator is mini and compact, max load up to 1000N in pull/push, 12V/24V DC four voltage options are available, very convenient to install. Home, electrical and mechanical, chemical, sanitary ware, leisure and other fields are widely used.

Miniature Linear Actuator Specifications

Linear Actuator Load and Speed Selection

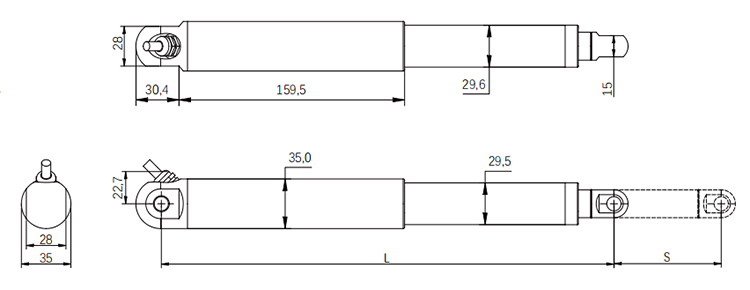

Linear Actuator Standard Dimension (mm)

S: Stroke, L: Retracted Length=Stroke+220mm (Stroke<300mm) / Stroke+240mm (Stroke>300mm)

Stroke and Retracted Length Selection

5 tips for checking and repairing linear actuator

1. In repairing the miniature linear actuator, please take notes to use the sharp utensils for disassembly and assembly. Since the inner part of the linear actuator has many precised electronic components, it might be damaged easily.
2. In the process of repairing the miniature linear actuator, it is required to firstly remove the circuit module for mechanical dismounting of the component. It can protect the electronic components which are easily to be damaged as well.
3. Since miniature linear actuator adopts very fine components, which are easily to get deformed or damaged, so please avoid using the brute force in repairing, which will result in unrecoverable damages.
4. Before repairing, it is firstly required to read the product instruction manual, familiarize with the shapes and applications of various components, and conduct fault analysis. The maintenance and repairing shall be conducted in the non-magnetic and dry environment.
5. After the maintenance, it shall be assembled, ensuring that all circuits are connected accurately, avoiding short circuit, power leakage and other phenomena.
