Mini Linear Actuator, 12V/24V, 850N, 150mm Stroke

$132.89

This miniature linear actuator is a powerful and reliable electric linear actuator for small to medium loads, max load up to

SKU: CHN-LACTU-850

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Mini linear actuator is a small and compact unit capable of lifting low to medium forces. The provided actuator max load is 850N in pull/push, 12V/24V DC four voltage options are available, it can be used with any application that requires moving something in a straight line.

Electric Linear Actuator Specifications

Model		ATOHTA15
Voltage		12V DC, 24V DC (Optional) Note: The fluctuation of voltage is +/-2V.
Maximum Load		850N in pull/push
Self Locking Load		900N
Power		35W
Rated Speed at Full Load		5mm/s at 850N
Output Speed at No Load		8mm/s
Rated Load Current		4.7A
Stroke		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, can be customized)
Minimum Installation Dimensions		Stroke + 105 mm (Stroke<300mm) Stroke + 120 mm (Stroke>300mm)
Connection Mode		Default motor wiring (Brown lead: motor positive +; Blue lead: motor negative -)
IP Rating		IP54
Operational Temperature Range		-20°C~+45°C
Certification		ISO, CE, RoHS
Noise		<52dB
Upper End Type		Cylindrical, aperture 8.1mm
Line Length		750mm
Weight		3 kg
Built-in limit switches (not adjustable)

Linear Actuator Load and Speed Selection

Rated Load Capacity		Self Locking Force (N)	Rated Load Current (A)	Output Speed at No load (mm/s)	Rated Speed at Full Load (mm/s)
Pull (N)	Push (N)	Self Locking Force (N)	Rated Load Current (A)	Output Speed at No load (mm/s)	Rated Speed at Full Load (mm/s)
850	850	900	4.7	11.1	8.9
600	600	600	4.4	14.2	10.5
400	400	400	4.2	15.0	12.0
300	300	300	3.8	22.2	17.8
200	200	200	3.2	33.3	26.7

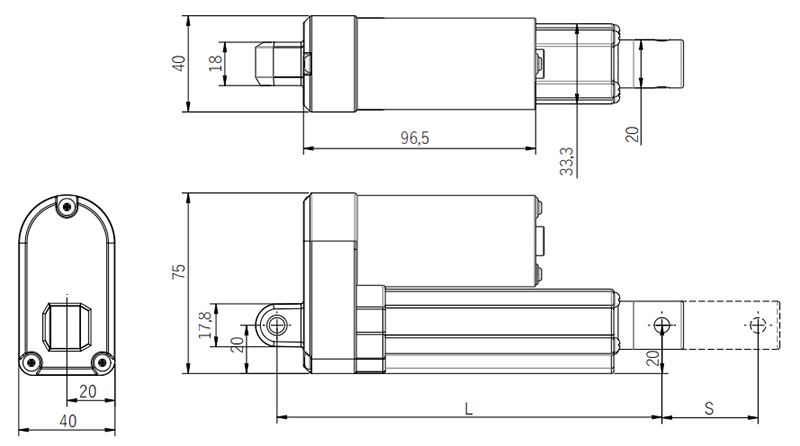

Linear Actuator Standard Dimension (mm)

S: Stroke, L: Retracted Length=Stroke+105mm (Stroke<300mm) / Stroke+120mm (Stroke>300mm)

Linear Actuator Stroke and Size Selection

Stroke±2 (mm), Mounting Dimension±2 (mm)
Stroke	50	100	150	200	250	300	350	400	450
Size	155	205	255	305	355	405	470	520	570

Tips: Difference between linear actuator and electric-hydraulic pusher

Linear Actuator

The linear actuator has novel and delicate design, small size, high precision, complete synchronization, good self-lock performance, sanitary, direct motor driving, and requires to gas source or oil pipe.
Application of linear actuator: widely used in the seat backrest lift in the plane, ship and luxury car, as well as the straight line pushing and expansion of the massage chair, massage bed, fire-fighting equipment, medical equipment, furniture and so on.

Electric-hydraulic Pusher

The electric-hydraulic pusher hydraulic control valve is mainly constituted by the overflow valve, oil absorption one-way valve, speed regulating valve, hydraulic control one-way valve(hydraulic lock) and so on. The oil loop combination valve of different functions can be designed according to the working characteristics of the electric-hydraulic pusher, so as to meet its working requirement.
Application of electric-hydraulic pusher: Widely used in metallurgy, mining, power, coal, machinery, transportation, food, chemical, cement, water conservancy, building material, transportation and other departments.

Both linear actuator and electric-hydraulic pusher are machinery in straight line movement. The difference is that one is the electromechanical liquid and the other is the electromechanical equipment. The main difference is that electric-hydraulic pusher is in liquid transmission, thus having unstable speed, poor accuracy, and liquid leakage after being used for a long period. The liquid has to be supplemented from time to time, so as to cause wastage and pollution.
