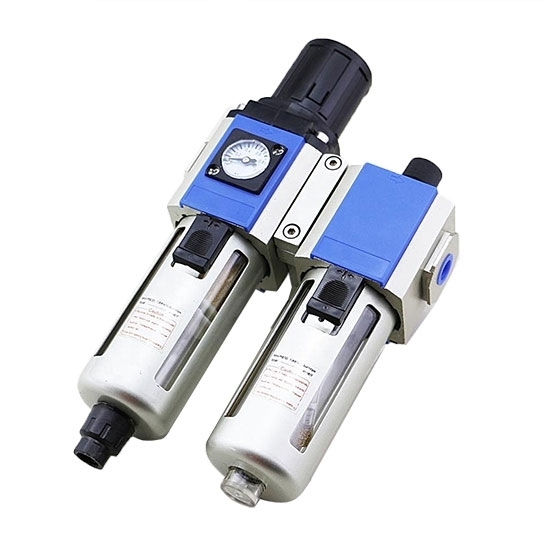

Filter regulator lubricator consists of pneumatic FRL unit for air compressors. It is used to purify and filter the air source into the pneumatic device and reduce the pressure to the rated air source pressure supplied by the instrument, which is equivalent to the function of the power transformer in the circuit.

Features

• Quick and reliable mounting clamps makes it convenient to install and use.
• The performance of pressure adjustment is reliable with high precision.
• The efficiency of eliminating moisture and solid grain is high.

Specification

Details

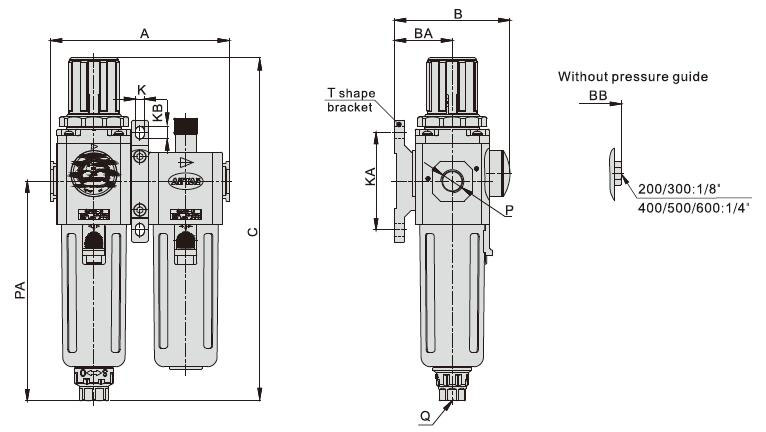

Dimensions (Unit: mm)

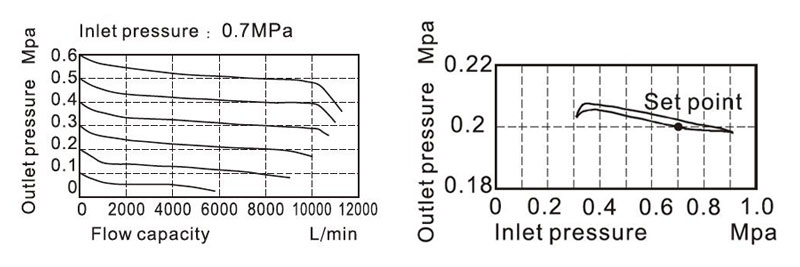

Pressure and Flow Diagram

Tips for installing FRL unit - filter regulator lubricator

1. Please pay attention to cleaning the connecting pipes and joints during installation to prevent dirt from being brought into the air circuit.
2. Please pay attention to whether the gas flow direction is consistent with the direction indicated by the arrow on the body, and pay attention to whether the connection and joint teeth are correct.

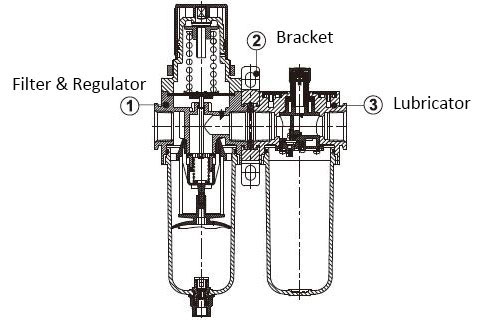

3. Fix the filter and the regulator valve to the oil feeder, match the convex groove of the fixed bracket with the concave groove on the body, and then use the fixing piece and screw to lock it.
4. Fix when using regulator and filter alone, rotate the fixing ring to lock the attached special fixing piece.
