Model	CHN-GAFC500-20
Fluid	Air
Pressure Type (Optional)	Standard (0.9 MPa), Lower Pressure (0.4 MPa)
Drain Type (Optional)	Semi-auto Drain, Manual Drain, Automatic Drain
Port Size	3/4"
Thread Type (Optional)	PT Thread (Scale: MPa, PSI) G Thread (Scale: MPa, Bar) NPT Thread (Scale: PSI, Bar)
Filtering grade (Optional)	40μm or 5μm
Bowl Material (Optional)	PC, Metal, Nylon
Pressure range	0.15-0.9 MPa (20-130 PSI)
Max.pressure	1.0 MPa (145 PSI)
Proof pressure	1.5 MPa (215 PSI)
Temperature range	-5~70 ℃ (Unfreeze)
Capacity of drain bowl	108 CC
Capacity of oil bowl	225 CC
Recommended lubricant	ISO VG 32 or equivalent
Weight	1.8 kg

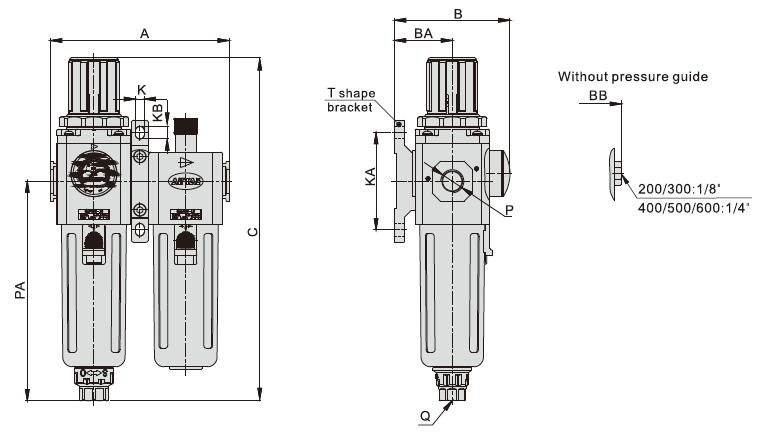

Model	A	B	BA	BB	C	K	KA	KB	P	PA	Q
CHN-GAFC500-20	168	100	50	89	299.5	8.6	80	12	3/4"	191.5	G1/4
