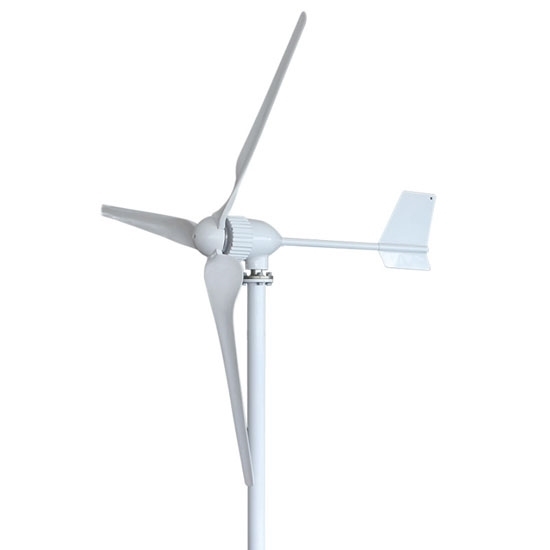

1000W Wind Turbine, 24V/48V

1000 watt wind turbine for sale, manufacturers price, rated wind speed 12.5 m/s, wind turbine generator blades with reinforced glass fiber, aerodynamic design, smooth and quiet operation and low vibration.

Specification:

Features
1. The starting speed is slow, the wind energy utilization rate is high.
2. Easy to install, tube or flange connection is optional.
3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

1000W Wind Turbine Power Curve

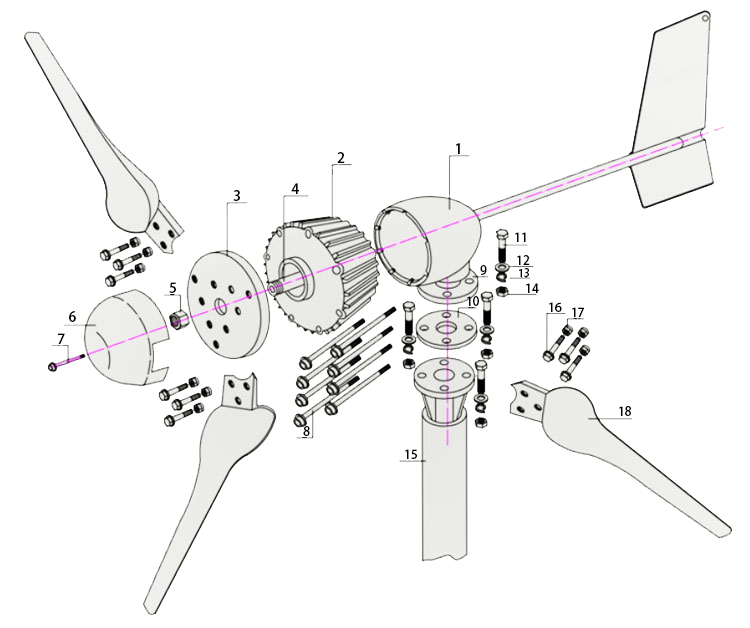

1 kW Wind Turbine (Flange Seat) Exploded View

1. The body behind the wind wheel, 2. Front body of wind wheel, 3. Wind wheel hub, 4. Wind turbine shaft 5. Anti-loose nut, 6. Fairing, 7. Shell locking bolt, 8. Body locking bolt, 9. Wind turbine flange seat, 10. Rubber pad, 11 Bolt, 12. Flat washer, 13. Elastic washer, 14. Nut, 15. Steel tube bracket (tower), 16. Lock nut, 17. Stainless steel screw, 18. Wind wheel.

Tips: How many watts of wind turbines should be used for household electricity?

300W wind turbine, less power, can only be used for TV, lighting, electric fans. 500W fan can carry TV, lighting, electric fan, washing machine. The 1000W fan can supply electricity for TV sets, lighting, electric fans, washing machines and small refrigerators.
