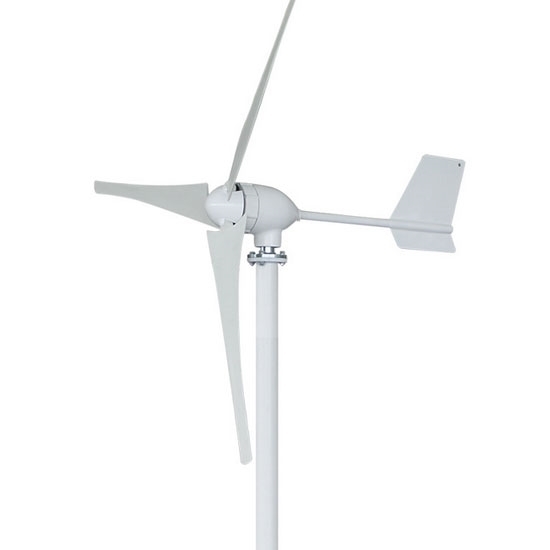

High cost performance wind turbine rated power 600 watt, wind turbine blades materials is nylon fiber and size 1.85 meter, easy to install, safe to use, it is a good choice of home wind turbines.

Specification:

600W Wind Turbine Power Curve

Features
1. The starting speed is slow, the wind energy utilization rate is high.
2. Easy to install, tube or flange connection is optional.
3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

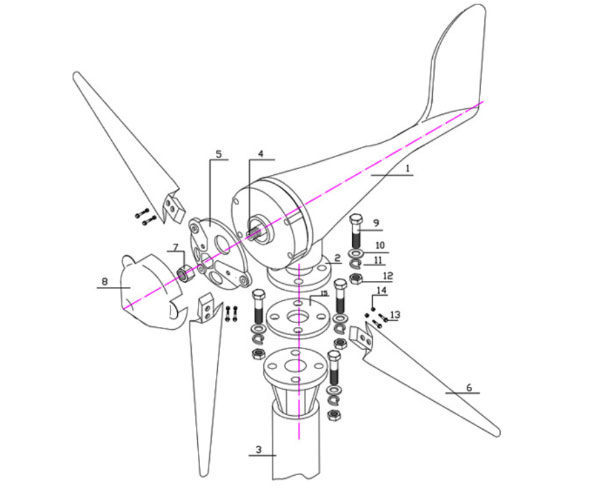

600W Wind Turbine (Flange Seat) Exploded View

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

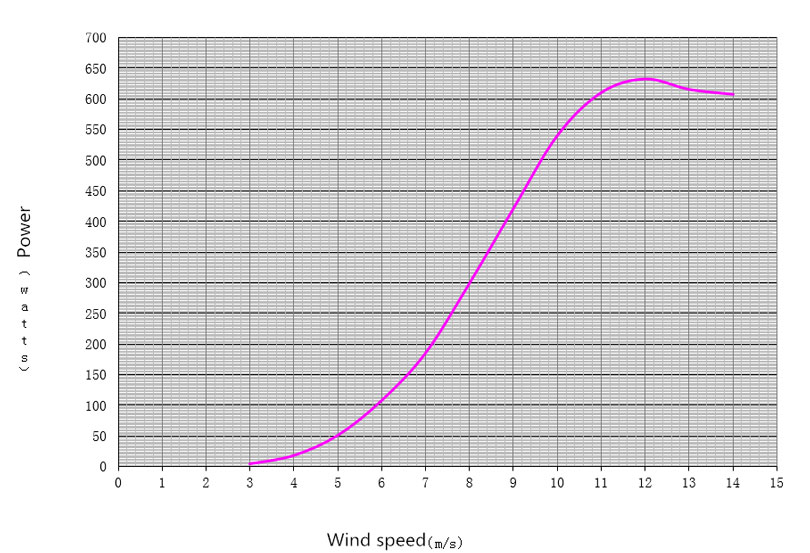

Power Curve

Tips: Homemade wind turbine

The first is the necessary materials: conductor, permanent magnet, rotor shaft, bearing, is the necessary materials.

Simple recipe:
1. Rotor. Permanent magnet is fixed on the rotor shaft and its magnetic pole pairs are symmetrical and round. Generally, the strength of magnetic field, rotor speed and the number of magnetic pole pairs affect the voltage.

2. The stator, the wire winding on the stator core, single direction if use similar market motor winding method is different, now is the most simple, for example, the diameter of the wire will affect the power current, namely the power of the generator voltage winding length and number of turns, the other set of rotor material can require the use of magnetic materials, the most common is iron, but the easiest way to get best use iron overlay, stator spacing influence permeability performance, namely generator voltage and power will have influence, should not be more than 0.5 mm, this basic form a generator.

3. By using power to rotate the rotor (the speed of rotation depends on the voltage), ac voltage can be obtained at both ends of the wire.
