15kW AC synchronous generator with power factor 0.8 cosφ, 1500 r/ min rated speed. Single phase/ three phase ac synchronous generator is widely used in industrial and agricultural production, national defense, science and technology and daily life.

Specification

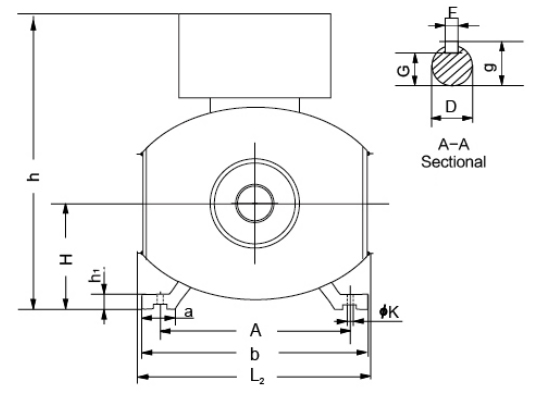

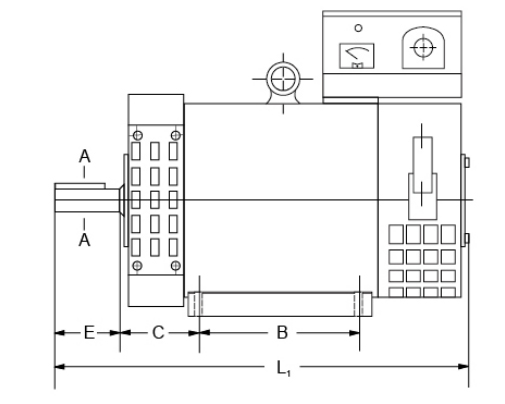

Dimension

Tips: How to Use AC Synchronous Generator?

1. The ground polarity of the battery must be the same as the ground polarity of the alternator. The consequence of not following the specification is that the diode will be damaged due to the large current discharge of the diode.
2. When the six diodes of the rectifier tube are connected to the stator windings, it is absolutely prohibited to use a megger or 220V AC power supply to check the insulation of the alternator. Otherwise, the diode may be easily broken down and damaged.
3. After the engine is turned off, the ignition switch should be turned off. If the flame is not turned off in time, the battery will continue to discharge, which will affect the magnetic field and shorten the battery life.
4. When the alternator is running, the fire test method cannot be used to check whether it is generating electricity. Otherwise, it is easy to damage the diode and electronic components.
