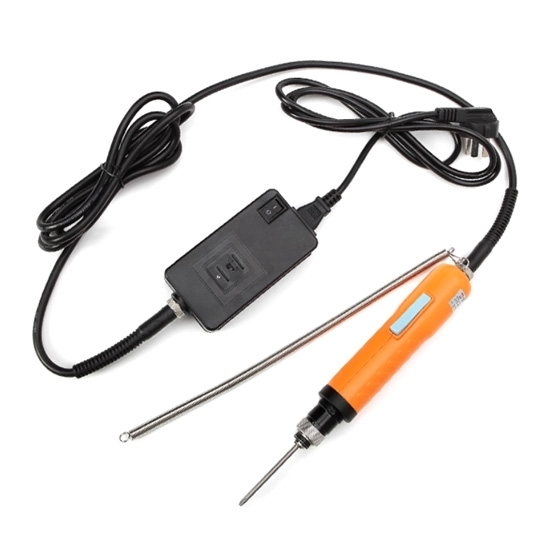

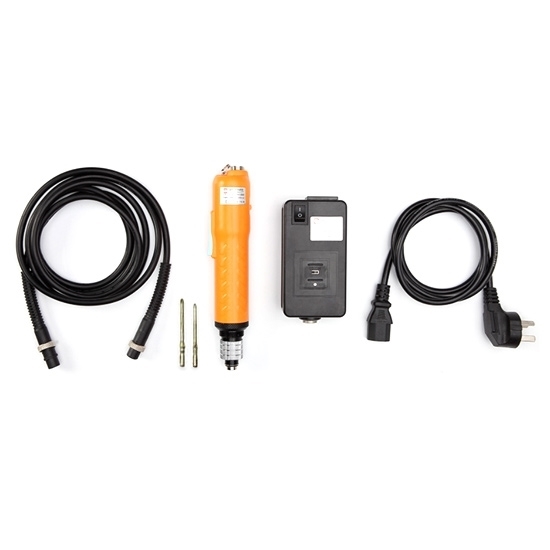

32V DC brushless electric screwdriver with adjustable torque/speed & positive and negative rotation function can be used for various automatic screw feeder.

Character:

1. The brushless electric screwdriver uses high-quality 32VDC brushless motors, with long service life and low noise.
2. The shape conforms to the principles of ergonomics and is comfortable to grip without slipping. The electric screwdriver is light in weight and does not fatigue for long-term use.
3. The torque of the locking screw can be adjusted according to the needs of the product, without worrying about damaging the product.
4. Electric screwdriver with autobrake function, it will stop automatically when the set torque value is reached.
5. The electric screwdriver can adjust the rotation direction through the switch. Lock screw in the positive direction and remove the screw in the reverse direction.
6. Electric screwdriver speed switch on the adapter can be adjusted from low-speed 600rpm to high-speed 1000rpm.
7. The adapter has a power switch and does not need to be plugged in and out frequently.

Specification:

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Types of nut diagram:

Tips: The electric screwdriver operations in the automatic screw feeding system

1. Turn on the power switch and adjust the required torque of the electric screwdriver (according to the screw size). Before use, it is best to adjust the predetermined torque value, so as not to cause screw looses. Excessive torque will easily cause slipping.
2. Pour the screws into the storage box of the screw feeder. The number of screws cannot exceed the safety line, and other sundries or other screws cannot be poured in to avoid mixing.
3. Before first-time screw locking, press the screwdriver operation switch twice in succession to check whether the screwdriver can work normally.
4. Hold the workpiece to be locked in one hand and align the handheld screwdriver with the hole in one hand for safe operation and standard use.
5. When the screw locking is completed, that is, the electric screwdriver reaches the torque value, lift the electric screwdriver. Do not lift the electric screwdriver before the torque value is reached.

Note: When the torque value is insufficient, the screw is not locked. If lift the electric screwdriver, the screw may not be locked and remains in the electric screwdriver. When lift it, the screw assembly will move the next screw into the screwdriver. At this time, there are two screws in the electric screwdriver, which will cause the screws are stuck. If such a situation occurs, punch out the screw in anywhere except screw hole and take it out.
