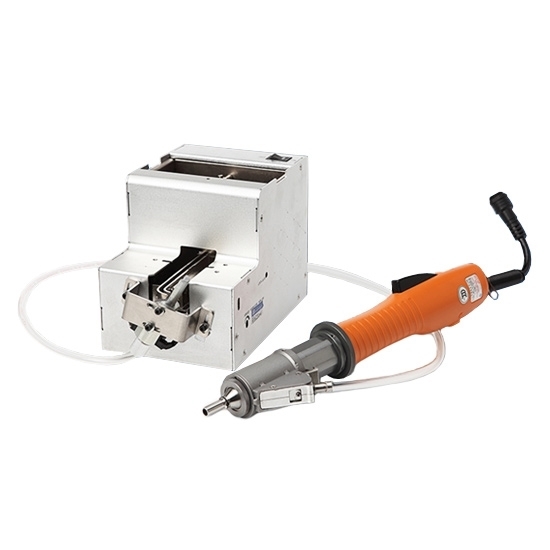

Handheld Automatic Screw Feeder


$2436.78
Handheld automatic screw feeder is specially designed for locking different types of screw. The basic range of screw feeder a
SKU: CHN-ASF-H1
Free Shipping Worldwide
Delivery date: 6-12 days

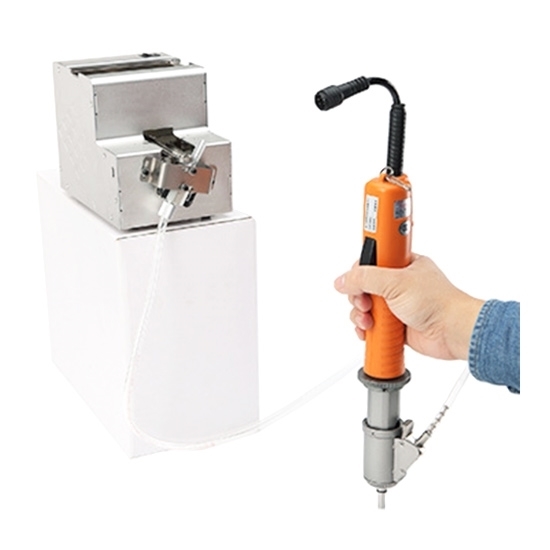

Handheld automatic screw feeder doesn't adopt air-blowing principle. It only needs to put the screw feeding device in a high position, then the screw will automatically drop down to the electric screwdriver assembly for locking.

Function:

  1. Handheld automatic screw feeder with a lightweight design and compact structure can be placed above the workbench.
  2. There is no special skill required for the operator. The operator is easy to operate and not feel tired.
  3. Automatic screw feeder with high efficiency can increase the processing efficiency for 2-4 times and save 1-3 people for each machine, thereby quickly save production costs.
  4. Stable performance, long service life, no special maintenance is required. And occasional failure processing time does not exceed 1 minute, which will not delay production progress.

Specification:

ModelCHN-ASF-4255
Shipping weight5kg

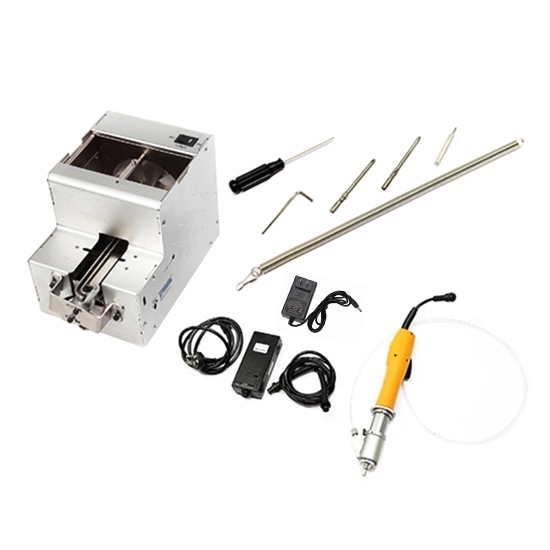

Packaging included1 * Automatic screw feeding device
1 * Electric screwdriver
1 * Electric screwdriver assembly
2 * Electric screwdriver bits
1 * Feeding pipe
1 * 2.0mm hexagonal screwdriver
1 * 2.5mm hexagonal screwdriver
1 * Spring support
2 * Power adapter with cable
Power supply220VAC, 50Hz
Rated power40W
Screw feeding methodNon-air-blowing type. Just put screw feeding device in a high position.
Screw feeding speed80~120pcs/min
Screw locking speed0.5~1pcs/s
Screw feeding device parameterDiameter: 180*126*140mm (L*W*H)
Working voltage: 15VDC (2000mA)
Weight: 2.5kg
Capacity of screw storage box500~3000pcs (according to screw size)
Screwdriver parameterDiameter: 230*42.5mm
Internal motor: Brushless DC motor
Motor speed: 1000-1800rpm
Working voltage: 32VDC (3A)
Torque range: 0.5-25Nm
Weight:750g
Screwdriver assembly parameterMaterial: Aluminium alloy + stainless steel
Diameter: 32-36mm
Weight: 150g
Types of screwdriver assembly *1. Assembly length: 146mm, maximum depth of bolt hole: 17mm
2. Assembly length: 166mm, maximum depth of bolt hole: 37mm
Types of screw *Material: all
Thread: all
Total length of screw: 4-16mm
Diameter of nut: 2.3-8.0mm
Thickness of nut: 0.5-3.5mm
Types of nut: See details as above types of nut diagram
Note: It is best to contact our customer service to confirm whether your screws are suitable for this model, especially nonstandard screws need to be given detailed dimensions and pictures.
Warranty2 years

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

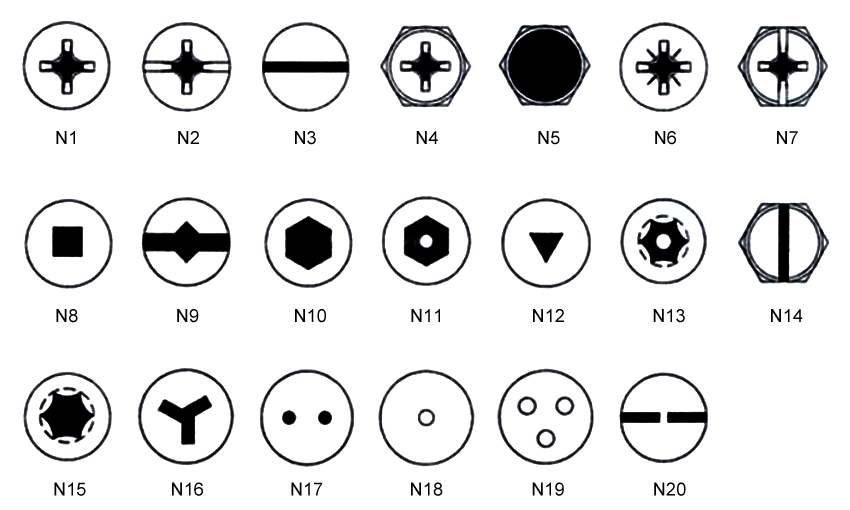

Types of nut diagram:

Types of nut for handheld automatic screw feeder

Tips: Handheld automatic screw feeder maintenance

  1. Regularly clean and maintain the screw feeding device to ensure that the storage box is clean. It is recommended to use the high-pressure airbrush to sweep the residue in the screw storage box.
  2. Regularly clean the entire track to ensure the smooth running of the screw in the track.
  3. Regularly clean the screw delivery system to ensure the smooth operation of screw delivery and locking.
  4. Add an appropriate amount of grease to the parts.
  5. Turn off the power when not in use.
