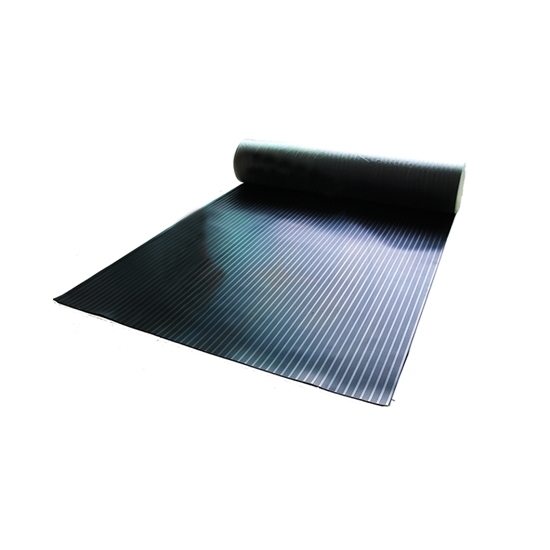

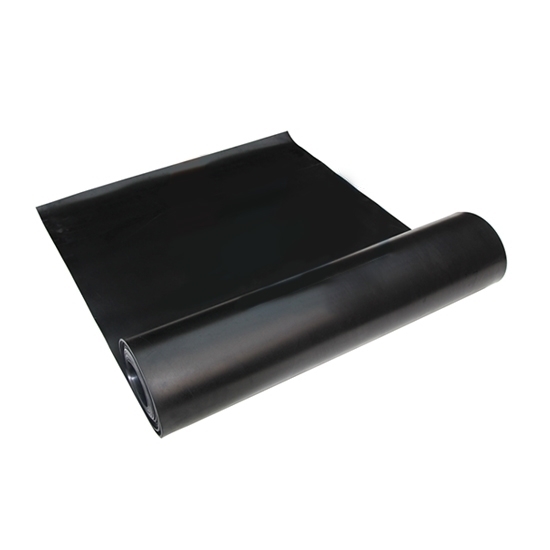

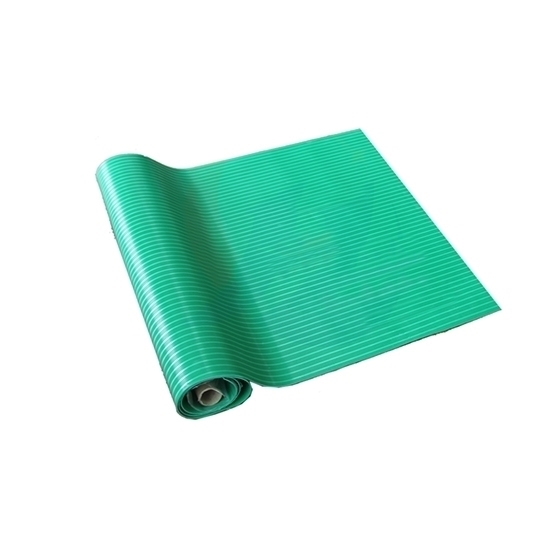

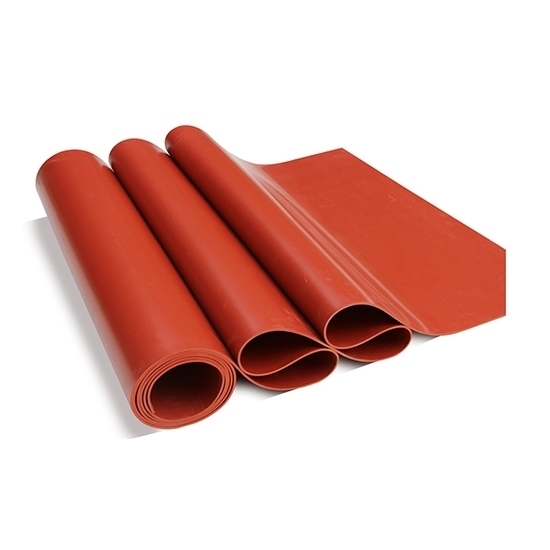

Insulation Rubber Sheet, 5mm*10kV

Home > Tools > Rubber Sheets

Send Inquiry

Insulation Rubber Sheet, 5mm*10kV

$46.85

The 5mm*10kV insulating rubber sheet has good strong elasticity, superior insulation performance, shiny surface. You can'

SKU: CHN-RS-01-5mm

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Features

The 5mm*10kV insulating rubber sheet (also called: Insulating rubber, insulating bench pad, insulating rubber pad) is an abbreviation of insulating rubber sheet with a large volume resistivity and resistance to electrical breakdown. It is made of non-polar rubber with excellent insulation properties such as NR, SBR and IIR. It is the materials for countertops or floor coverings in work places such as power distribution.

Selection configuration table

You can choose the rubber sheet you need according to your requirements. And 5kg is our minimum order quantity.

Basics	Model	CHN-RS-01-5mm
	Thickness	5mm
	Width	1m
	Conventional specifications	50kg standard part

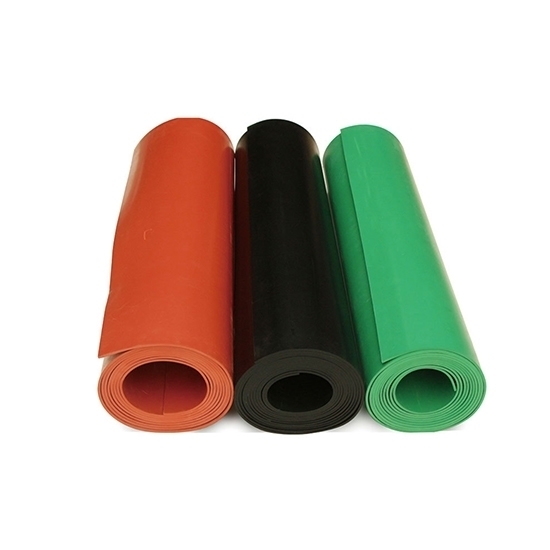

	Color	Black Red Green
	Pressure resistance	10kV
Technical Parameters	Electrical insulation performance test	10kV
	Time required for power frequency withstand voltage test	1min
	actual test measurement time	2min
	Measured value of power frequency withstand voltage experiment	≥10kV
	Hardness (Shore A)	55-70
	Tensile strength (Mpa)	≥5.0
	Elongation at break	≥250%
	Fixed elongation (150%) permanent deformation	≤25%
	Hot air aging (70℃*72h): the reduction rate of tensile strength	≤30%
	Water absorptio	≤1.5%

Tips: Insulating rubber sheets types

Divided by color: red insulating rubber sheet, black insulating rubber sheet, green insulating rubber sheet, gray insulating rubber sheet.
Divided by voltage level: 5kV, 10kV, 15kV, 20kV, 25kV, 30kV, 35kV.
According to the thickness, it can be divided into: 3mm, 5mm, 8mm, 10mm, 12mm.
According to the name, it can be divided into: Insulating rubber sheet, insulating rubber pad, insulating sheet, insulating blanket, electrical insulating rubber sheet.
