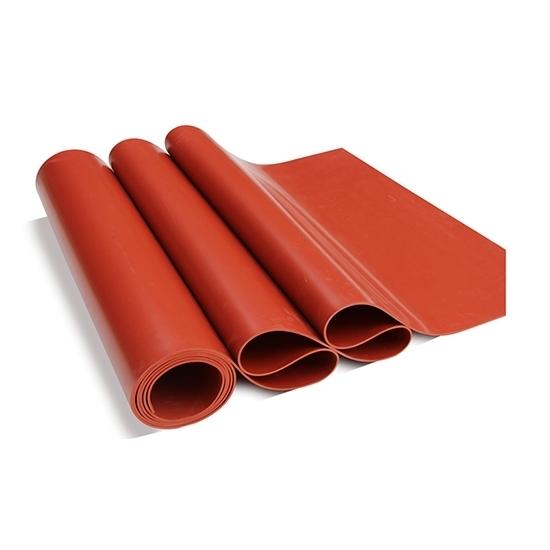

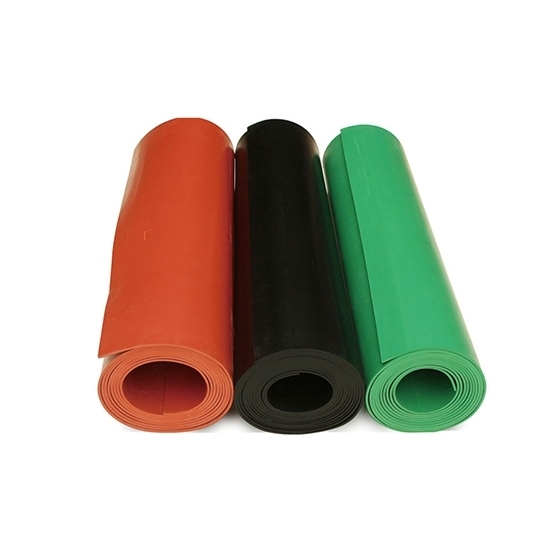

Insulation Rubber Sheet, 3mm*5kV

Applications

The 3mm*5kV insulating rubber sheet has good physical and mechanical properties and excellent insulation properties. It can work in a dry environment with high dielectric coefficient requirements in the air of -35~+100℃. It is suitable for laying workbenches and grounds in electronic places, laying and installing grounds in power stations and substations.

Selection configuration table

You can choose the rubber sheet you need according to your requirements. And 5kg is our minimum order quantity.

Tips: Insulating rubber sheet structure

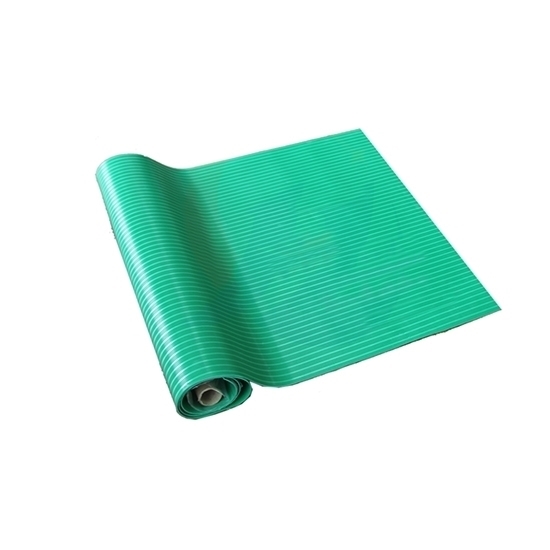

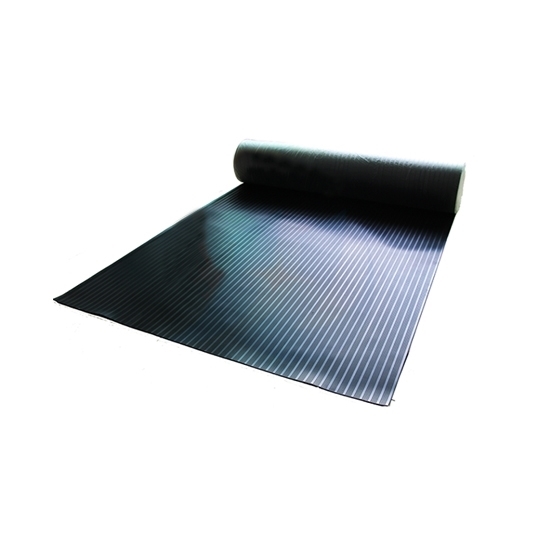

The insulating rubber sheet should be made of rubber-like insulating materials, and the upper surface should be designed with wrinkles or diamond patterns to enhance the anti-skid performance of the surface, and the back can be made of cloth or other anti-skid materials.

Insulating rubber sheet quality Standard:

1. Appearance: Spots or unevenness. The depth or height must not exceed the thickness tolerance of the rubber pad.
2. Bubbles: No more than 5 bubbles with an area less than 1cm² per square meter, and the distance between any two bubbles is not less than 40mm.
3. Impurities: The depth and length shall not exceed the thickness of the rubber pad and shall not be less than 40mm.
4. Uneven edges or spongy: Width no more than 10mm, length no more than 1/10 of the total length of the rubber pad.
5. Cracks: Not allowed.
