Home > Tools > Inkjet Printer

Send Inquiry

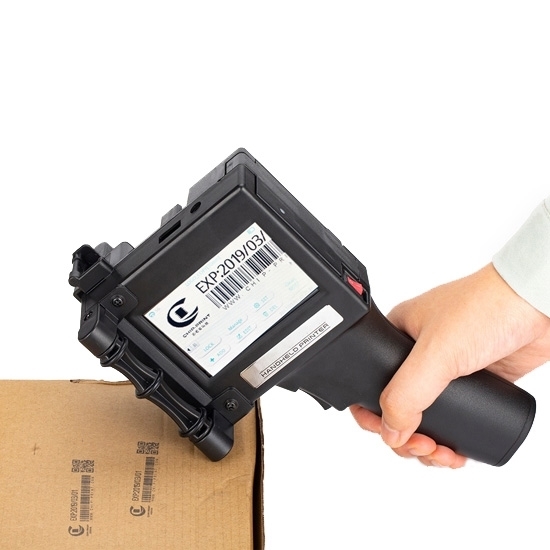

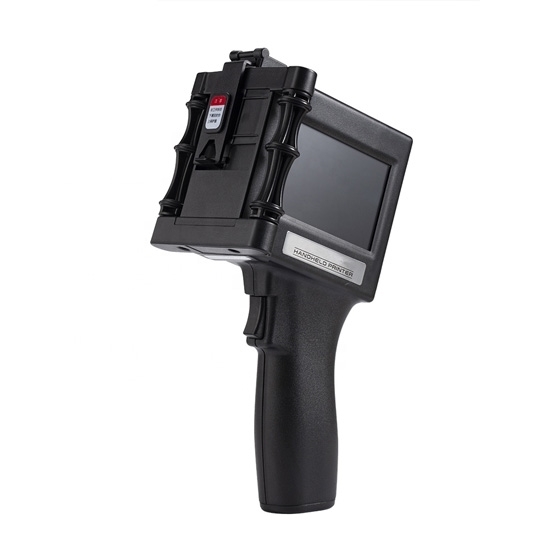

Handheld Inkjet Printer Barcode/QR Code/Expiry Date

$653.84

Competitive price handheld inkjet printer with 3.5" touch screen, offers high quality printing up to 600DPI at 360 degre

SKU: CHN-PRINT-02

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Features

Handheld inkjet printer is designed with 3.5" touch screen for precise and convenient operation.
Up to 600DPI printing accuracy, 2-13mm printing height, and 2-5mm printing distance
Capable of printing on various materials like block board, box, stone, medium density fiber board, stainless steel, pipe, metal, plastic, aluminum foil, cable, etc.
Suitable for printing a variety of content including English, Chinese, figure, symbol, QR code, barcode, picture, time, date, etc.
The handheld inkjet printer can be directly inserted into the USB flash disk to import printing information.
With light weight, fast & smooth printing and long continuous printing time, this handheld printer is very suitable for small-scale production.

Specification

Model	CHN-CP-BS12501BK	CHN-CP-BS12502BK
Printing Precision	Standard 300DPI, Quality 600DPI, Grayscale (4 gears adjuatable)
Spray Line	1 - 7 lines adjustable
Printing Height	2-13mm adjustable
Printing Distance	2-5mm (print nozzle and the spray object distance)
Pinting Direction	360 degree
Printing Speed	Up to 70m/min (continuous printing)
Printing Front	High definition front, bitmap font (You can import other Chinese and English via USB.)
Printing Picture	Imported from USB flash disk
Serial Number	1-8 variable
Support Materials	Block board, carton, stone, medium desity firberboard, steel, tube, metal, plastic, aluminum foil, cables, paper, etc.
Ink Cartridge Capacity	42mL
Ink Type *	Solvent ink: black	Water-based ink: black
Battery	2600mAh Lithium battery
Continuous Printing Time	More than 7 hours
System Power Consumption	≤5W
Control Panel	3.5 inch touch screen
Information Storage	Up to 100 messages can be stored
External Interface	USB port
Working Environment	Temperature: 0℃ ~ 40℃ Humidity: 10% ~ 80%RH
Size	110mm90mm230mm
Weight	550g
Packing List	Handheld printer×1, Position Plate×1, Ink Cartridge×1, Power adapter×1, USB flash disk, User Manual×1 (* Note: ONE ink cartridge is included in the standard packing list. If needed, you can buy additional ink cartridges from drop-down list of Accessories.)

Note:
* Solvent ink is used for printing on plastics, glass, metal, pipes, stone products, wood, medium density fiberboard, aluminum foil, cables and films, etc.
* Water-based ink is suitable for printing on the hygroscopic materials such as paper and carton.

Printing Materials & Content

Tips: Handheld Inkjet Printer Ink Cartridge Use and Maintenance

1. What’s the capacity of ink cartridge? How long can I use it?

The cartridge of this inkjet printer has a capacity of 42mL and can be replaced after it is used up. The ink cartridge can print about 50,000~100,000 characters for 10mm Font size, or 300,000 characters for 2mm Font size (here just for your reference, the specifice use is also related to the print sprayscale, etc.). Toner life depends on how it actually works. There may be less than one month for frequent use or up to one year for rare use. The ink cartridge is very durable, high definition and resistant to loss. It comes with a dedicated protective cover. After use, it should be closed to prevent the nozzle from drying out, which also effectively keep nozzle from clogging and prolong the life of the printer.

2. What should I do if I don't print for a long time?

Turn off the handheld printer.
Put some clean soft paper or cloth in front of the nozzle and save it with its special cover. Be careful not to damage the head of ink cartridge.
To prevent dust from entering, please store the machine in a dry place and keep it in a temperature range of 5°C to 40°C.
