Handheld hot knife foam cutter is greatly suitable for continuous cutting work with air-cooling system. This electric cutting tool heats instantly and makes fast, clean & precise cuts, mainly used for cutting Expanded Polystyrene EPS foam and Extruded Polystyrene XPS foam in industrial and commercial environments.
Features
- With air-cooling system, hot knife can be operated continuously.
- Excellent for cutting EPS/XPS foam board, fast and clean.
- Temperature can reach up to 500℃ in seconds.
- Variable temperature control via adjustable knob, total 16 steps.

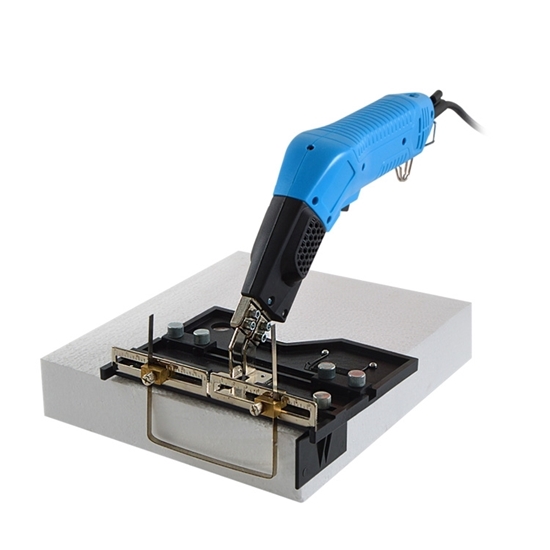

- With groover-sled (Optioanl), allowing to cut different foam shape easily for DIY sculpture or artwork.
Specification
Model | CHN-KD-7H |
Voltage | AC 230V 50Hz |
Power | Max. 190W |
Operation Time | 24 hrs continuously operation |
Adjustable Knob | 16 steps |
Max. Temperature | 500℃ |
Power Cord Length | 3m |
Power Plug (Optional) * | US/Europe/UK/Australia |
Product Weight | 610g |
Handle Length | 320mm |

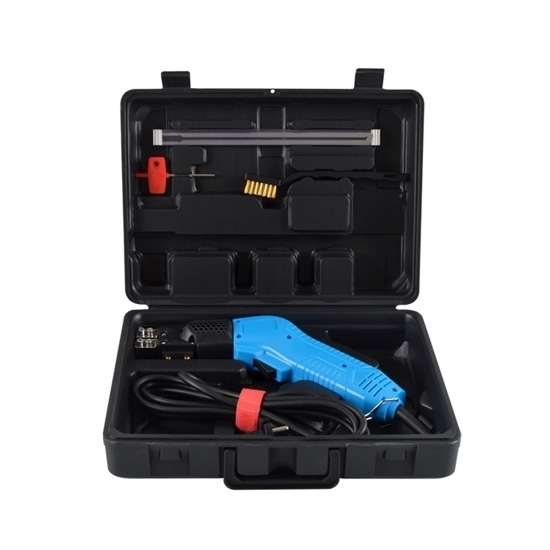

Package Included (Optional) | 1#. Foam Cutter + Straight Blade 200mm + Spanner + Brush + Plastic Box + User Manual 2#. Foam Cutter + Large Groover- sled + Flexible Blade 305mm + Straight Blade 150mm + T-square + Spanner + Brush + Plastic Box + User Manual 3#. Foam Cutter + Small Groover- sled + Flexible Blade 305mm + Straight Blade 150mm + Spanner + Brush + Plastic Box + User Manual 4#. Foam Cutter + Cutting Guider + Straight Blade 150mm + T-square + Spanner + Brush + Plastic Box + User Manual |
Note:
* Usually, the foam cutters with UK/Australia need longer delivery time (5-10 days).
Hot Knife w/ 20cm Blade for Cutting EPS/XPS
Items | EPS Foam Board | XPS Foam Board |
Cutting Length | 100cm | 100cm |
Foam Thickness | 20cm | 20cm |
Foam Density | 15Kgs/M³ | 32Kgs/M³ |
Cutting Speed (including preheating time) | 32 seconds | 52 seconds |

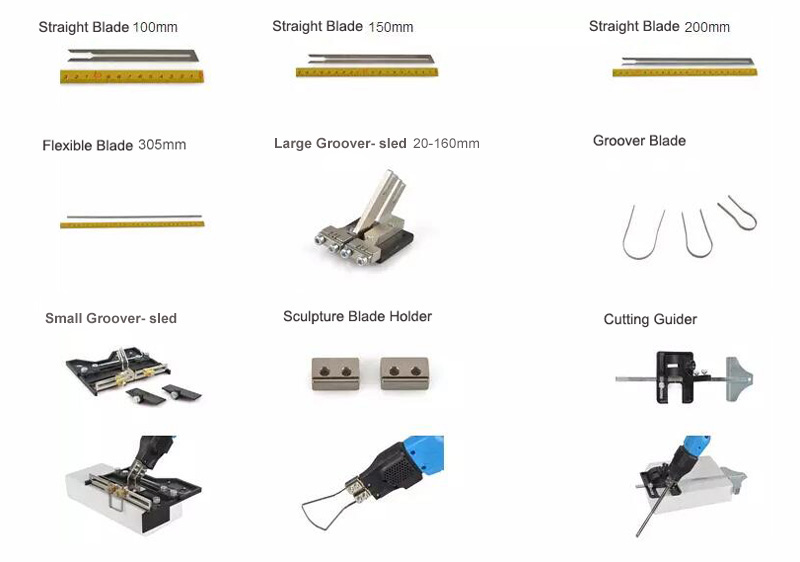

Foam Cutter Accessories

Note: If you need any extra accessories that is not included in the package, please contact us.
Tips: Hot Knife Foam Cutter Installation Notes
- After the foam cutter has cooled, unscrew the nut.
- Insert the two feet of the blade into the two blade holders and tighten the nuts.
Make sure that the blade and holder are in full contact. If the blade of hot knife is not installed properly, the blade will not be heated. - Power on the foam cutter.
- The temperature adjustment knob of the cutter has 16 steps. You can adjust a suitable temperature according to the cutting requirement.
Handheld foam cutter can be used continuously with air cooling system. The 200mm blade on this hot knife can heat up to 500℃ in seconds to give you fast & clean cutting without mess, great for EPS, XPS, etc., for commercial and industrial use. Electric foam cutter is supplied via AC 230V 50Hz and max. power 190W, designed with variable temperature control, light weight, high efficiency and favorable price.
