Portable electric trailer winch is designed to load your boats and vehicles onto trailers quickly and easily. Buy ATO electric boat trailer winch kit helping you avoid those embarrassing moments at the ramp.
Feature
- Electric boat winch is portable power trailer winch for pulling boats, stuck vehicles and other heavy items.
- With powerful 3500 lbs pulling capacity.
- 12V DC powered for convenient use without extension cords or small gas engines.
- Built-in carrying handle and quick-attach mounting plate.
Specification
Model | CHN-B3500LB |
Single Line Rated Pull | 3500 lbs (1588kgs) |
Voltage | 12V DC |
Motor | 0.54hp (400W) |
Gearing | Gear Gearshift |
Drum Speed | 1.2m/min |
Drum Size (Dia x L) | Ø25mm x 82mm |
Wire Rope | Ø4.8mm x 9.2m |
Remote Switch Cable Length | 3m (10 ft.) |
Electric Cable Length | 3m (10 ft.) |
Pulley Block | Optional |
Overall Dimensions (L x W x H) | 266.5 x 256.5 x 216.5mm |
Packing Size | 580 x 400 x 280mm |
Protection Grade | IP67 |
Gross Weight | 24kg |
Net Weight | 22kg |
Package Included
1 | 1 x 3500 lbs Electric Boat Winch |
2 | 1 x Clevis hook |
3 | 1 x Wired remote controller |
4 | 1 x Universal mounting plate |
5 | 1 x Winch cable |
6 | 1 x Set of bolts |
7 | 1 x User manual |

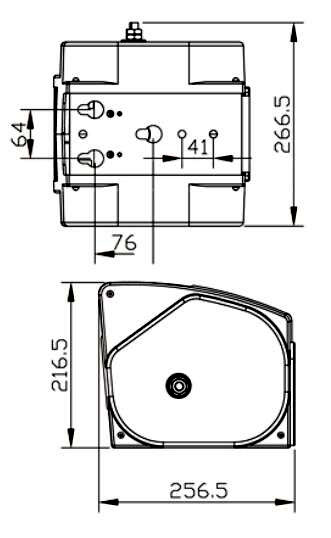

Dimensions (Unit: mm)

Tips: How often to maintain electric boat trailer winch
The daily maintenance of electric boat winch should be carried out every time the sailboat returns to port, and the process is relatively simple. The outside of the electric boat trailer winch should be cleaned with fresh water and dried with a cloth. In addition, non-abrasive cleaning agents should be used occasionally to remove dirt residues on the surface. Avoid contacting the teak cleaner with the electric winch when cleaning the deck, because the former will corrode the winch and cause discoloration.
The electric boat winch should be maintained 2-3 times during the active sailing season. According to the frequency and intensity of the sailboat, the frequency of maintenance should be matched, but even if it is not used for a whole year, it should be carried out at least once. If it is used in a seawater environment, the frequency of maintenance required for the electric winch needs to be increased.
12V DC electric boat winch is used for loading and unloading a boat from the trailer. Portable electric power winch can haul 3500 lbs boat and other heavy vehicles easily. Comes with 0.54hp (400W) motor and wired remote control.
