Model	CHN-B2000LB
Single Line Rated Pull	2000 lbs (907kgs)
Voltage	12V DC
Motor	0.4hp (280W)
Gearing	Gear Gearshift
Drum Speed	1.8m/min
Drum Size (Dia x L)	Ø25mm x 82mm
Wire Rope	Ø4.8mm x 9.2m
Remote Switch Cable Length	3m (10 ft.)
Electric Cable Length	3m (10 ft.)
Pulley Block	Optional

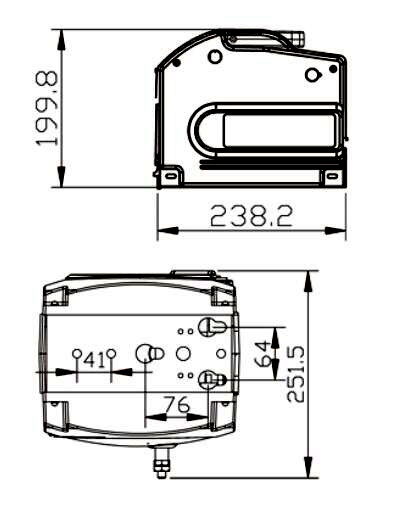

Overall Dimensions (L x W x H)	251.5 x 238.2 x 199.8mm
Packing Size	570 x 380 x 300mm
Protection Grade	IP67
Gross Weight	24kg
Net Weight	22kg

1	1 x 2000 lbs Electric Boat Winch
2	1 x Clevis hook
3	1 x Wired remote controller
4	1 x Universal mounting plate
5	1 x Winch cable
6	1 x Set of bolts
7	1 x User manual
