Model	CHN-DC12025SLL		CHN-DC12025SLM		CHN-DC12025SLH
Rated Voltage	12V	24V	12V	24V	12V	24V
Bearing Type	Oily
Rated Current	0.09A	0.08A	0.2A	0.13A	0.27A	0.07A
Input Power	1.08W	1.92W	2.4W	3.12W	3.24W	1.68W
Fan Speed	1000±10%RPM		1500±10%RPM		2000±10%RPM
Air Flow	33.5CFM		50.2CFM		67CFM
Static Pressure	1.4mm-H2O		2.0mm-H3O		2.7mm-H2O
Noise	19dB-A		28dB-A		37dB-A

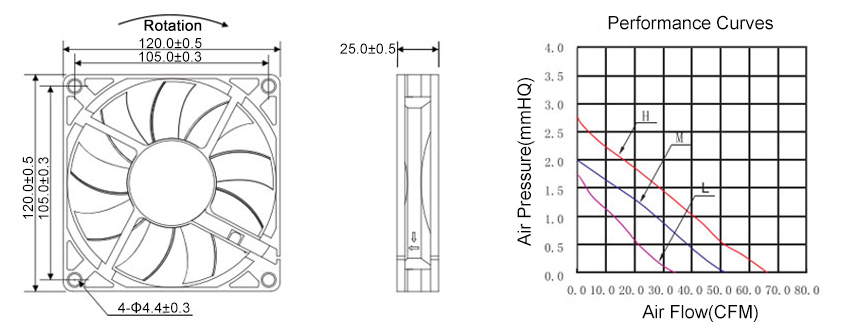

Dimension	120mm x 120mm x 25mm
Material	Plastic
Certificate	CE, UL
Fire Rating	UL94V-0
Operating Temperature	-10 ℃ ~ 70 ℃
Operating Humidity	35% ~ 85RH
Storage Temperature	-40 ℃ ~ 70 ℃
Storage Humidity	35% ~ 85RH
