Home > Tools > DC Cooling Fan

Send Inquiry

12V/24V DC Cooling Fan, 80mm x 80mm x 25mm

$29.89

12v dc brushless cooling fan, low price, 80mm x 80mm x 25mm, rated voltage 12 volt and 24 volt is optional, rated current 0.0

SKU: CHN-CF-DC8025

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

80mm 12V DC cooling fan for sale, oily or ball bearing type is available, 24V DC brushless cooling fan input power 1.92W/2.88W/3.12W, direct sales by manufacturer.

Specifications:

Model

CHN-DC8025SLL

CHN-DC8025BLL

CHN-DC8025SLM

CHN-DC8025BLM

CHN-DC8025SLH

CHN-DC8025BLH

Rated Voltage

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

Bearing Type

Oily

Ball

Oily

Ball

Oily

Ball

Rated Current

0.08A

0.08A

0.08A

0.08A

0.13A

0.1A

0.13A

0.1A

0.15A

0.13A

0.15A

0.13A

Input Power

0.96W

1.92W

0.96W

1.92W

1.56W

2.88W

1.56W

2.88W

1.8W

3.12W

1.8W

3.12W

Fan Speed

1800±10%RPM

2200±10%RPM

2800±10%RPM

Air Flow

21.2CFM

25.9CFM

33CFM

Static Pressure

1.5mm-H2O

1.9mm-H2O

2.9mm-H3O

Noise

22dB-A

27dB-A

32dB-A

Dimension

80mm x 80mm x 25mm

Material

Plastic

Certificate

CE, UL

Fire Rating

UL94V-0

Operating Temperature

-10 ℃ ~ 70 ℃

Operating Humidity

35% ~ 85RH

Storage Temperature

-40 ℃ ~ 70 ℃

Storage Humidity

35% ~ 85RH

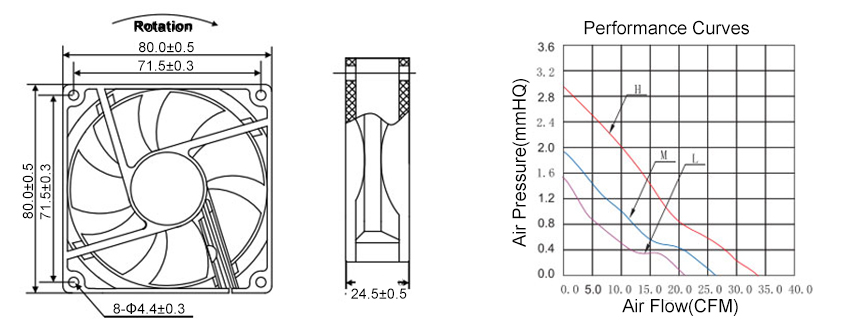

Dimensions and Curves (unit: mm)

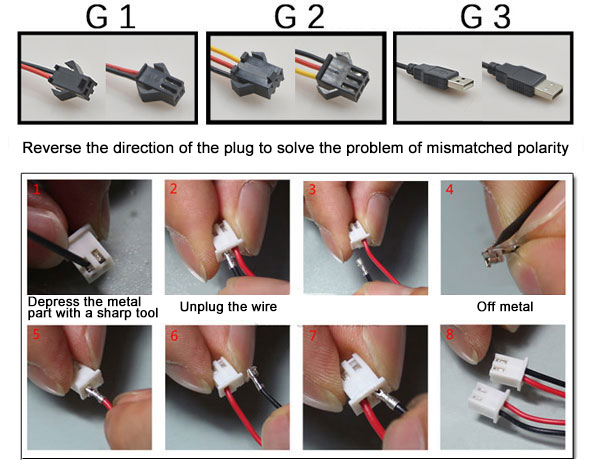

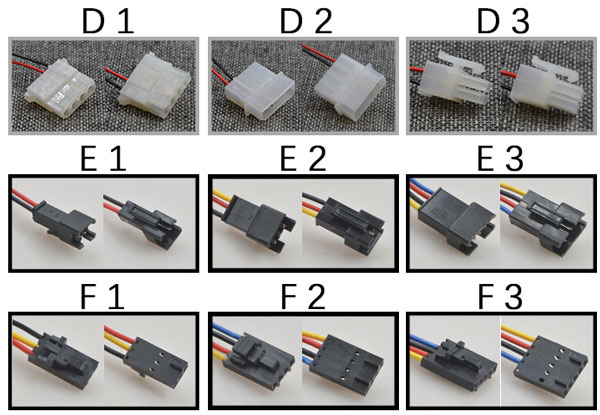

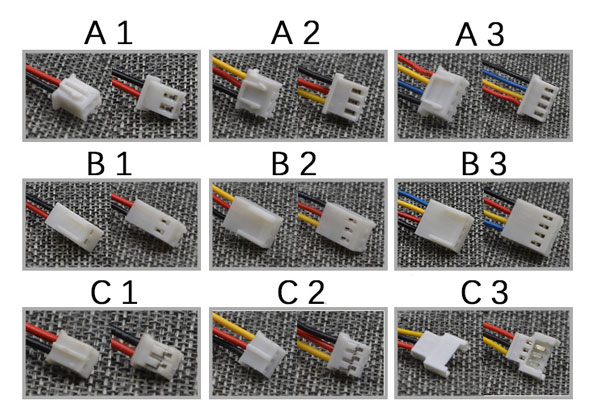

DC Cooling Fan Interface

Tips: Applications of DC cooling fans
1. DC cooling fans are used in industry.
2. DC fans are used in computers.
3. DC fans are used in automobiles. Driven by power and having non-rail bearing vehicles with 4 or more wheels, it is mainly used to carry personnel and / or cargo; towing vehicles carrying personnel and / or cargo.
4. DC cooling fan is used in communication equipment: Communication equipment is divided into wired communication equipment and wireless communication equipment. Wired communication equipment mainly introduces serial communication, professional bus-type communication, industrial Ethernet communication, and various communication protocols. Conversion equipment.
