Home > Tools > DC Cooling Fan

Send Inquiry

12V/24V DC Cooling Fan, 60mm x 60mm x 15mm

$26.89

Small DC cooling fan dimenson 60mm x 60mm x 15mm, 12V/24V for selection, cooling fan speed of 3000rpm/3500rpm/4000rpm, low pr

SKU: CHN-CF-DC6015

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

12 volt / 24 volt dc cooling fan dimensions 60mm x 60mm x 15mm, high efficiency, superior performance, are widely used in computers, communications products, optical products, and cars.

Specifications:

Model

CHN-DC6015SLL

CHN-DC6015BLL

CHN-DC6015SLM

CHN-DC6015BLM

CHN-DC6015SLH

CHN-DC6015BLH

Rated Voltage

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

Bearing Type

Oily

Ball

Oily

Ball

Oily

Ball

Rated Current

0.09A

0.07A

0.09A

0.07A

0.1A

0.08A

0.1A

0.08A

0.12A

0.1A

0.12A

0.1A

Input Power

1.08W

1.68W

1.08W

1.68W

1.2W

1.92W

1.2W

1.92W

1.44W

2.4W

1.44W

2.4W

Fan Speed

3000±10%RPM

3500±10%RPM

4000±10%RPM

Air Flow

12.4CFM

14.4CFM

16.5CFM

Static Pressure

1.9mm-H2O

2.2mm-H2O

2.5mm-H3O

Noise

25dB-A

29dB-A

33dB-A

Dimension

60mm x 60mm x 15mm

Material

Plastic

Certificate

CE, UL

Fire Rating

UL94V-0

Operating Temperature

-10 ℃ ~ 70 ℃

Operating Humidity

35% ~ 85RH

Storage Temperature

-40 ℃ ~ 70 ℃

Storage Humidity

35% ~ 85RH

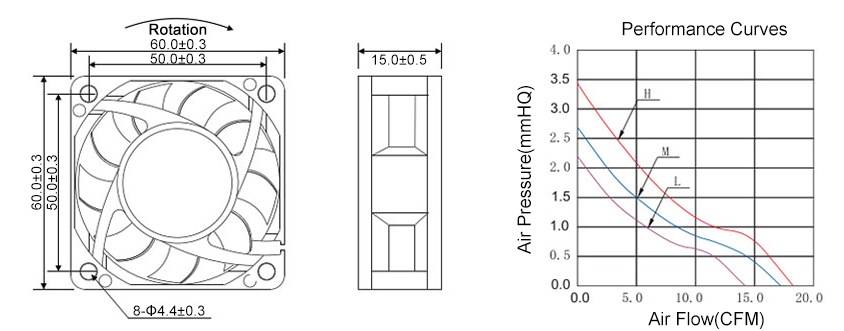

Dimensions and Curves (unit: mm)

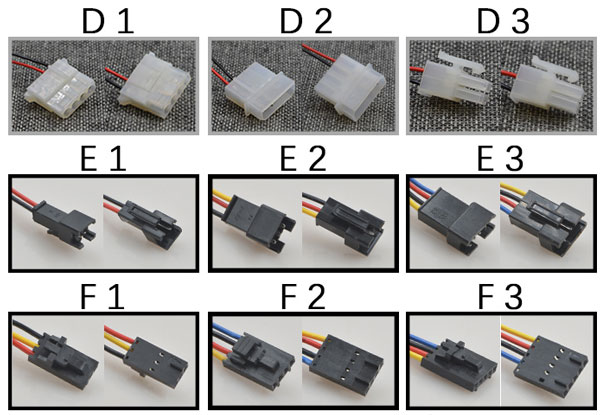

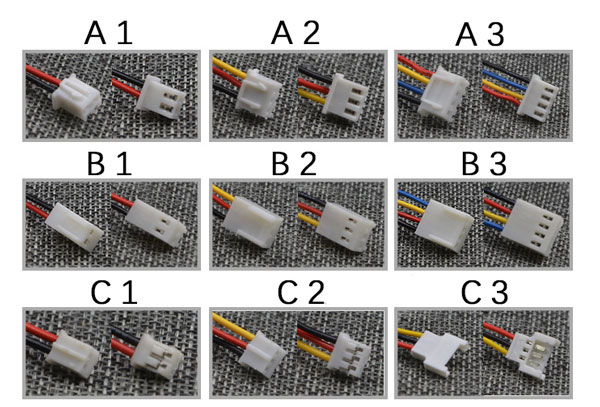

DC Cooling Fan Interface

Tips: What is the air volume and air pressure of the cooling fan?
The cooling fan air volume refers to the total volume of air sent or drawn by the fan per minute. The unit of air volume often used in fan products is CFM, which is Cubic Feet per Minute.
When the materials are the same and the heat dissipation principle is the same, the air volume is the most important index to measure the heat dissipation capacity. Simply put, a fan with a larger air volume has a higher heat dissipation capacity. This is because the heat capacity of air is constant, and the larger the air volume, that is, the more air can take away more heat per unit time. The air pressure of a cooling fan is also called static pressure, which refers to the difference in air pressure between the fan's air inlet and air outlet. Usually, the unit is millimeter of water column height (mmH2O) or inch of water column height (inchH2O).
