Home > Tools > DC Cooling Fan

Send Inquiry

12V/24V DC Cooling Fan, 50mm x 50mm x 15mm

$25.79

12V DC 50mm cooling fan for sale, 50mm x 50mm x 15mm, 12 volt or 24 volt cooling fan runs quietly, bearing type oily or ball

SKU: CHN-CF-DC5015

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

12V/24V DC brushless cooling fan 50mm x 50mm x 15mm, IP67, fan speed of 4000rpm/4500rpm/5000rpm, fireproof and waterproof.

12V/24V DC Cooling Fan Specifications:

Model

CHN-DC5015SLL

CHN-DC5015BLL

CHN-DC5015SLM

CHN-DC5015BLM

CHN-DC5015SLH

CHN-DC5015BLH

Rated Voltage

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

Bearing Type

Oily

Ball

Oily

Ball

Oily

Ball

Rated Current

0.06A

0.07A

0.06

0.07A

0.06A

0.1A

0.12A

0.1A

0.12A

Input Power

0.72W

1.44W

0.72W

1.44W

0.84W

1.44W

0.84W

1.44W

1.2W

2.88W

1.2W

2.88W

Fan Speed

4000±10%RPM

4500±10%RPM

5000±10%RPM

Air Flow

9.7CFM

10.9CFM

12.4CFM

Static Pressure

2.8mm-H2O

3.2mm-H2O

3.8mm-H3O

Noise

25.5dB-A

29dB-A

31dB-A

Dimension

50mm x 50mm x 15mm

Material

Plastic

Certificate

CE, UL

Fire Rating

UL94V-0

Operating Temperature

-10 ℃ ~ 70 ℃

Operating Humidity

35% ~ 85RH

Storage Temperature

-40 ℃ ~ 70 ℃

Storage Humidity

35% ~ 85RH

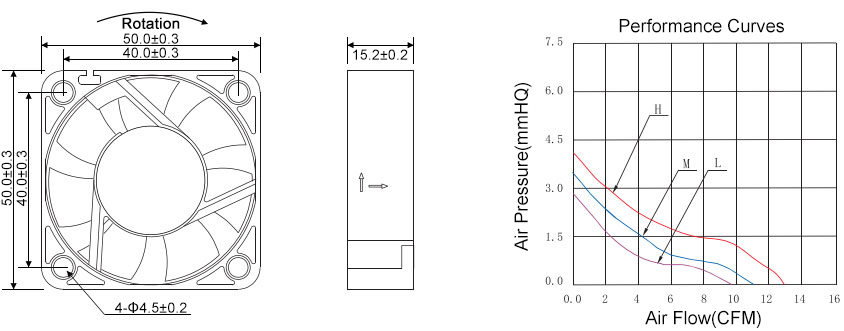

Dimensions and Curves (unit: mm)

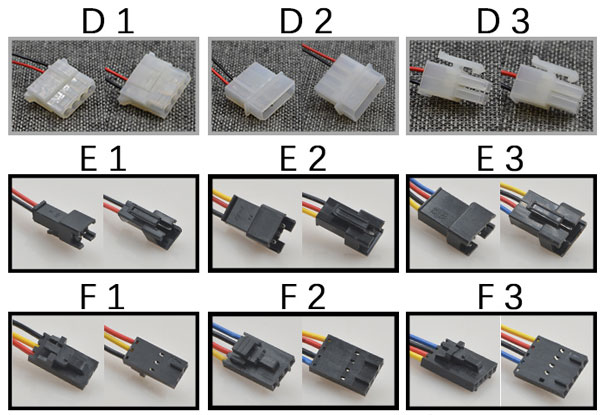

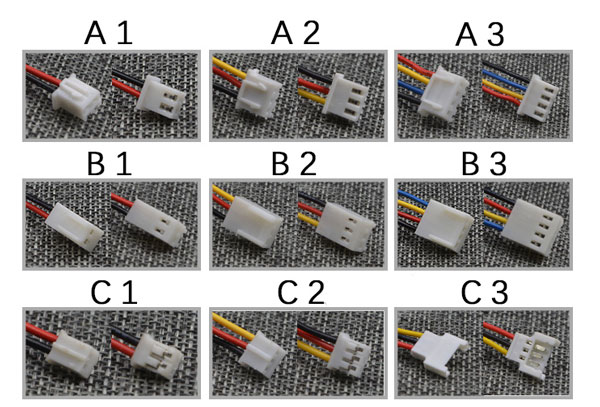

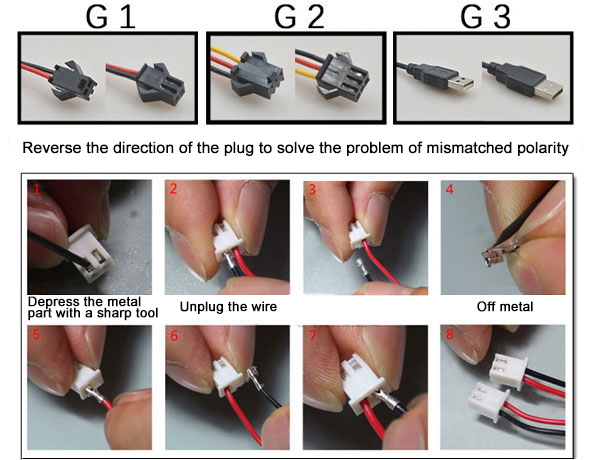

DC Cooling Fan Interface

Tips: DC cooling fan noise processing method
1. Select appropriate fan specifications and parameters according to the actual situation.
2. Regularly clean the dust and refuel the fans to reduce the conflict between the fans.
3. Put a sponge, rubber or cotton between the fan and the fixed end to reduce the noise caused by the feeling caused by the high speed rotation of the fan.
