Home > Tools > DC Cooling Fan

Send Inquiry

12V/24V DC Cooling Fan, 40mm x 40mm x 10mm

$19.86

12V/24V DC cooling fan for sale, price low, 40mm x 40mm x 10mm, high speed dc cooling fan 4000rpm, 5000rpm and 6000rpm is opt

SKU: CHN-CF-DC4010

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Small 12 volt or 24 volt dc cooling fan lowest price, manufacturers sell directly, air flow 4.2/5.2/6.4 CFM, bearing type oil or ball.

12V/24V DC Cooling Fan Specifications:

Model

CHN-DC4010SLL

CHN-DC4010BLL

CHN-DC4010SLM

CHN-DC4010BLM

CHN-DC4010SLH

CHN-DC4010BLH

Rated Voltage

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

Bearing Type

Oily

Ball

Oily

Ball

Oily

Ball

Rated Current

0.04A

0.03A

0.04A

0.03A

0.05A

0.04A

0.05A

0.04A

0.07A

0.05A

0.07A

0.05A

Input Power

0.48W

0.72W

0.48W

0.72W

0.6W

0.96W

0.6W

0.96W

0.84W

1.2W

0.84W

1.2W

Fan Speed

4000±10%RPM

5000±10%RPM

6000±10%RPM

Air Flow

4.2CFM

5.2CFM

6.4CFM

Static Pressure

1.6mm-H2O

2.0mm-H2O

2.8mm-H3O

Noise

21dB-A

24dB-A

28dB-A

Dimension

40mm x 40mm x 10mm

Material

Plastic

Certificate

CE, UL

Fire Rating

UL94V-0

Operating Temperature

-10 ℃ ~ 70 ℃

Operating Humidity

35% ~ 85RH

Storage Temperature

-40 ℃ ~ 70 ℃

Storage Humidity

35% ~ 85RH

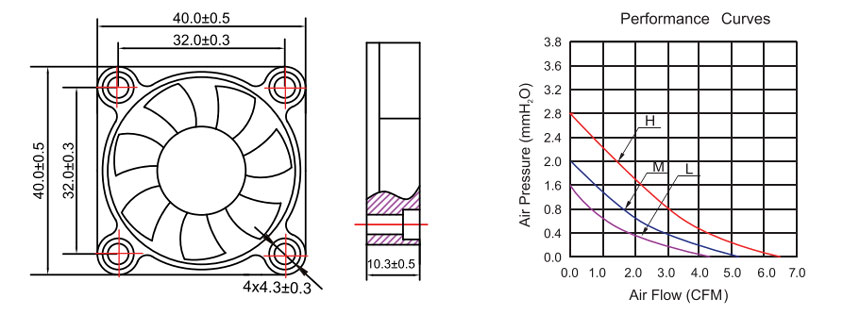

Dimensions and Curves (unit: mm)

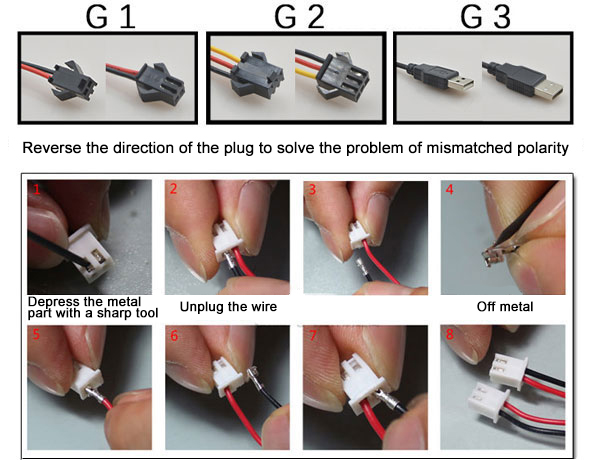

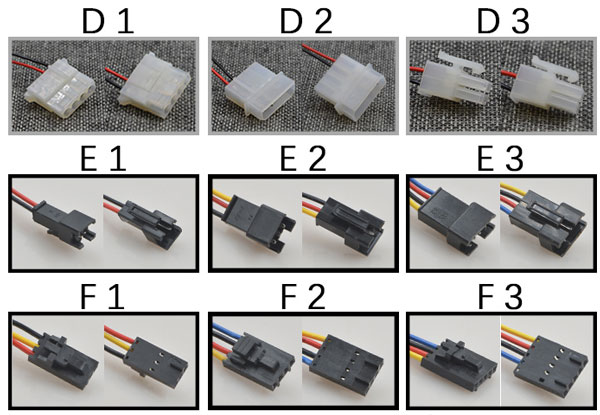

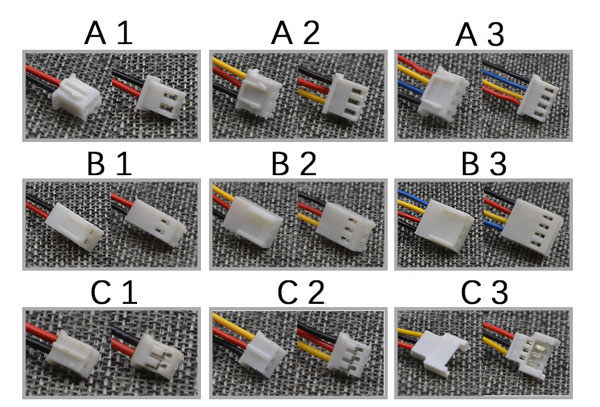

DC Cooling Fan Interface

Tips: How DC cooling fans work?

The core components of a DC cooling fan are a stator and a rotor. Through Ampere's right-hand rule, we know that when a conductor passes a current, a magnetic field is generated around it. If this conductor is placed in another fixed magnetic field, suction or repulsion will be generated, causing the object to move. Inside the fan blade of the DC fan, a rubber magnet filled with magnetism is attached in advance. Around the silicon steel sheet, the axis portion is wound with two sets of coils, and the Hall induction component is used as a synchronous detection device to control a set of circuits. This circuit makes the two sets of coils around the axis work in turn, so that the silicon steel sheet generates different magnetic poles. This magnetic pole produces a repulsive force with the rubber magnet. When the repulsive force is greater than the static friction of the lice fan, the fan leaves rotate naturally. Because the Hall sensor component provides a synchronization signal, the fan blade can continue to run. As for the direction of its operation, it can be determined by Fleming's right-hand rule.
