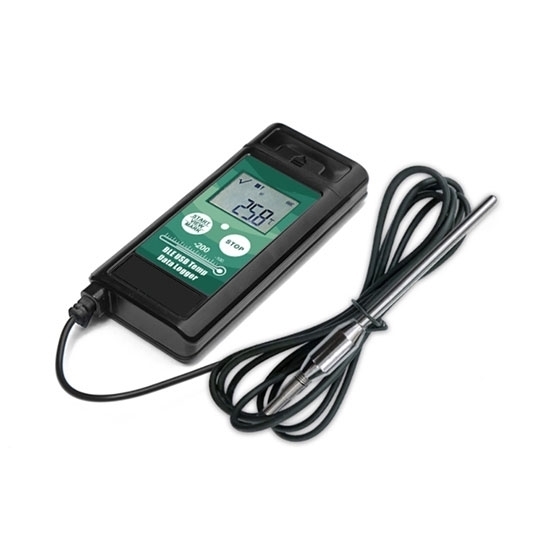

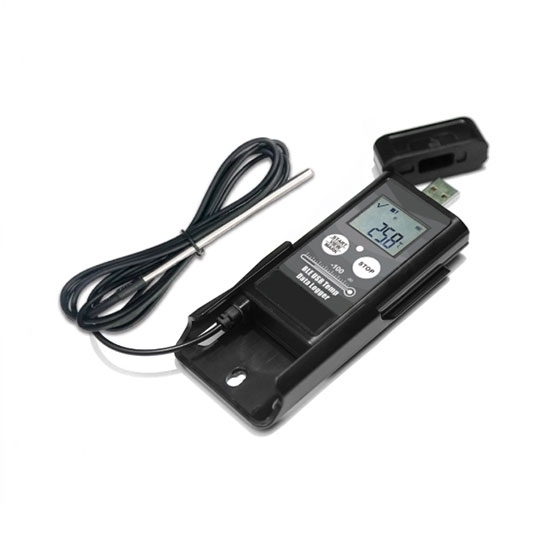

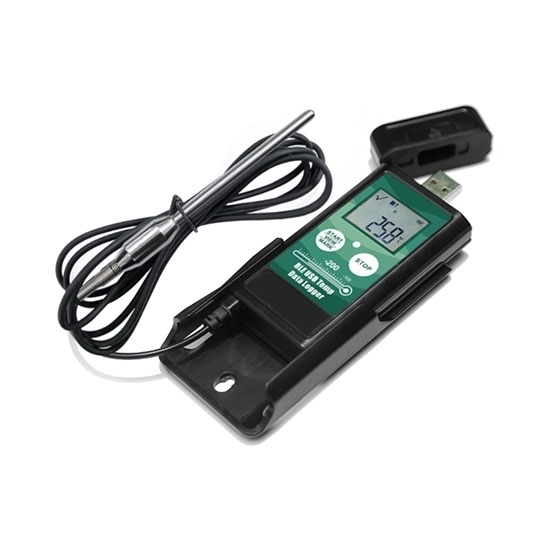

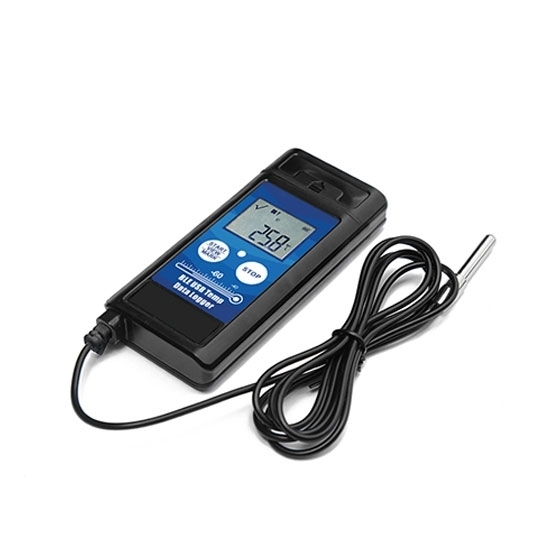

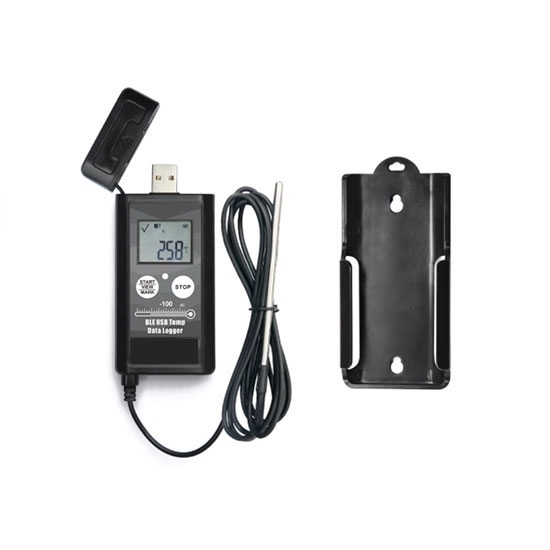

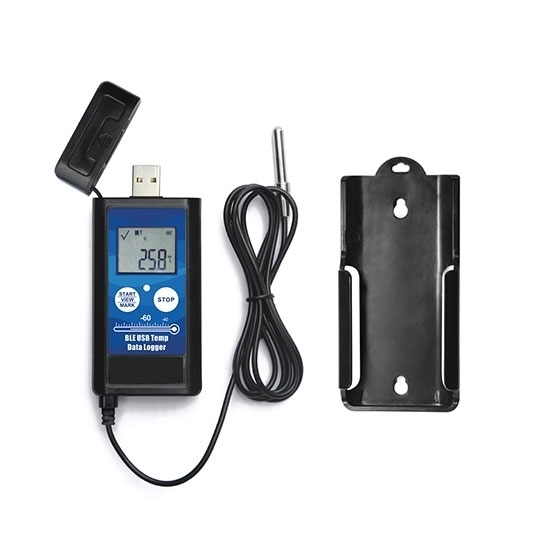

Temperature data logger with 1.5m external temperature probe is perfect for monitoring cryogenic freezers in -200℃. It has flight mode for air transportation, USB and Bluetooth connection to get PDF/CSV report or logging data.

Specification

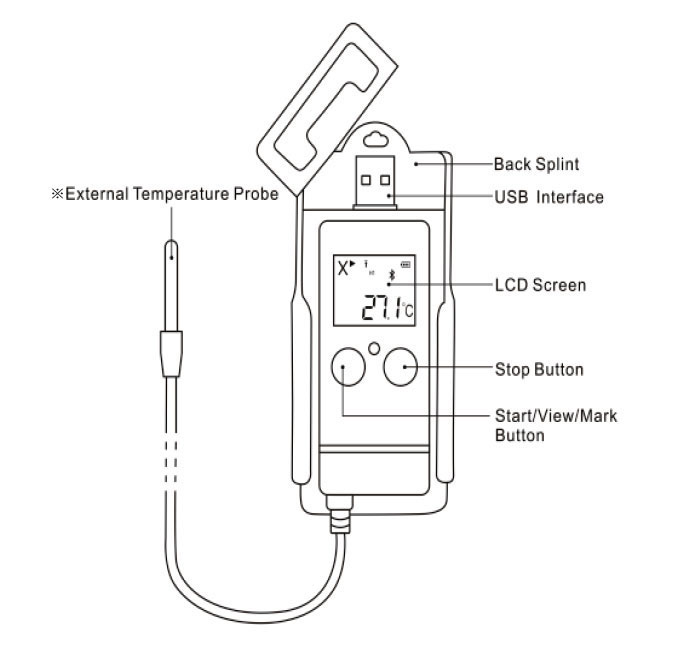

Details

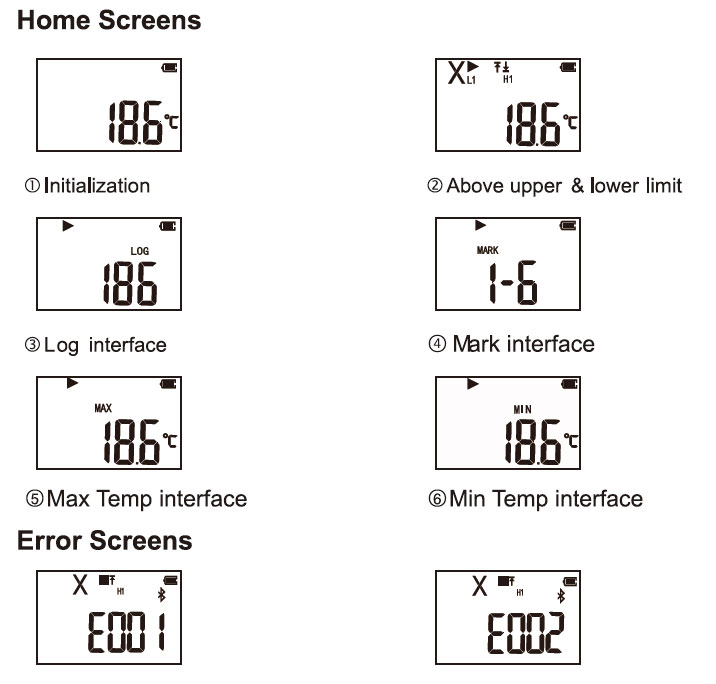

LCD Screen Display

If there E001 or E002 on the screen, please check:

• If the sensor is not connected or broken
• If over the temperature detect range

Applications

How to Use

1. Start recording
   Insert the sensor completely into the temperature data logger. Press and hold the left button for more than 3s until the LED light turns green, and the "▶" or "WAIT" displays on the screen, which indicates the logger is started.
2. Mark
   When the device is recording, press and hold the left button for more than 3s, and the screen will switch to the “MARK” interface. The number of “MARK” will increase by one, indicating data was marked successfully.
3. Stop recording
   Press and hold the right button for more 3s until the LED light turns red, and the "■" displays on the screen, indicating stop recording successfully.
4. Turn on/off Bluetooth
   Press and hold the two buttons for more than 3s at the same time, until the red light flashes quickly, and the Bluetooth logo displays on the screen or disappears, indicating the Bluetooth was turn on or off. If the temperature data logger is in flight mode, press and hold the two buttons for more than 3s will quit the flight mode.
5. Get report
   After recording, there are two ways to get report: connect the device with USB port of PC or using Temp Logger App on smart phone, it will automatically generate PDF and CSV report.
