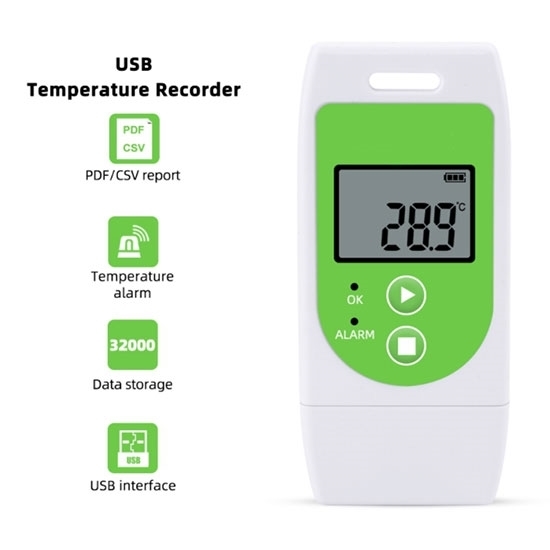

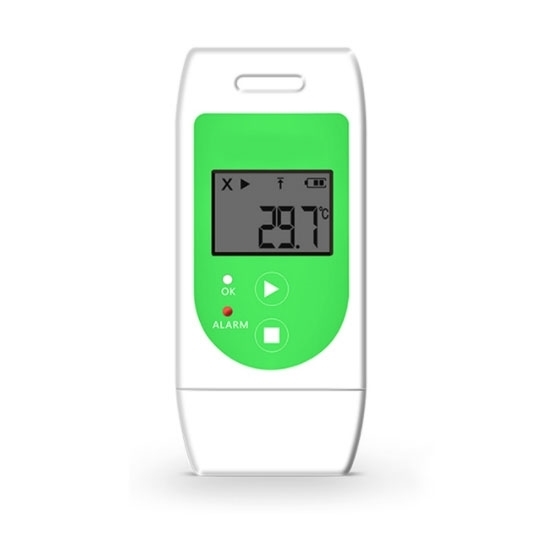

Model	CHN-TDL-U04
Usage Type	Multi-use

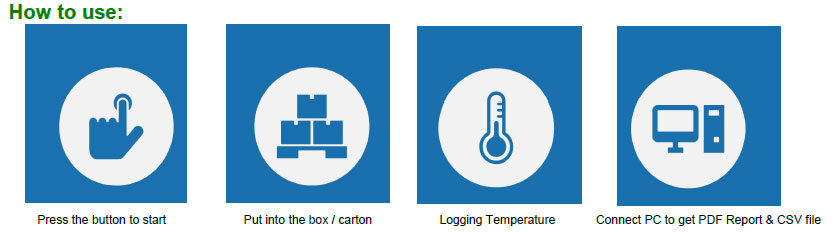

Recording Mode	Push-To-Start or Start Delay
Temperature Scale	℃ or ℉
Operating Range	-30℃ ~ 60℃
Accuracy	±0.5℃ (-20℃ ~ +40℃), ±1.0 (Other Range)
Resolution	0.1
Memory Capacity	32,000
Logging Interval	Programmable (10s ~ 18h) [Default: 10mins]
Start Delay	Programmable (0 ~ 254mins) [Default: 30mins]
Alarm Delay	Programmable (0 ~ 960mins) [Default: 10mins]
Alarm Range	Programmable high or low alarm limit [Default: <2℃ or >8℃, <40%RH or >80%RH]
Shelf Life / Battery	Typically 1 year, CR2032 3.0V Lithium Battery (Depending on sampling rate and environment)
Report Generation	Simultaneously generate PDF report and CSV file
Communication Interface	USB 2.0
Waterproof Level	IP65 (with Waterproof O-ring)
Time Zone	UTC + 0:00 (Default)

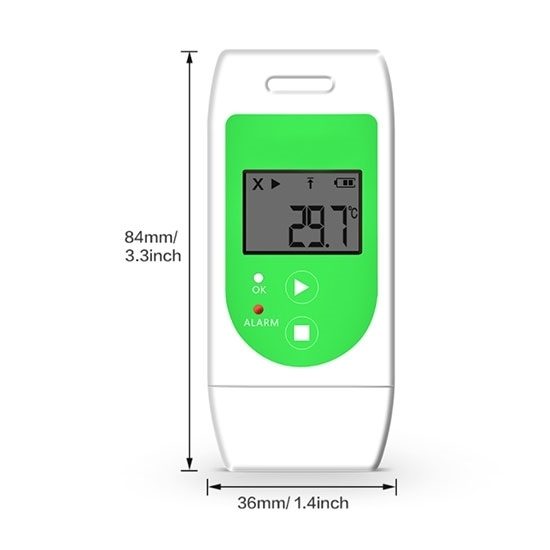

Demension	84mm * 36mm * 14mm
Net Weight	25g
