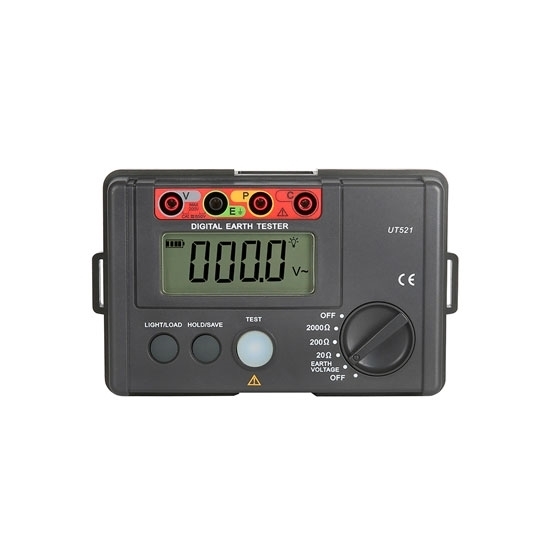

Digital Ground Resistance Tester, 0-2000Ω/4000Ω


$361.53
Digital earth ground tester is designed to measure the earth ground resistance, measuring range available with 0 to 2000 Ohm
SKU: CHN-GRT-UT521
Free Shipping Worldwide
Delivery date: 6-12 days

Digital ground resistance tester is capable of making precise 3-wire and simple 2-wire earth resistance measurement. The earth testing meter is applied for the earth resistance measurement of grounding systems of various power systems, electrical equipment, lightning protection equipment, etc., and also support AC ground voltage test. Light weight, rugged and portable, high reliability and affordable price.

Specification

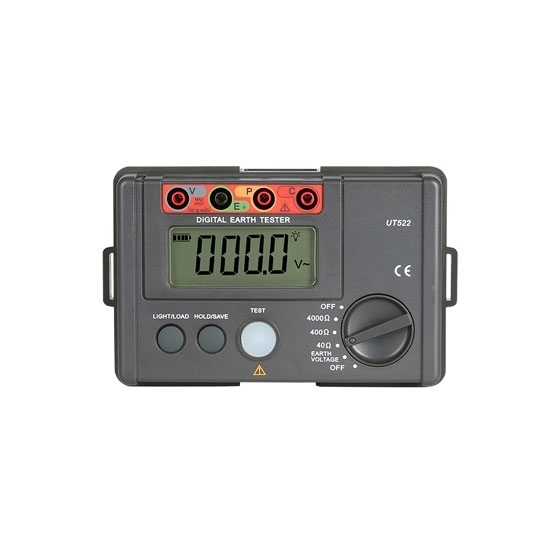

ModelCHN-GRT-UT521CHN-GRT-UT522
Earth Ground Resistance (Ω)0 ~ 20Ω±(2%+10)
0 ~ 200Ω±(2%+3)
0 ~ 2000Ω±(2%+3)
0 ~ 40Ω±(2%+20)
0 ~ 400Ω±(2%+3)
0 ~ 4000Ω±(2%+3)
AC Earth Voltage (V)0 ~ 200V±(1%+4)
0 ~ 400V±(1%+6)
Frequency50Hz/60Hz
FeaturesDisplay2000 counts4000 counts
Manual range
Auto power off
Low battery indication
Data hold
Data storage20 sets20 sets
LCD backlight
Full icon display
Double insulation protection
Poor contact displayDisplay "...Ω"Display "...Ω"
Over-range displayDisplay "OL"Display "OL"
Simple 2-wire testing
Precise 3-wire testing
GeneralPower supply1.5V battery (LR6) x 6
Display70.6mm x 34mm
Operating temperature0℃ ~ 40℃
Operating relative humidity≤80%RH (non-condensing)
Operating altitude≤2000m
Storage temperature-20℃ ~ 60℃
Storage relative humidity≤75%RH (non-condensing)
Product weight560g
Product size160mm x 100mm x 70.5mm

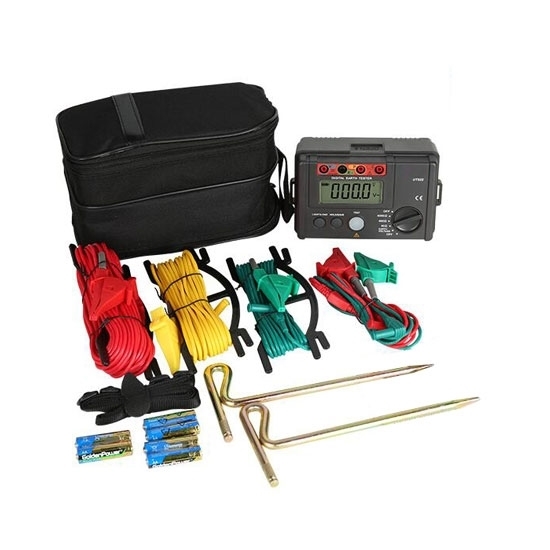

Accessories *Simple test leads with alligator clips, standard test leads with alligator clips, earth spike, batteries, carrying bag

Note: * Batteries are Not Included for air shippment.

Tips: Why do we need test the grounding system?

Good grounding is not only the guarantee for personal safety, but also to prevent plant and equipment from the damage. A good grounding system will improve the reliability of the equipment and reduce the possibility of damage caused by lightning or fault current.

Over time, high humidity, high salinity, and high temperature will change the properties of the soil, possibly increasing the corrosive proximity of the grounding rod and its connections. Thus, although the grounding system has a very low grounding resistance when initially installed, the resistance of the grounding system increases if the grounding rod is corroded. The ground resistance tester is a necessary troubleshooting tool to help you ensure the normal operation of the system. When a troublesome intermittent electrical fault occurs, the fault may be related to poor grounding or poor power quality. This is why it is strongly recommended that all grounding systems and grounding connections be inspected annually as part of predictive maintenance plans. If the measured resistance increases by more than 20% during regular inspection, the technician shall investigate the cause of the problem and reduce the resistance by replacing the grounding system or adding grounding rods to the grounding system.
