Home > Test & Measurement > Insulation Tester

Send Inquiry

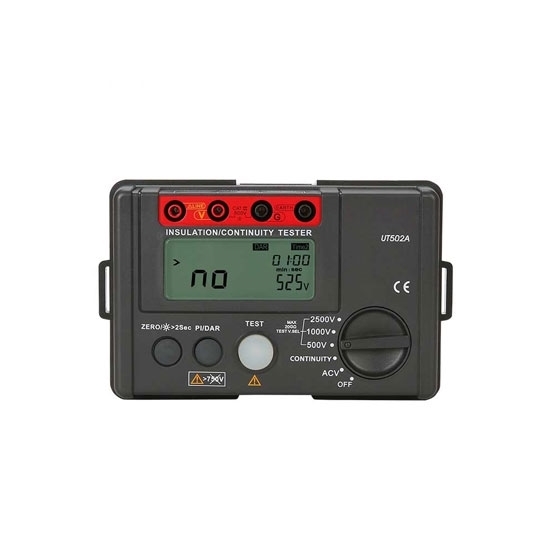

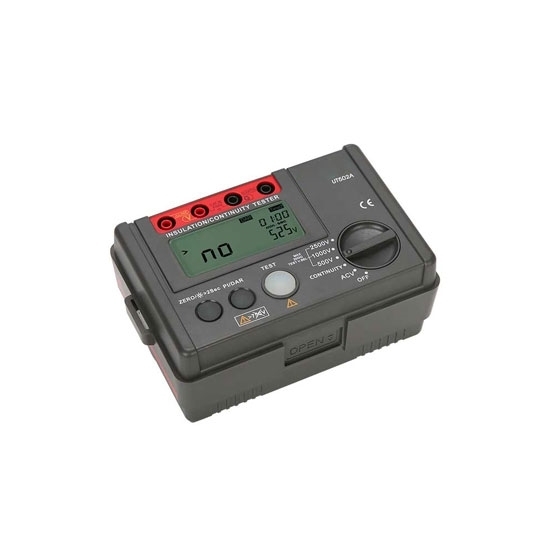

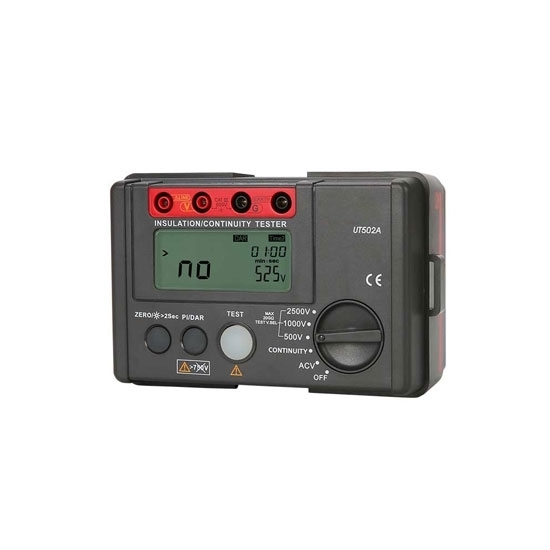

Insulation Resistance Tester, 500V/1000V/2500V

$295.46

Insulation resistance tester or Megohmmeter has selectable test voltages of 500V, 1kV and 2.5kV, and measuring insulation res

SKU: CHN-IRT-UT502A

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

The megger insulation resistance tester performs tests on voltages of 500V, 1000V and 2500V, and supports resistance measurement range up to 20.0 GΩ, an ideal tool for electric maintenance, testing and inspection. It can be used to measure the insulation resistance of electrical equipment and household appliances like transformers, electric motors, cables, switches, etc.

Specification

Model	CHN-IRT-UT502A
Insulation Resistance (Ω)	Test voltage/accuracy	500V/1000V/2500V		0% ~ 10%
	Measurement range/accuracy	500V	0.00 MΩ ~ 99.9 MΩ	±(3%+5)
			100 MΩ ~ 5.0 GΩ	±(5%+5)
		1000V	0.00 MΩ ~ 99.9 MΩ	±(3%+5)
			100 MΩ ~ 5.0 GΩ	±(5%+5)
		2500V	0.00 MΩ ~ 99.9 MΩ	±(3%+5)
			100 MΩ ~ 9.9 GΩ	±(5%+5)
			10.0 GΩ ~ 20.0 GΩ	±(10%+5)
	Load current	500V (R=500kΩ) 1mA		0% ~ 10%
		1000V (R=1MΩ) 1mA		0% ~ 10%
		2500V (R=1MΩ) 1mA		0% ~ 10%
	Short-circuit current			<2mA
Low Resistance (Ω)	Range/accuracy	0.01 Ω ~ 200 Ω (about 5.0V/>200mA)		±(2%+3)
AC Voltage (V)	Test range/accuracy	30V ~ 600V (50Hz/60Hz)		±(2%+3)
Features	Display	1999 count
	DAR (60s/15s and 60s/30s)	Yes
	PI	Yes
	Auto ranging	Yes
	Low battery indication	Yes
	LCD backlight	Yes
	Light alarm	Yes
	Buzzer alarm	Yes
	High voltage indication	Yes
	Over load indication	Yes
	Auto discharge	Yes
	Test voltage secondary display	Yes
	10 MΩ internal resistance test	Yes
General	Power supply	1.5V battery (LR6) x 6
	Display size	70.6mm x 34mm
	Working condition	0℃ ~ 35℃, ≤75%RH
	Altitude	≤2000m
	Storage condition	-20℃ ~ 60℃, ≤80%RH
	Product weight	500g
	Product size	150mm x 100mm x 71mm
	Standard accessories *	Batteries, test leads, alligator clips, gallus

Note: * Batteries are Not Included for air shippment.

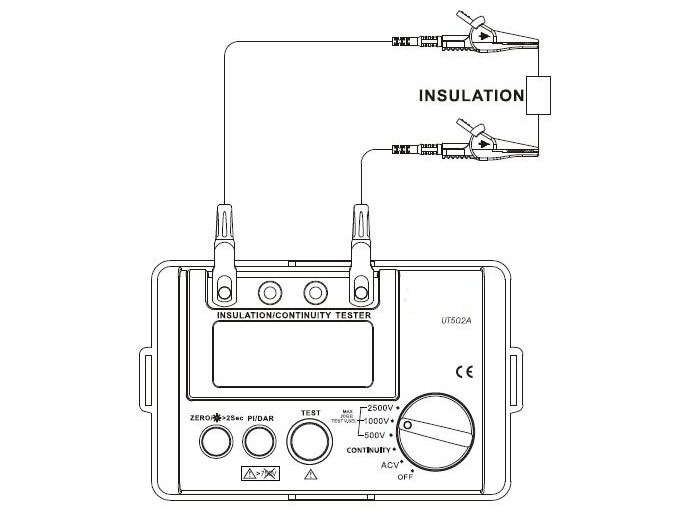

Insulation Resistance Test Wiring Diagram

Tips: What is insulation resistance?

Insulation resistance is the DC resistance of the insulation under the specified conditions, that is, the DC voltage is applied to the dielectric, after a certain period of polarization, the resistance corresponding to the leakage current flowing through the dielectric is called insulation resistance. It is the most basic insulation index of electrical equipment and electrical circuit.

Measurement of insulation resistance

The insulation resistance tester, also called Megohmeter or Megger, is used to measure the insulation resistance of electrical equipment and electrical circuit.

Connect the lines according to the Megohmmeter test method. The connection of the measuring wires to the device is more suitable for magnetic connector or clamp, and the connection point must be free of rust.
It is appropriate to use the measuring instrument for 500V / 500 MΩ Megger (where the error is not greater than 10%). Turn the handle of the insulation tester to reach the specified speed for 10 seconds. The stable indicated resistance value of the megohmmeter is the insulation resistance value of the insulation joint (flange), which is required to be greater than 10 megohm.

Factors affecting insulation resistance

Ambient temperature and humidity, the insulation resistance value of general materials decreases with the increase of ambient temperature and humidity.
Test time
Cable itself. When the cable is heated and damp, insulation material will be aging. The insulation resistance is reduced.
