Handheld Non-contact High Temperature Digital Infrared Thermometer

Close
Shopping Categories
Search

Handheld Non-contact High Temperature Digital Infrared Thermometer


$138.46
Low price industrial non-contact infrared thermometer / IR temperature gun for high temperature measurement has optinal sufac
SKU: CHN-ITHM-02
Free Shipping Worldwide
Delivery date: 6-12 days

Handheld non-touch infrared thermometers / IR temperature guns are suitable for accurate and rapid measurement of surface temperature of various objects which are high-temperature, toxic or difficult-to-contact. It features fast response time, high precision, contactless, easy to use, portable etc. It is widely used in high temperature fields such as chemical industry, metallurgy and forging.

Note: These industrial thermometers are NOT suitable for human and animal temperature measurements.

Specification

ModelCHN-GM1150CHN-GM1150ACHN-GM1350CHN-GM1650CHN-GM1651
Temperature Range-50℃~1150℃
(-58℉~2102℉)
-18℃~1150℃
(0℉~2102℉)
-18℃~1350℃
(0℉~2462℉)
200℃~1650℃
(392℉~3002℉)
-30℃~1650℃
(-22℉~3002℉)
Accuracy±1.5℃ or ±1.5% of reading, whichever is greater
Repeatability±1℃ or ±1% of reading
Distance to Spot Ratio20:150:150:150:150:1
Emissivity0.1~1.00 adjustable0.1~1.00 adjustable0.1~1.00 adjustable0.1~1.00 adjustable0.1~1.00 adjustable
Resolution0.1℃0.1℃0.1℃0.1℃0.1℃
Response Time1.5s (95%)500ms (95%)500ms (95%)500ms (95%)0.5s ~ 0.8s (95%)
Wavelength8-14μm8-14μm8-14μm8-14μm8-14μm
Functions
  • MAX/MIN/AVG/DIF reading
  • High/Low Temperature Alarm setup
  • Data Store/Recall function
  • ℃/℉ selection
  • Data Hold function
  • Laser Target Pointer selection
  • Backlight ON/OFF selection
  • Auto Power Shut Off
  • Low Power indication
Operating Temperature0℃~40℃ (32℉~104℉)
Operating Humidity10% ~ 90% RH non-condensing
Storage Temperature-20℃ ~ +60℃ (-4℉~140℉), (without battery)
Power Supply *9V battery (Not included)
Weight312g
Dimension200*155*60mm

Note: * Batteries are Not Included for air shippment.

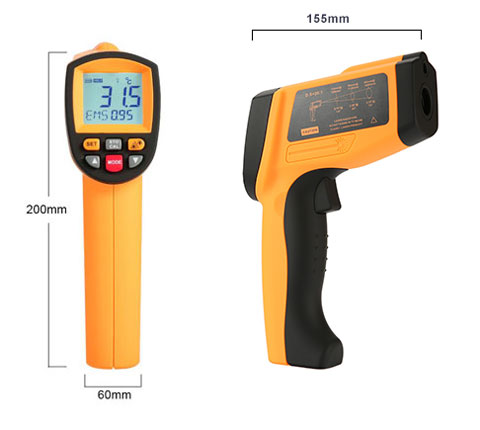

Dimension
High temperature infrared ir thermometer dimension

Tips: Difference between non-contact infrared thermometers and contact thermometers

Non-contact infrared thermometer:

  • Non-contact infrared thermometer/temperature gun makes no difference on the measured object.
  • Contactless IR thermometer can only detect the surface temperature of the object.
  • With fast response, non-contact infrared thermometer can measure the temperature of objects in motion and transient temperature.
  • Wide range of measurement, high measurement accuracy and small resolution.
  • Non-touch infrared thermometer can measure the temperature of a small area.
  • It can simultaneously measure temperature at points, lines, and surfaces.
  • Non-contact infrared thermometer not only can measure absolute temperature, but also can measure the relative temperature.

Contact thermometer:

  • Contact temperature measurement has an effect on the temperature field of the measured object.
  • It is not suitable for measuring transient temperature and the temperature of objects in motion.
  • The measuring range of contact thermometer is not wide enough to the one of non-contact IR thermometer, and contact thermometer uses more materials.
  • It is not suitable for toxic, high pressure and other dangerous occasions.
