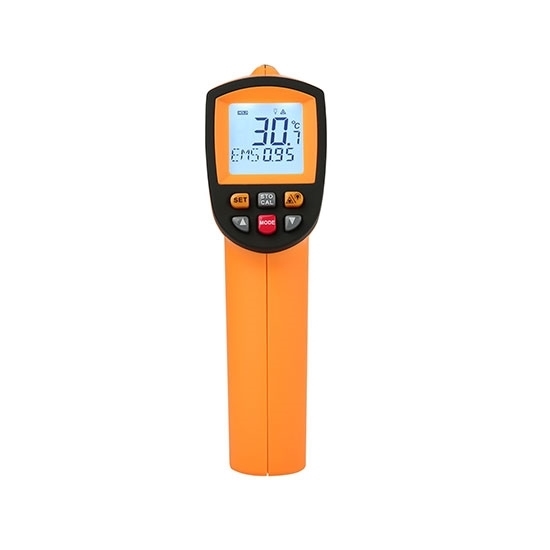

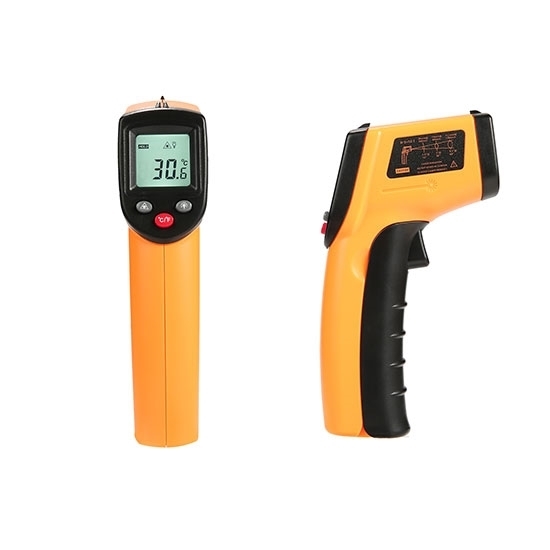

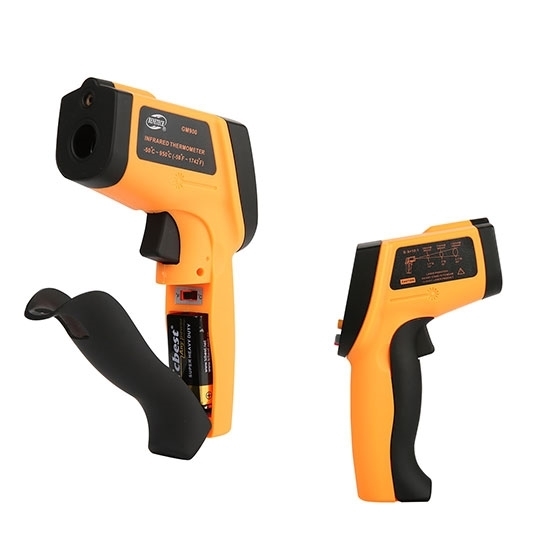

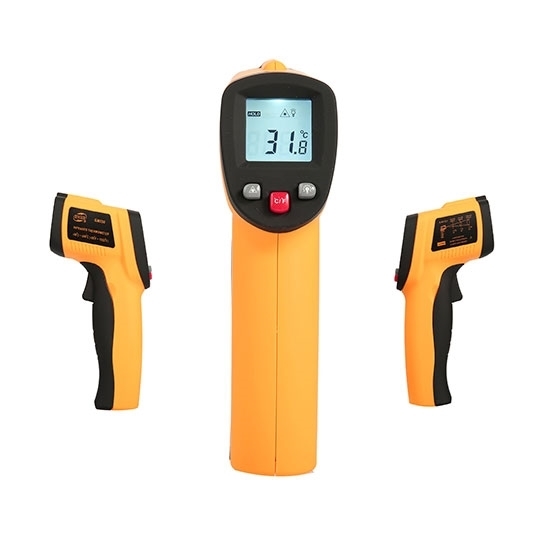

Handheld Non-contact Digital Infrared Thermometer


$39.83
Cheap handheld digital infrared thermometer/ laser temperature gun offers accurate and fast surface temperature measurement r
SKU: CHN-ITHM-01
Free Shipping Worldwide
Delivery date: 6-12 days

Digital IR infrared thermometers are widely used to measure the surface temperature of hot water pipes, hot engine parts, cooking surfaces, hot tubes & insulation, electrical connection and so on. The laser temperature guns have a wide range of applications from home to industrial fields with low price yet high precision, easy to carry and use.

Specification

Note: These products are NOT suitable for human and animal body temperature measurements.

ModelCHN-GM320CHN-GM550CHN-GM700CHN-GM900
Temperature Range-50℃~380℃
(-58℉~ 716℉)
-50℃~550℃
(-58℉~1022℉)
-50℃~700℃
(-58℉~1292℉)
-50℃~900℃
(-58℉~1652℉)
Accuracy±1.5℃ or ±1.5% of reading, whichever is greater
Repeatability±1% of reading or ±1℃
Distance to Spot Ratio12:1
Emissivity0.95 (preset)0.1 ~ 1.00 (adjustable)
Resolution0.1℃/℉
Response Time500ms (95%)
Wavelength8-14μm
FunctionsMAX/MIN/AVG/DIF readingN/AN/AYY
℃/℉ selectionYYYY
Data Hold functionYYYY
Laser Target Pointer selectionYYYY
Backlight ON/OFF selectionYYYY
High/Low Temperature Alarm setupN/AN/AYY
Data Store/Recall functionN/AN/AYY
Auto Power Shut OffYYYY
Low Power indicationN/AN/AYY
Power Supply * (Battery Not Included)2*1.5V AAA battery9V battery9V battery9V battery
Weight116g148g220g220g
Dimension144.5*38*93mm153*43*101mm175*100*49mm175*100*49mm
Operating Temperature0℃ ~ 40℃ (32℉ ~ 104℉)
Operating Humidity10% ~ 90% RH, non-condensing
Storage Temperature-20℃ ~ +60℃ (-4℉ ~ 140℉), (without battery)

Note: * Batteries are Not Included for air shippment.

Five Tips for Using Infrared Thermometer

1. Infrared thermometer can only measure the surface temperature of the objects, yet it cannot measure the inner temperature.

2. Wavelengths above 5μm cannot be measured through quartz glass. The glass has special reflection and transmission characteristics, so the IR temperature reading would be not really accurate. However, temperature can be measured through the infrared window. Infrared thermometers are best not to measure the temperature of polished metal surfaces like stainless steel, aluminum, etc.

3. Position the hot spot. To find the hot spot, the IR thermometer first aims at the target, and then scans the target up and down until confirming the hot spot.

4. Pay attention to environmental conditions such as steam, dust, smoke and so on. It blocks the thermometer's optical system and affects the accuracy of temperature measurement.

5. Ambient temperature should also be taken into account. If the IR thermometer is suddenly exposed to the environment with an ambient temperature difference of 20°C or higher, the instrument shall be allowed to adjust to a new ambient temperature within 20 minutes.
