Model	CHN-AS-120O
Hardness Scale	Type O
Hardness Value	Below 20 DO
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R1.2 spherical radius
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	soft rubber
	thermoplastic elastomers
	very soft plastics and thermoplastics
	medium-density textile windings

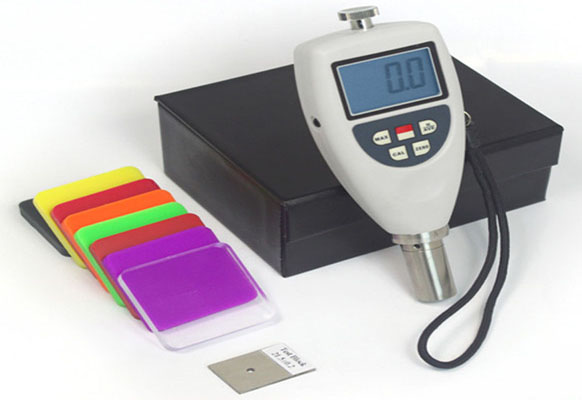

Standard Accessories	Main unit
	Test block

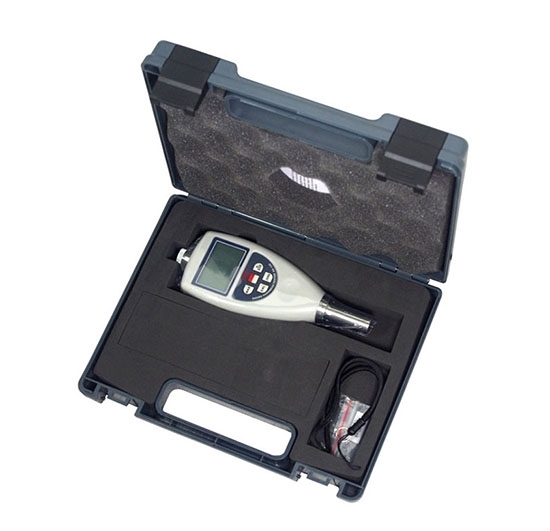

	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output

Digital Shore O Hardness Durometer, 20 DO, 10~90H

Digital Shore OO Hardness Durometer, 20 O, 10~90H

Digital Shore O Hardness Durometer, 20 DO, 10~90H

Digital Shore E Hardness Durometer, 90 DO~20 A, 10~90H

Digital Shore DO Hardness Tester, 90 C~20 D, 10~90H

Digital Shore D Hardness Tester, 90 A, 10~90H
