Low price scale DO shore hardness tester with digital display. Hardness value 90 C to 20 D, testing range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H. The type DO shore durometer measures materials with DO rating hardness, such as moderately hard rubber, thermoplastic elastomers, and very dense textile windings.
Specification
| Model | CHN-AS-120DO |
| Hardness Scale | Type DO |
| Hardness Value | 90 C ~ 20 D (above 90 C, below 20 D) |
| Measurement Range | 10~90H |
| Accuracy | ≤ ± 1H |
| Resolution | 0.1H |
| Display Range | 0~100H |
| Case | High impact resistance ABS |
| Operating Temperature | 0~40℃ |
| Power Supply | 2 x 1.5V AAA Um-4 Battery |
| Indenter | R1.2 spherical radius |
| Dimension | 170 x 63 x 24 mm |
| Weight | 310 g (Not including batteries) |
| Applicable Materials | moderately hard rubber |
| thermoplastic elastomers |
| very dense textile windings |

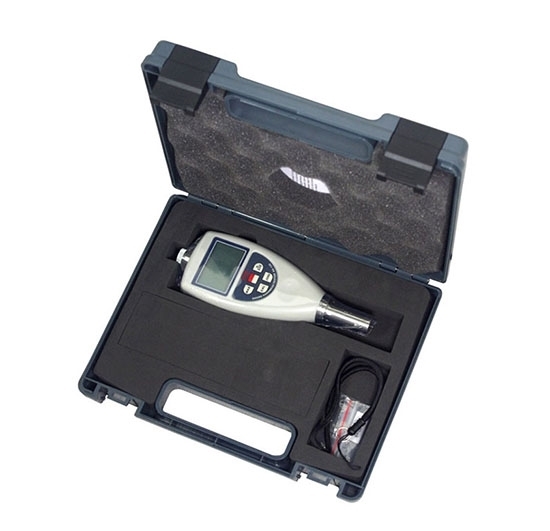

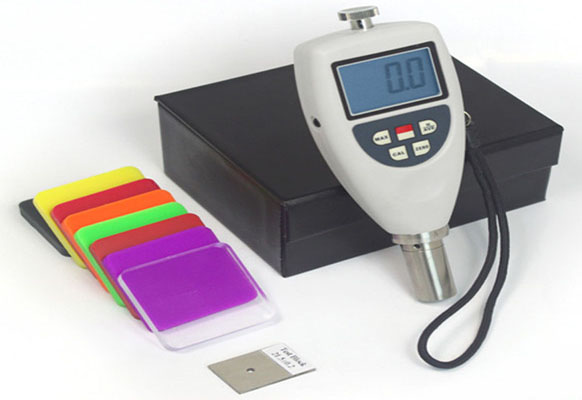

Accessories
| Standard Accessories | Main unit |
| Test block |
| Carrying Case |
| Operation manual |
| Optional Accessories* | USB data output |
| Bluetooth data output |
*Note: If you need USB/Bluetooth output, please contact us.

Features
- Shore DO hardness tester has an integrated design, small size, light weight, simple structure, easy to use, and intuitive reading.
- Scale DO Shore hardness durometer has low battery alarm indication and average value calculation function.
- The Shore rating DO hardness tester has automatic shutdown and manual shutdown functions.
- Shore type DO hardness durometer supports USB data transfer and can be connected to a PC. It also supports Bluetooth data output. These two items are optional, please contact us if you need them.
Type DO digital shore hardness tester for sale online. Hardness value 90 C to 20 D, testing range 10~90 H, accuracy ≤ ± 1H, resolution 0.1H, indenter R1.2 spherical radius. Shore hardness durometer rating in scale DO, testing materials moderately hard rubber, thermoplastic elastomers, and very dense textile windings. Portable, economical price.
