Model	CHN-AS-120C
Hardness Scale	Type C
Hardness Value	90 B ~ 20 D (above 90 B, below 20 D)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	0.79 Truncated (frustum) cone
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	medium-hard rubber
	thermoplastic elastomers
	medium-hard plastics and thermoplastics

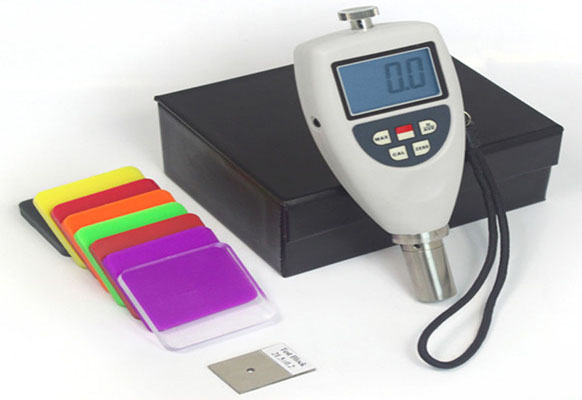

Standard Accessories	Main unit
	Test block

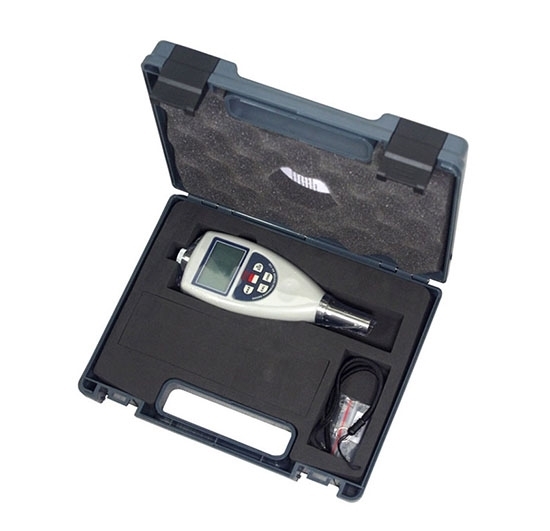

	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output
