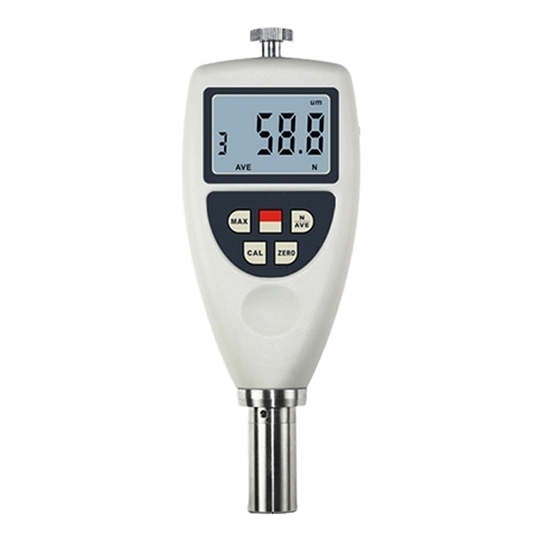

Model	CHN-AS-120B
Hardness Scale	Type B
Hardness Value	90 A ~ 20 D (above 90 A, below 20D)
Measurement Range	10~90H
Accuracy	≤ ± 1H
Resolution	0.1H
Display Range	0~100H
Case	High impact resistance ABS
Operating Temperature	0~40℃
Power Supply	2 x 1.5V AAA Um-4 Battery
Indenter	R0.1 Cone
Dimension	170 x 63 x 24 mm
Weight	310 g (Not including batteries)
Applicable Materials	moderately hard rubber
	thermoplastic elastomers
	paper products
	fibrous materials

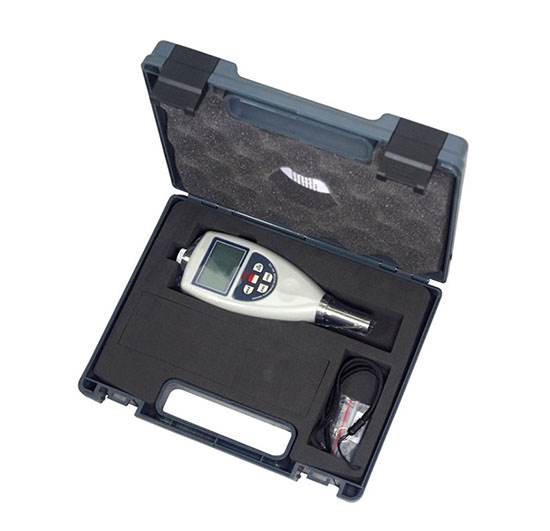

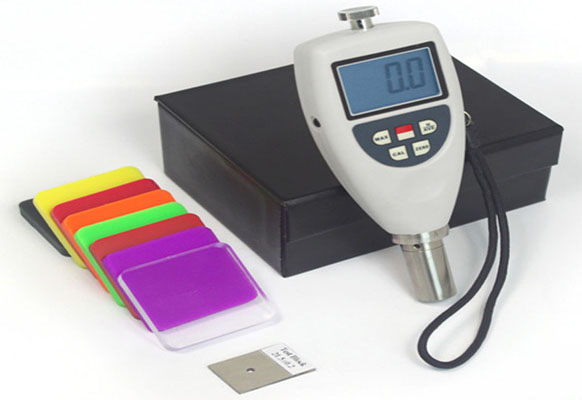

Standard Accessories	Main unit
	Test block
	Carrying Case
	Operation manual
Optional Accessories*	USB data output
Optional Accessories*	Bluetooth data output
