Model	CHN-CDTYM-TDS210-B
Shipping weight	1.5kg
Dimension	9696132mm (HWD), with hole size 92.5*92.5mm

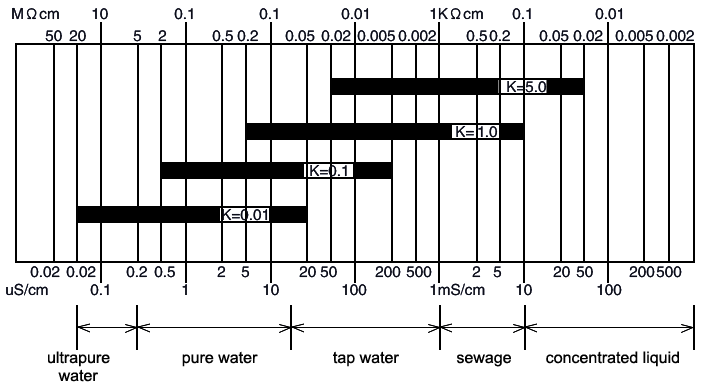

Measuring range *	Conductivity electrode (K=0.01): 1.00~20.00μs/cm Conductivity electrode (K=0.1): 1.0~200.0μs/cm Conductivity electrode (K=1.0): 2~2000μs/cm Conductivity electrode (K=10.0): 20~20000μs/cm (0.02~20ms/cm)
Accuracy	±1%FS
Stability	±1%FS/24h
Temperature compensation	-10~+130℃ (14~266℉) manual/automatic
Electrode built-in sensor	PT1000, accuracy: ±0.5℃
Display	2.4" LCD display
Output signal	2 relay outputs with capacity 250VAC/3A 4-20mA analog output RS485 output with standard MODBUS-RTU
Power supply	220VAC±10%, 50/60Hz

Electrode constant	Electrode material	Length below thread	Diameter	Diameter of measuring hole	Thread	Lead wire length
K=0.01	316 stainless steel	63mm	13mm	6mm	G3/4	10m
K=0.1	316 stainless steel	61mm	13mm	6mm	G3/4
K=1.0	316 stainless steel	61mm	13mm	6mm	G3/4
K=10.0	Polysulfone	69.5mm	23.3mm	6mm	3/4NPT
