Basics	Model	CHN-MSD-WA1000
	Measuring range	0~1000 mm
	Shipping weight	5.5 kg
	Length	1148.3 mm
	Width	97 mm
Technical parameters	Linearity	≤0.03%FS (minimum±50μm)
	Repeatability	≤0. 001%FS
	Working Voltage	24VDC±10%
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0-5V / 0-10v / 4-20mA
	Temperature	- 40℃～+85℃
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (special custom-made)
	Electronic bin material	304 or 316L stainless steel (special custom-made)

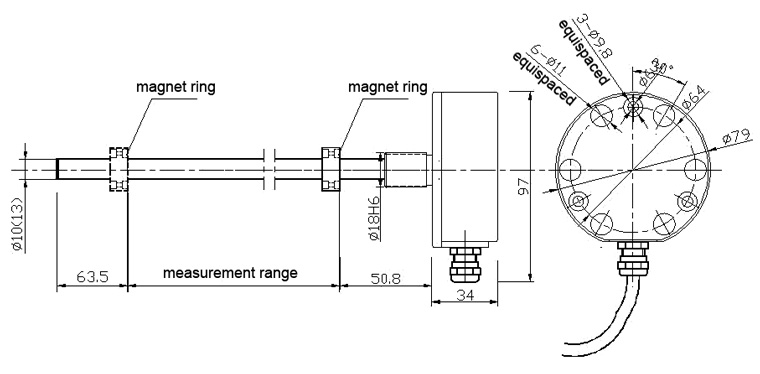

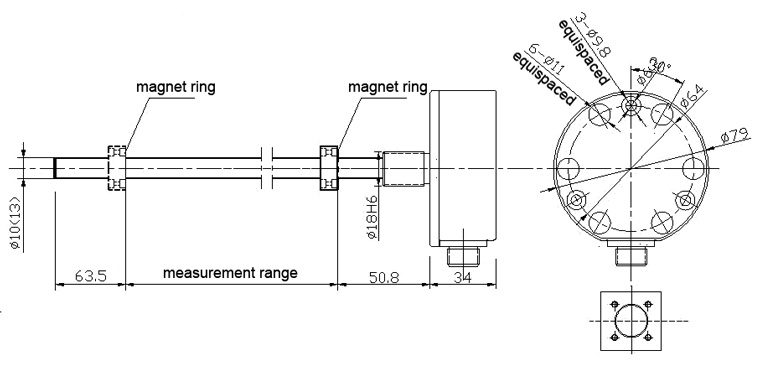

	Type of lead wire	PG7 connection (waterproof joint); Aviation plug
	Protection Class	IP68 (waterproof joint), IP67 (aviation plug)
	Installation method	Six M6X16
	effective travel in this series (customizable)	50-5000mm
