Magnetostrictive linear displacement sensor with measuring range 2000mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive measurement sensors have effective travel 50mm~35000mm, can be widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

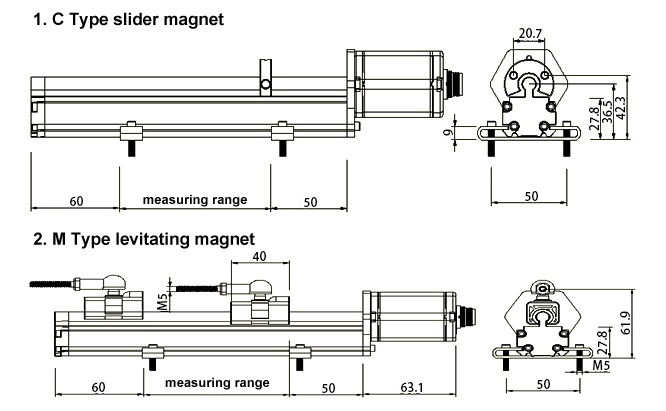

Dimensional drawing (unit: mm):

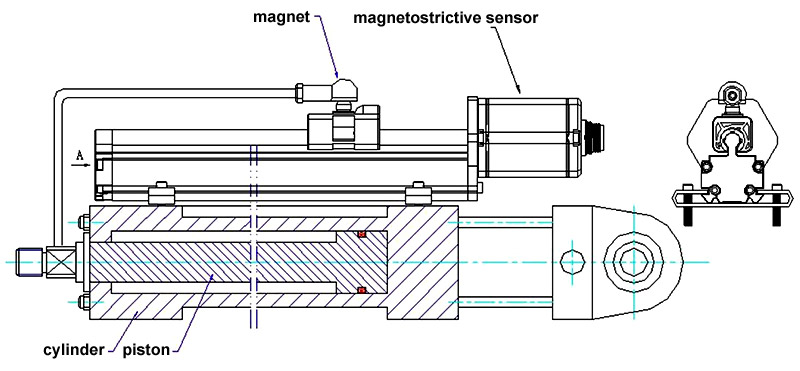

Installation diagram:

Tips: Magnetostrictive linear displacement sensor apply in rolling machine
Rolling machine drives upper roller through vertical lifting movement of oil cylinder. With the aid of upper roller pressing down and rotating movement of lower roller, make metal sheet has multi-pass continuous bending, and generates permanent molding deformation, and roll to required cylinder and taper cylinder. But pressing down position is big or small should be fed up to PLC through a linear displacement sensor, then to achieve oil cylinder control. This linear displacement sensor is the key for processing accuracy of plate material. Measurement type and appearance of magnetostrictive sensor decide it's more suitable for rolling machine performance improving.
