Magnetostrictive Displacement Measurement Sensor 500mm

Magnetostrictive linear displacement sensor with measuring range 500mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

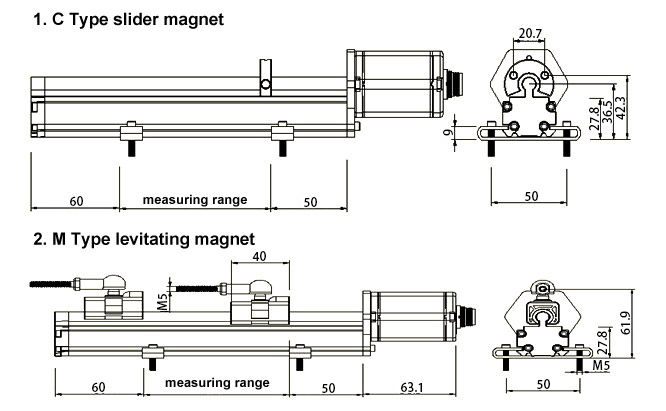

Dimensional drawing (unit: mm):

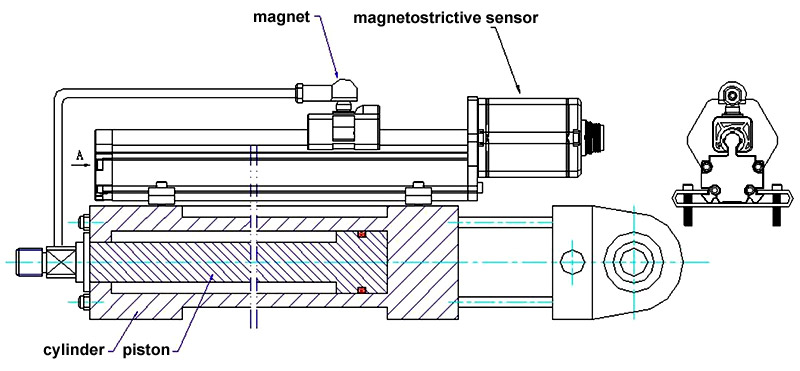

Installation diagram:

Tips: Application of magnetostrictive sensors

1. Detect the position of servo cylinder piston.
2. Detect the position of lapping machine.
3. Detect the position of forging machine (obtain stable performance in speed control system).
4. Detect the position of other machines such as gantry machine (equilibrium of goal post).
5. Detect the position of injection machine.
6. Adjustment of railway and bridge (detect displacement of guide rail, control opening, lifting and closing of bridge).
7. Detect the position of of wood machinery.
8. Geodetic measurement system (detecting geological disasters such as earthquake and landslide, etc.).
9. Detecting displacement of port facilities (not detecting outdoors, large strokes and other types).
