Thermocouple, R type, Assembly


$1031.92
R type thermocouple assembles with protection head and corundum thermowell, should use wooden case for packing. Its thermo wi
SKU: CHN-TC-RA
Free Shipping Worldwide
Delivery date: 6-12 days

As a temperature sensor, thermocouple assembly is usually used with display instruments, recording instruments and signal conditioners.

Specification:
1. Thermocouple temperature range chart

CategoryType of sensing elementRelationship between wire diameter and temperature
Thermo wire diameter (mm)Long-term temperature (℃)Short-tem temperature (℃)
Platinum Rhodium 30 - Platinum Rhodium 6B typeΦ0.516001800
Platinum Rhodium 13 - PlatinumR typeΦ0.513001600
Platinum Rhodium 10 - PlatinumS typeΦ0.513001600
Nickel chromium silicon - Nickel silicon magnesiumN typeΦ0.3700800
Φ0.5800900
Φ0.8, Φ1.09001000
Φ1.2, Φ1.610001100
Φ2.0, Φ2.511001200
Φ3.212001300
Nickel chromium - Nickel siliconK typeΦ0.3700800
Φ0.5800900
Φ0.8, Φ1.09001000
Φ1.2, Φ1.610001100
Φ2.0, Φ2.511001200
Φ3.212001300
Nickel chromium - Copper nickelE typeΦ0.3350450
Φ0.5450550
Φ0.8, Φ1.0550650
Φ1.2, Φ1.6650750
Φ2.0, Φ2.5750900
Iron - ConstantanJ typeΦ0.3, Φ0.5300400
Φ0.8, Φ1.0400500
Φ1.2, Φ1.6500600
Φ2.0, Φ2.5600750
Copper - Copper nickelT typeΦ0.2150200
Φ0.3, Φ0.5200250
Φ1.0250300
Φ1.6350400

2. Thermowell application temperature range chart

Thermowell materialLong-term temperatureShort-term temperature
Corundum CT116001800
High alumina CT213001600
Nickel base wrought superalloys 3YC5213001350
Nickel base wrought superalloys GH303912501320
Nickel base superalloys GH303012001250
Heat resistant stainless steel 2Cr25Ni2012001250
Silicon carbide11001150
Stainless steel 316L900950
Stainless steel 1Cr18Ni9Ti800900

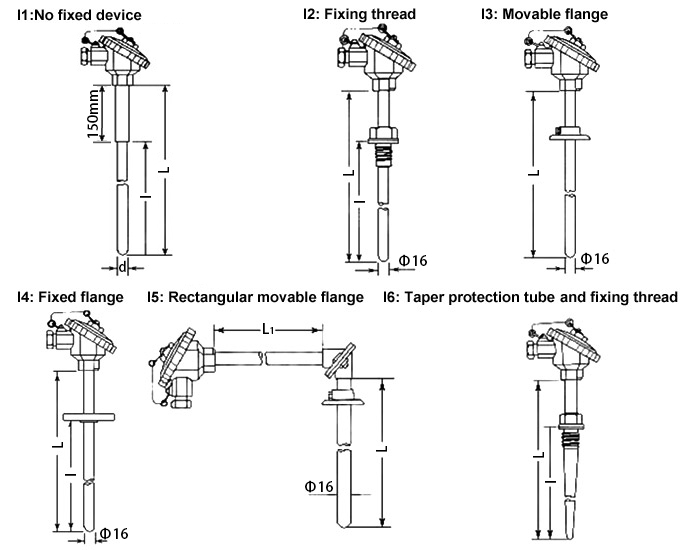

3. Thermowell installing form (unit: mm)
R type thermocouple installing form
4. Selection chart

Total length of thermowell (L or L*L1)Branch numberThermowell installing formProtection head formDiameter and material of thermowell
300~2150mm (for I1, I2, I3, I4);
500*500mm, 750*500mm, 750*750mm (for I5);
225~450mm (for I6)
B1: Single branch;
B2: Double branch
I0: No thermowell;
I1: No fixed device;
I2: Fixing thread;
I3: Movable flange;
I4: Fixed flange;
I5: Rectangular movable flange;
I6: Taper thermowell and fixing thread
C1: No protection head;
C2: All stainless steel protection head;
C3: Waterproof protection head;
C4: Explosion-proof protection head
D0: Φ16mm;
D1: Φ25mm, double-deck;
D2: Φ16mm high quality aluminum;
D3: Φ20mm high quality aluminum

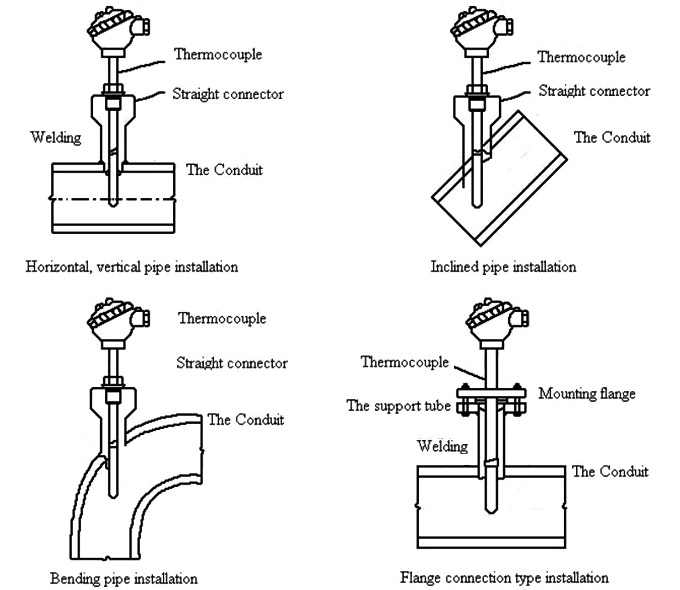

5. Thermocouple assembly installation diagram
Thermocouple assembly installation diagram
Tips: Thermocouple assembly installation

  1. On the conduit, the temperature-sensing element should form countercurrent with the measured medium, at least 90 degree angle to the medium measured.
  2. No matter measuring the temperature of any medium, the temperature-sensing element should be placed in the point that needs to be measured. If it is in conduit, the temperature-sensing element should be placed at the point of highest flow velocity. That is, the welding points of thermocouple temperature-sensing element should be placed at the maximum flow velocity.
  3. There should be enough insertion length. The experiment shows that the measurement error of thermocouple is reduced with the increase of the insertion length. If condition permits, the insertion length should be increased as far as possible to ensure the accuracy of the measurement.
  4. The protection head should be placed upwards and the outlet bolts of the protection head should be placed downwards during installation, in order to prevent liquid immersed in thermocouple protection head. Don't let the protection head of thermocouples place in a position of high temperature and harmful atmosphere. If it is unavoidable, rectangular structure thermocouple can be used.
