As a temperature sensor, thermocouple assembly is usually used with display instruments, recording instruments and signal conditioners.
Specification:
1. Thermocouple temperature range chart
Category | Type of sensing element | Relationship between wire diameter and temperature |
Thermo wire diameter (mm) | Long-term temperature (℃) | Short-tem temperature (℃) |
Platinum Rhodium 30 - Platinum Rhodium 6 | B type | Φ0.5 | 1600 | 1800 |
Platinum Rhodium 13 - Platinum | R type | Φ0.5 | 1300 | 1600 |
Platinum Rhodium 10 - Platinum | S type | Φ0.5 | 1300 | 1600 |
Nickel chromium silicon - Nickel silicon magnesium | N type | Φ0.3 | 700 | 800 |
Φ0.5 | 800 | 900 |
Φ0.8, Φ1.0 | 900 | 1000 |
Φ1.2, Φ1.6 | 1000 | 1100 |
Φ2.0, Φ2.5 | 1100 | 1200 |
Φ3.2 | 1200 | 1300 |
Nickel chromium - Nickel silicon | K type | Φ0.3 | 700 | 800 |
Φ0.5 | 800 | 900 |
Φ0.8, Φ1.0 | 900 | 1000 |
Φ1.2, Φ1.6 | 1000 | 1100 |
Φ2.0, Φ2.5 | 1100 | 1200 |
Φ3.2 | 1200 | 1300 |
Nickel chromium - Copper nickel | E type | Φ0.3 | 350 | 450 |
Φ0.5 | 450 | 550 |
Φ0.8, Φ1.0 | 550 | 650 |
Φ1.2, Φ1.6 | 650 | 750 |
Φ2.0, Φ2.5 | 750 | 900 |
Iron - Constantan | J type | Φ0.3, Φ0.5 | 300 | 400 |
Φ0.8, Φ1.0 | 400 | 500 |
Φ1.2, Φ1.6 | 500 | 600 |
Φ2.0, Φ2.5 | 600 | 750 |
Copper - Copper nickel | T type | Φ0.2 | 150 | 200 |
Φ0.3, Φ0.5 | 200 | 250 |
Φ1.0 | 250 | 300 |
Φ1.6 | 350 | 400 |
2. Thermowell application temperature range chart
Thermowell material | Long-term temperature | Short-term temperature |
Corundum CT1 | 1600 | 1800 |
High alumina CT2 | 1300 | 1600 |
Nickel base wrought superalloys 3YC52 | 1300 | 1350 |
Nickel base wrought superalloys GH3039 | 1250 | 1320 |
Nickel base superalloys GH3030 | 1200 | 1250 |
Heat resistant stainless steel 2Cr25Ni20 | 1200 | 1250 |
Silicon carbide | 1100 | 1150 |
Stainless steel 316L | 900 | 950 |
Stainless steel 1Cr18Ni9Ti | 800 | 900 |

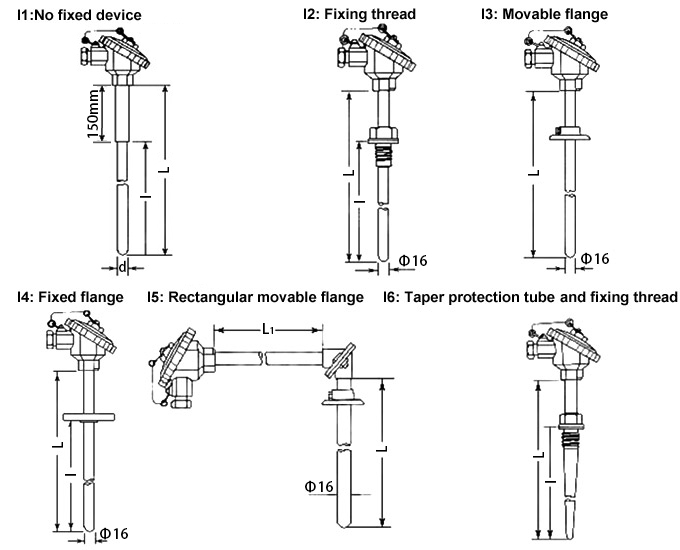

3. Thermowell installing form (unit: mm)

4. Selection chart
Total length of thermowell (L or L*L1) | Branch number | Thermowell installing form | Protection head form | Diameter and material of thermowell |
300~2150mm (for I1, I2, I3, I4); 500*500mm, 750*500mm, 750*750mm (for I5); 225~450mm (for I6) | B1: Single branch; B2: Double branch | I0: No thermowell; I1: No fixed device; I2: Fixing thread; I3: Movable flange; I4: Fixed flange; I5: Rectangular movable flange; I6: Taper thermowell and fixing thread | C1: No protection head; C2: All stainless steel protection head; C3: Waterproof protection head; C4: Explosion-proof protection head | D0: Φ16mm; D1: Φ25mm, double-deck; D2: Φ16mm high quality aluminum; D3: Φ20mm high quality aluminum |

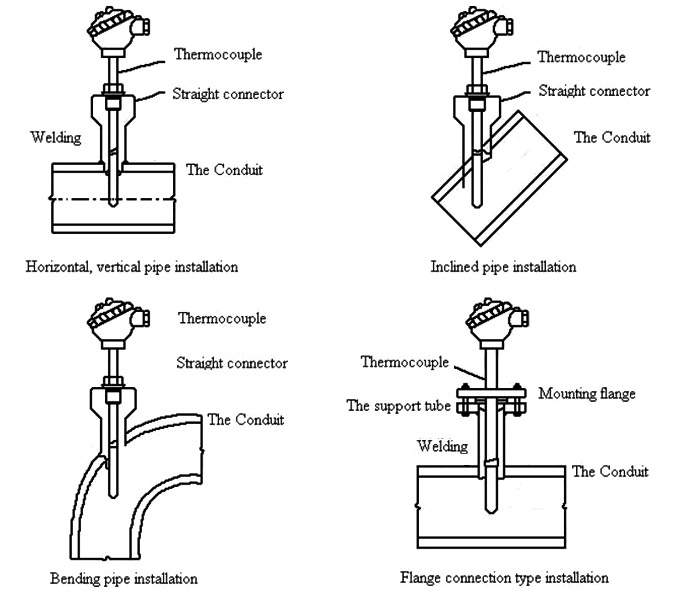

5. Thermocouple assembly installation diagram

Tips: Insulating bush of thermocouple
There must have favorable insulation between two pieces of thermode. And the insulating bush is just used to prevent short circuit of the two pieces of thermode. Various insulating materials have their own limitations, thus they must be selected according to temperature measurement and characteristics of insulating materials. For the convenience of usage, insulating materials are often made into round or oval shape tubular insulating bush, and structures include single-hole, double hole, four-hole and other specifications.
B type thermocouple assembles with protection head and corundum thermowell, should use wooden case for packing. Its thermo wire diameter is Ф0.5mm. B type thermocouple has the best performence and longest life. It can directly measure the temperature in the range of 0~1600 ℃ in various production processes.
