Capacitive proximity sensor with M12*1 thread, PNP type output, manufacturer direct sale.

Functions:

• Red LED checks the state of proximity sensor

• High repeated positioning accuracy

• High switching frequency

• Wide voltage range

• Antivibration, dust, water and oil prevention

• Reverse power protection, short circuit protection, directly connecting with PLC

Specification:

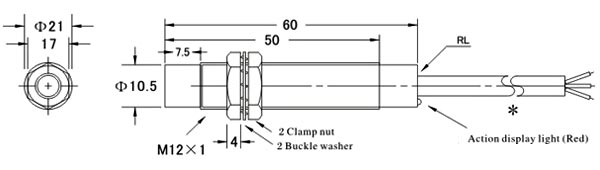

Dimensional drawing (unit: mm):

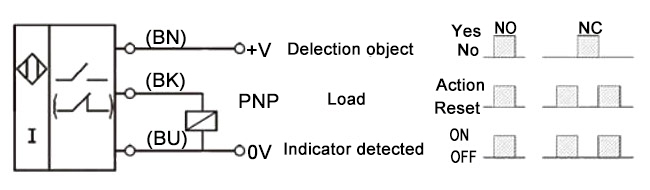

Wiring diagram:


Tips: Problems of proximity sensor's indicator light
Indicator light has a signal prompt without signal output, or signal light is on without signal changes, or indicator light keeps blinking. All indicate that there is an abnormal condition or bad phenomenon. The reasons are as follows:

1. Sensor and device wiring error, working voltage error, equipment short circuit and others lead to damages and breakdown caused by the burning of circuit inside sensor
2. Poor connection or unstable short circuit that occurs in the device circuit makes non-destructive damages inside the sensor.
3. There is no protection function in sensor itself. Because connection error or short circuit directly makes the sensor not available.
