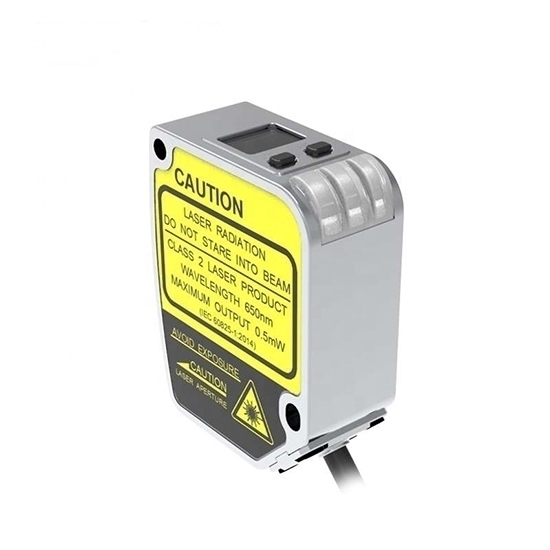

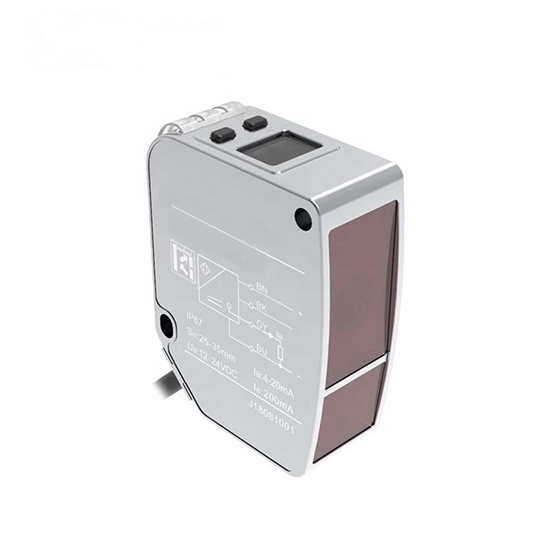

Features

• Exquisite appearance and light aluminum housing, easy to mount and dismount.
• Convenient operation panel with visualized OLED display to complete all function settings fastly.
• Small diameter light spot to accurately measure very tiny objects.
• Key or remote teach-in to easily set response time for different applications.
• Powerful function setting and flexible output way.
• Complete shielded desgin, stronger anti-interference perfomance.
• IP67 protection degree, able to work in water or dusty environment.

Specification

Remark:

①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90％ white card.
②The statistical data follows the 3σ criteria
③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results.
④Slave address,baud rate setting only for RS-485 series.
⑤Protecion circuit only for switch output.

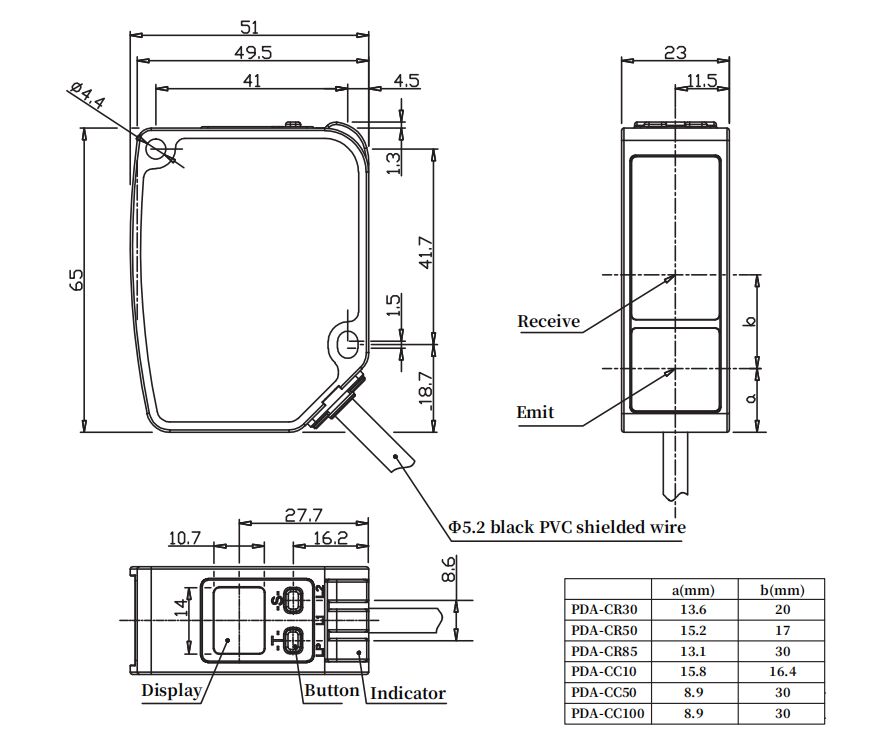

Dimension (unit=mm)

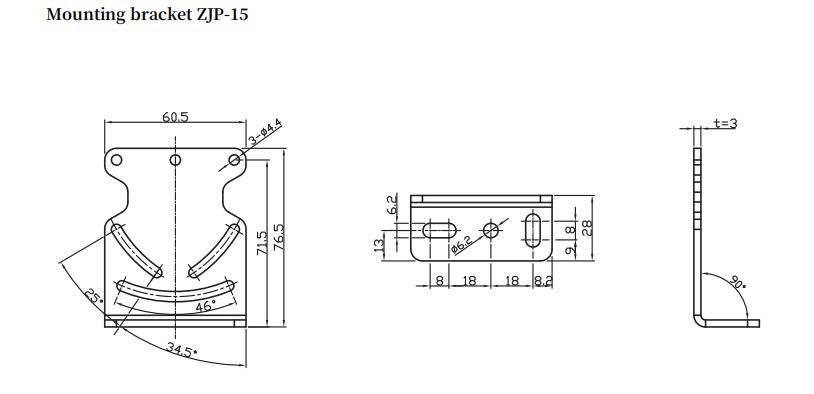

Accessory Dimension

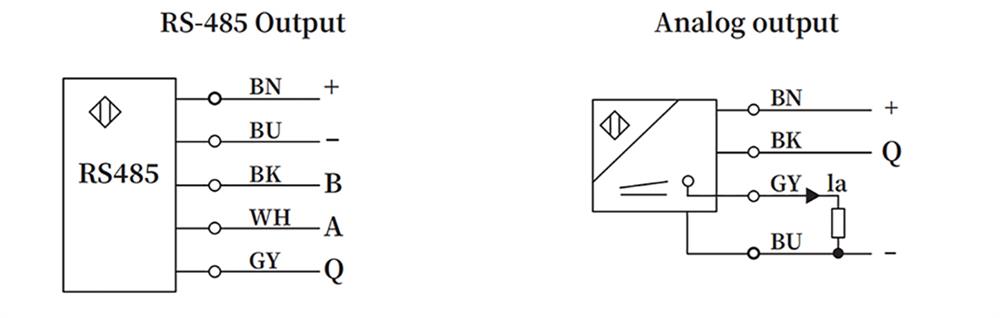

Wiring diagram

Remark:
The sensors are equipped with shielded cables, Q is the switch output.
RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
Analog output: The gray line Ia cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

Installation of laser distance sensor

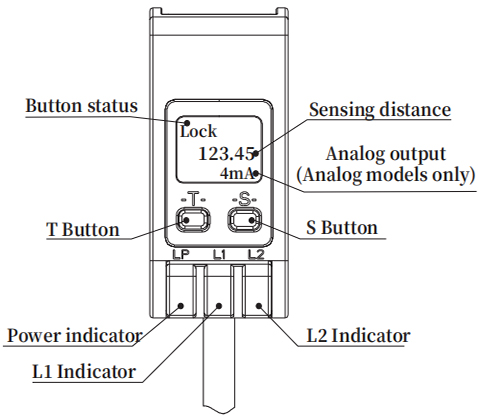

Tips: Panel Introduction of Laser Distance Sensor.

1. Button
Used to set the switch output logic of the sensor,operating point,reset,unlock,address,baud rate query,data filtering and analog.

2. Indicator
Used to power indicator,sensing indication,alarm indicator.

3.Display
Used to display key status,current measured value,current output value,current setting status, setting menu.
